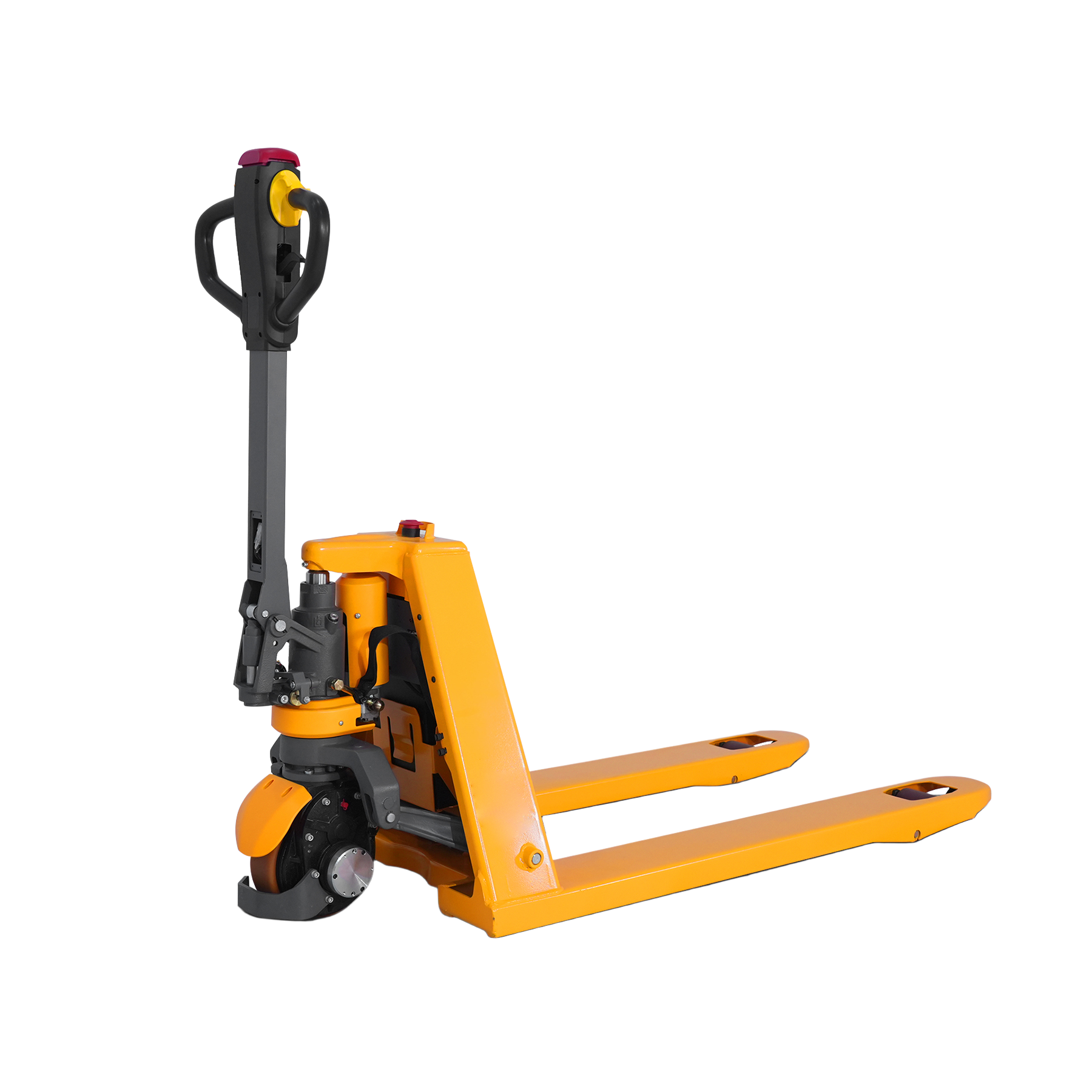

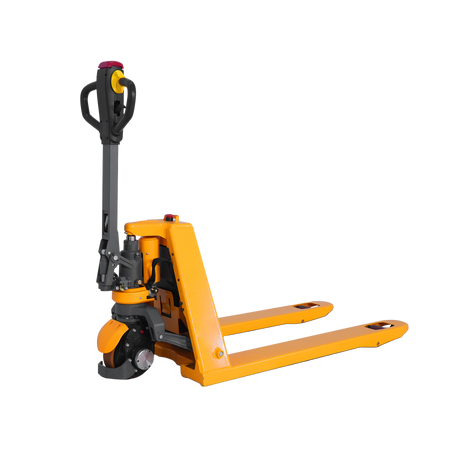

3300lbs Electric Pallet Truck

Name: 3300lbs Electric Pallet Truck
Brand: Xilin
SKU: PJ-E33
Price: 2068.0 CAD
Availability: InStock

In stock

SKU: PJ-E33

5.0 1 review

$2,068.00

Product variants

Pickup available at Quebec Sherbrooke Warehouse

Usually ready in 24 hours

Li-ion Powered Pallet Truck

Indoor using type Li-ion powered pallet truck, with similar size as manual pallet truck,offer small turning radius, it is super lignt and easy to operate.

Lithium battery capacity: 24V/20AH(CBD15).

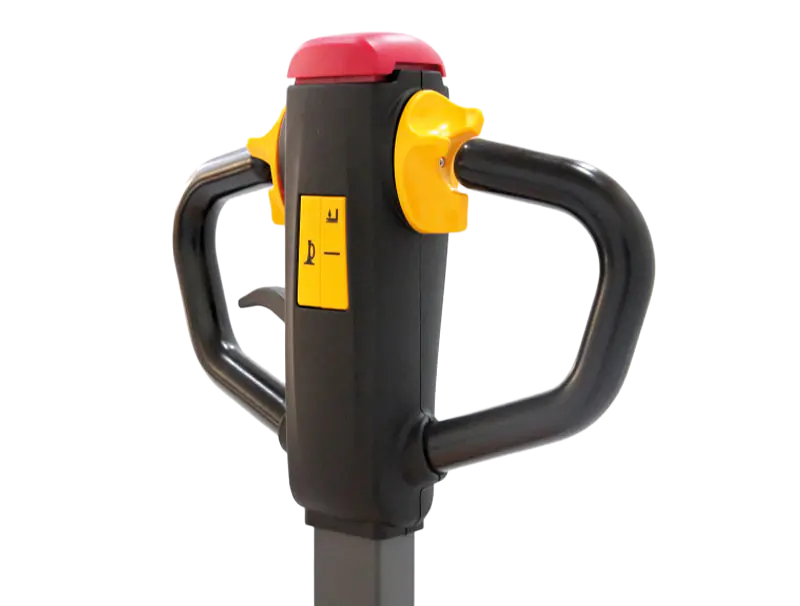

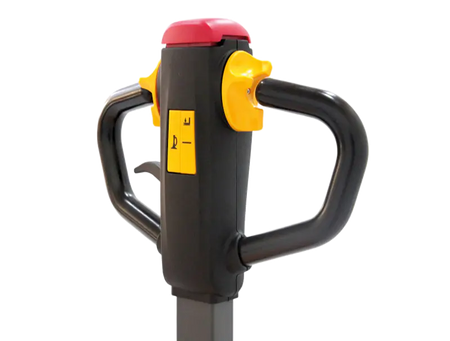

Handle with bully switch.
High quality emergency switch ( as key switch).
Split rocker arm makes the equable stress in order to keep thelong-time using.

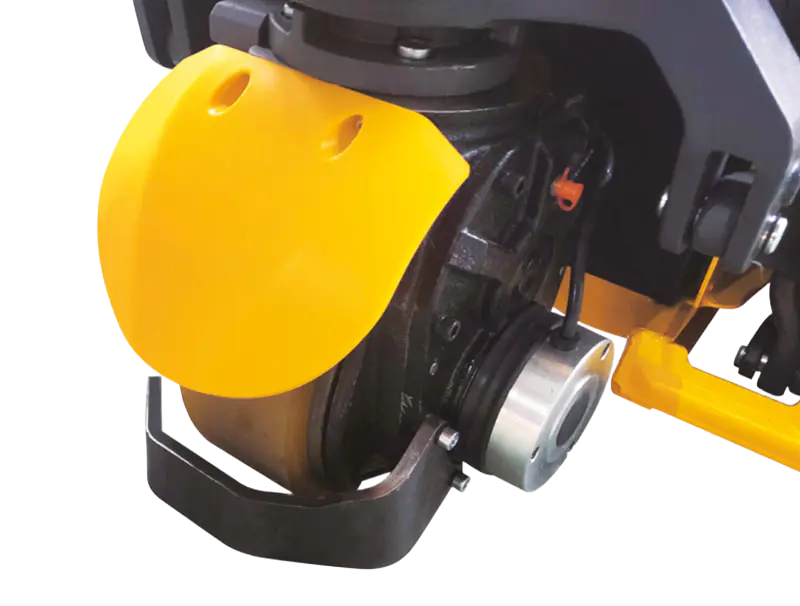

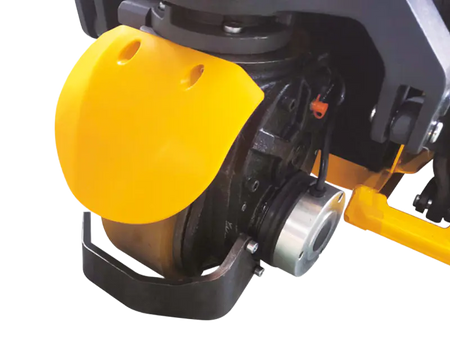

Driving wheel with horizontal mounted motor, convenience tomaintain.
External battery charger connector, can be charged separatelyeven the battery were used outSingle fork roller.

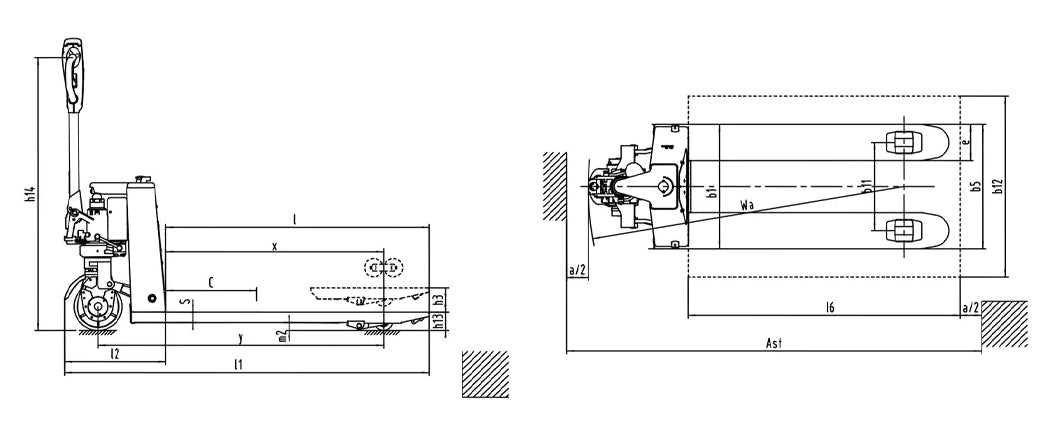

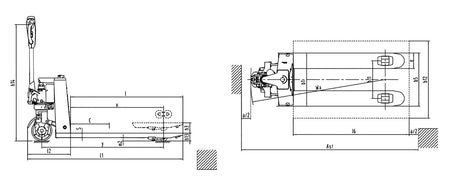

Item	Unit/Code	Value
Drive	-	Electric
Operator type	-	Pedestrian
Rated capacity/rated load	Q(kg)	1500
Load centre distance	c(mm)	600
Load distance, centre of drive axle to fork	x(mm)	951/1021
Wheelbase	y(mm)	1236/1306
Service weight	kg	114
Axle loading, laden front/rear	kg	410/1204
Axle loading, unladen front/rear	kg	85/29
Tyres	-	Polyurethane (PU)
Tyre size, front	-	Φ210×75
Tyre size, rear	-	Φ80×93/Φ80×70
Wheels, number front/rear (x = driven wheels)	-	1×2(4)
Tread, rear	b11(mm)	390/525
Max. lift height	h3(mm)	110

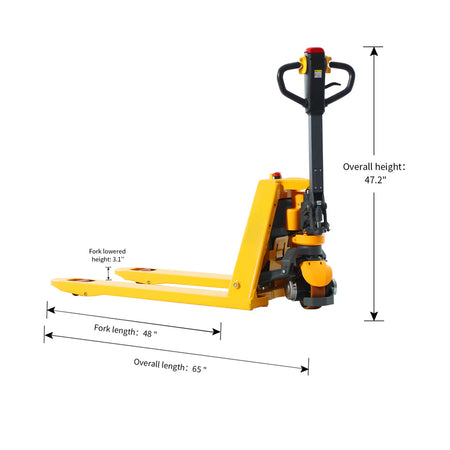

Height drawbar in driving position min./max.	h14(mm)	635/1200
Height, lowered	h13(mm)	80
Length to face of forks	l2(mm)	430
Overall width	b1/b2(mm)	550/685

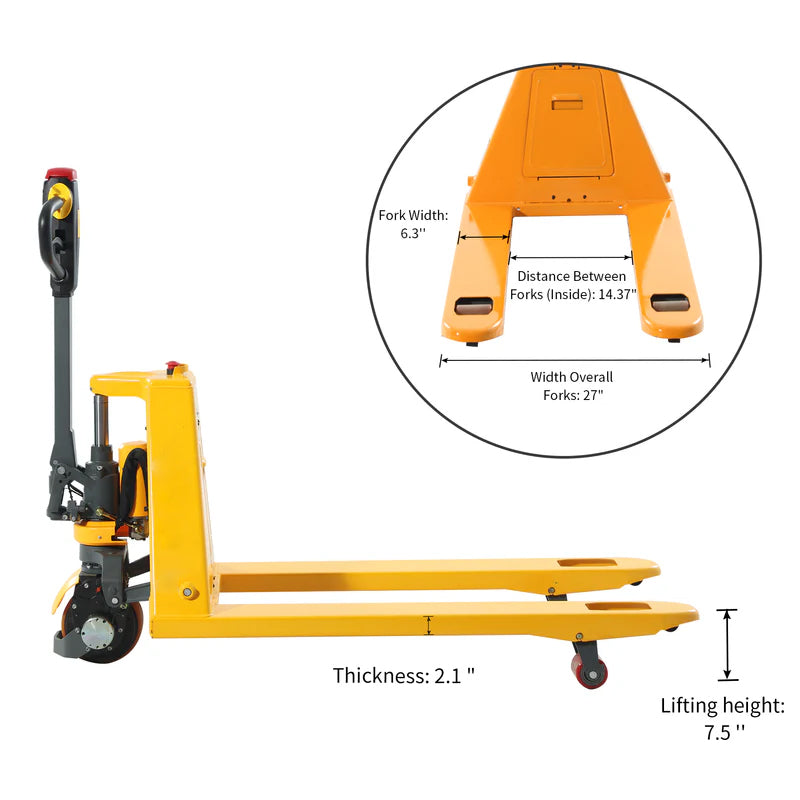

Fork dimensions DIN ISO 2331	s/e/l(mm)	53/160/1150(1220)
Fork spread	b5(mm)	550/685
Ground clearance, centre of wheelbase	m2(mm)	27
Aisle width for pallets 1000 × 1200 crossways	Ast(mm)	2180/2250
Aisle width for pallets 800 × 1200 lengthways	Ast(mm)	2050/2085
Turning radius	Wa(mm)	1380/1450
Travel speed, laden/unladen	km/h	4.3/4.5
Lift speed, laden/unladen	m/s	0.016/0.02
Max. gradeability, laden/unladen	%	5/20
