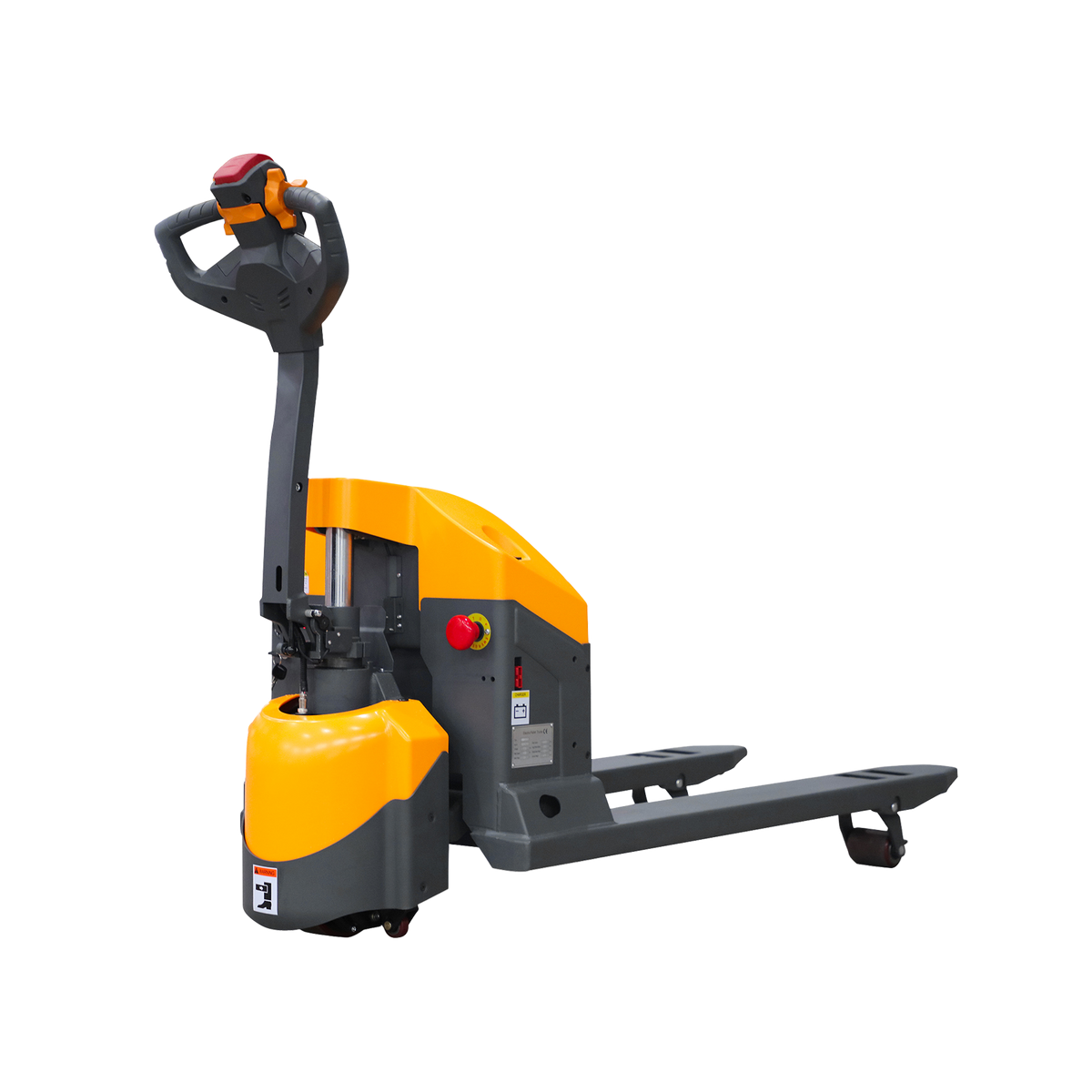

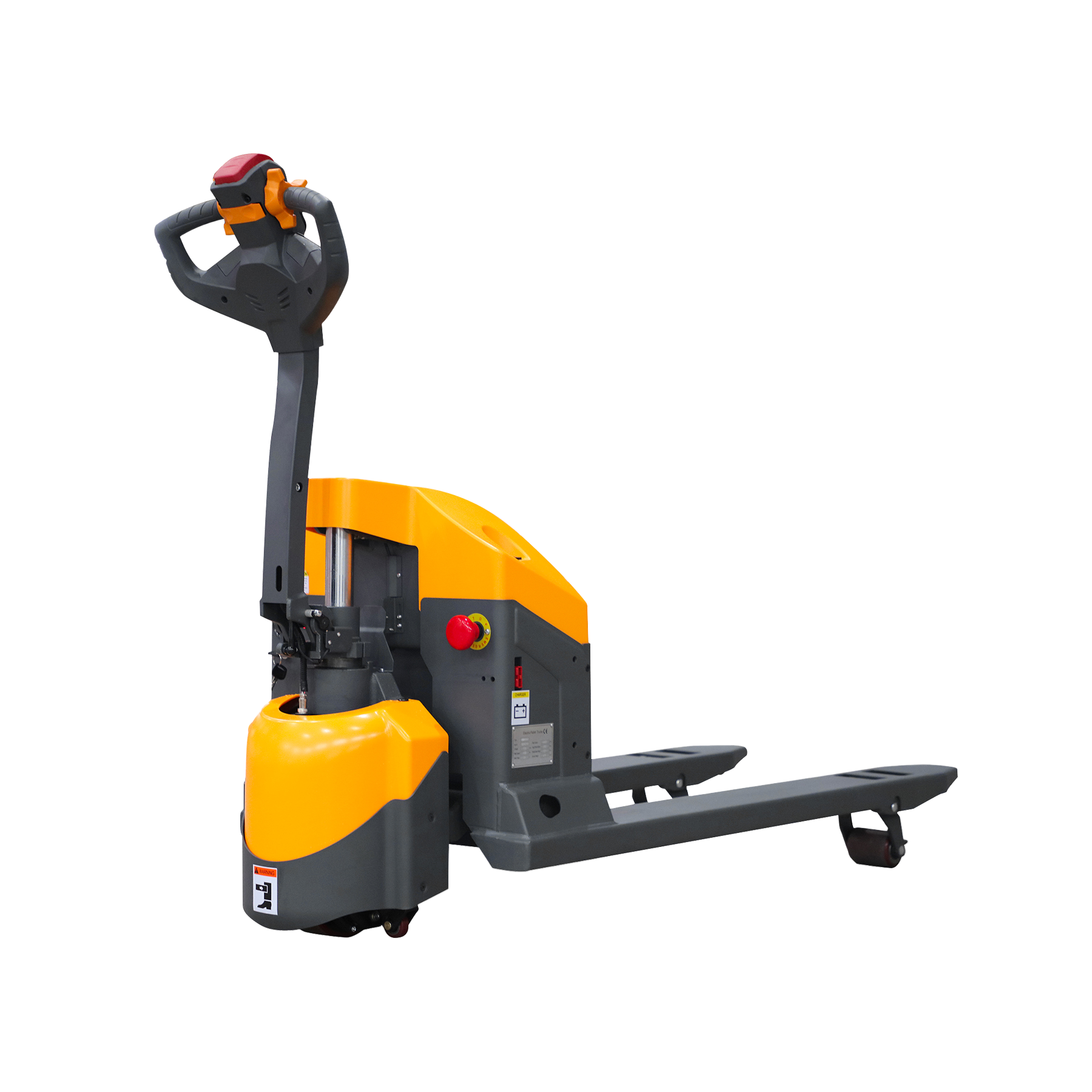

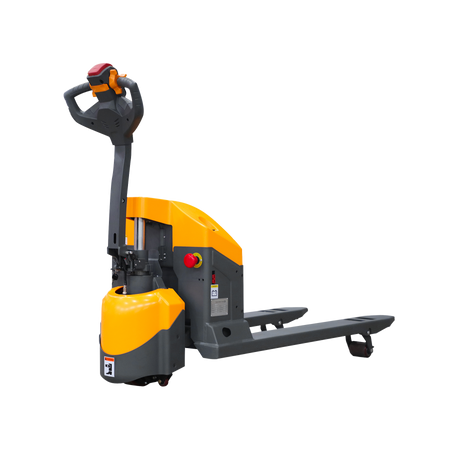

3300lbs Electric Pallet Truck W-E

Name: 3300lbs Electric Pallet Truck W-E
Brand: Xilin
SKU: PJ-E33-W-E
Price: 2871.0 CAD
Availability: InStock

In stock

SKU: PJ-E33-W-E

$2,871.00

Product variants

Electric Walkie Pallet fruck

The Mini type with same size as hand pallet truck widely used in narrow aisleworkshop,supermarket & cargo containers

Adopting floating balance wheel can prevent the side swing of the truck when traveling, Travel smoothly and no swing; great anti-vibration.
The whole balance wheel can be removed, easy to maintain.
The rock arm mechanism integral structure which improves the structure streneth efiectivelv, meanwhile, share and adiust the even forcefrom the fork, Reduce the obvious deflection in fork height after a long use and when loading.
The drive wheel adopts horizontal type structure which makes the layout position of the motor higher off the ground to prevent thewater, dust and greasy dirt gluing on the motor effectively and improve working condition of the motor.
The truck is equipped with a height limit switch

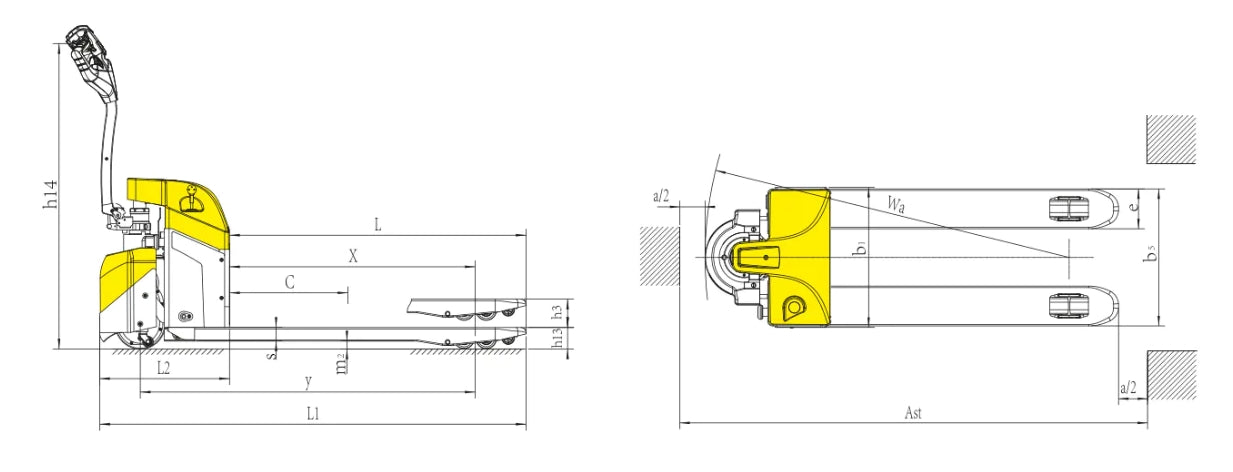

Item	Unit/Code	Value
Drive	-	Electric
Operator type	-	Pedestrian
Rated capacity/rated load	Q / kg	1500
Load centre distance	c / mm	600
Load distance, centre of drive axle to fork	x / mm	951/1021
Wheelbase	y / mm	1287/1357
Service weight	kg	205
Axle loading, laden front/rear	kg	505/1200
Axle loading, unladen front/rear	kg	165/40
Tyres	(PU)	Polyurethane
Tyre size, front	-	Φ195×70
Tyre size, rear	tandem	single Φ80×93/74×93
Additional wheels	mm	44×17
Wheels, number front/rear	x / (4)	1×+2/2
Tread, front	b10 / mm	284
Tread, rear	b11 / mm	360/390/525
Max. lift height	h3 / mm	110
Height drawbar in driving position min./max.	h14 / mm	700/1250
Height lowered	h13 / mm	85/75

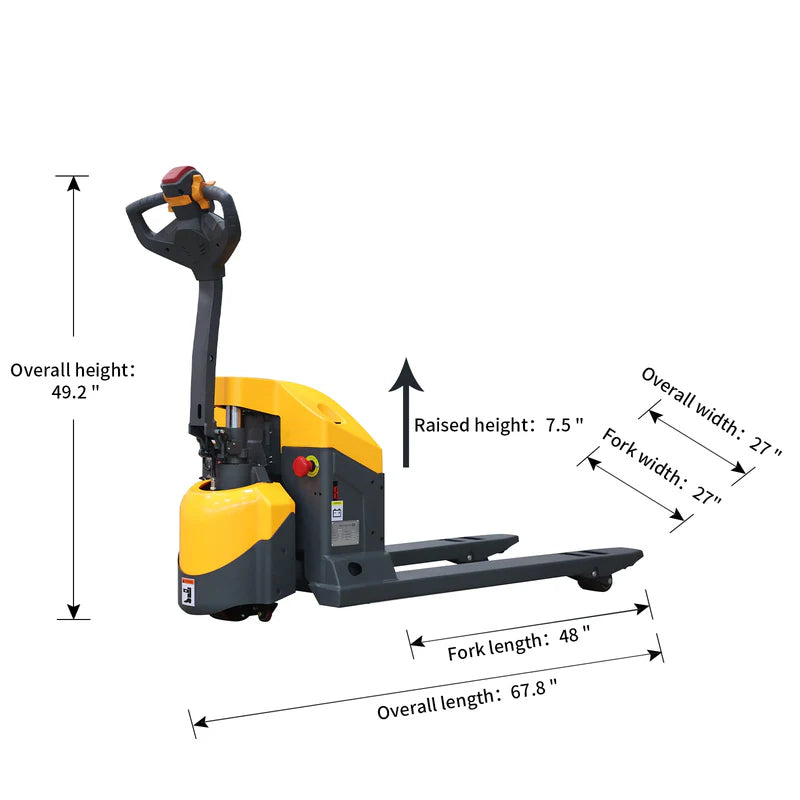

Overall length	l1 / mm	1654/1724
Length to face of forks	l2 / mm	504
Overall width	b1/b2 / mm	685/562

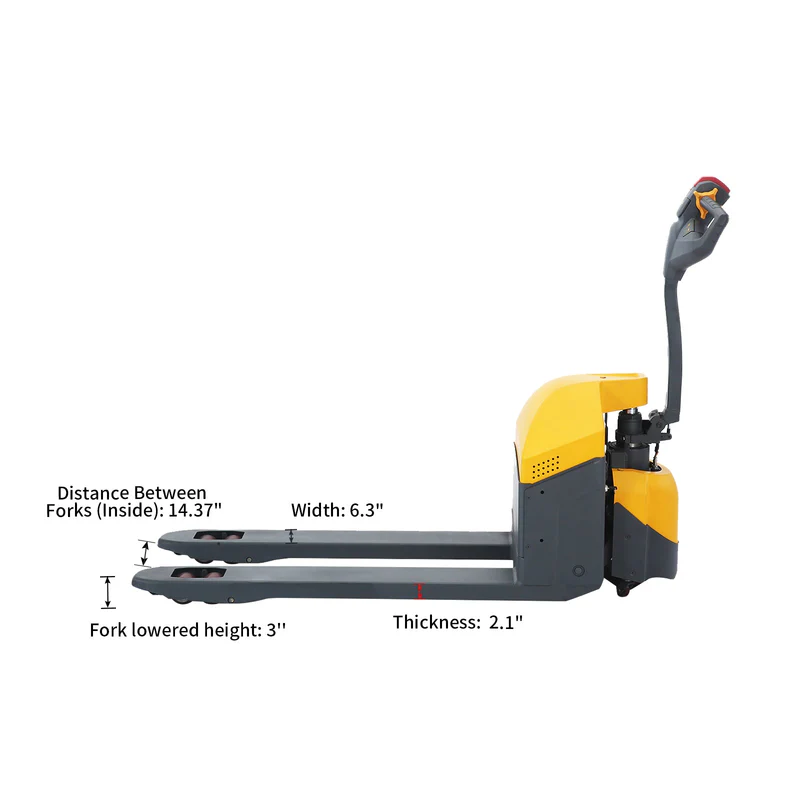

Fork dimensions	s/e/l / (1220) mm	53/160/1150
Fork spread	b5 / mm	520/550/685
Ground clearance, centre of wheelbase	m2 / mm	32/22
Aisle width for pallets 1000×1200 crossways	Ast / mm	2260/2328
Aisle width for pallets 800×1200 lengthways	Ast / mm	2128/2365
Turning radius	Wa / mm	1454/1424
Travel speed, laden/unladen	km/h	4.3/4.8
Lift speed, laden/unladen	m/s	0.025/0.03
Lowering speed, laden/unladen	m/s	0.035/0.025
Max. gradeability, laden/unladen	%	5/20
Service brake	-	Electromagnetic
Drive motor rating S2 60 min	kW	0.65
Lift motor rating at S3 15%	kW	0.8
Battery voltage/nominal capacity	K5 / V/Ah	24/65
Battery weight	kg	36
Sound pressure level at the driver’s seat	dB(A)	70
