Introducing the Steelman Trench Shield – a high quality, budget-friendly temporary earth retaining structure that provides stability and safety to any excavation project. This shield is built with quality materials that can be relied upon in the field. It offers a minimal excavation footprint and helps prevent damage to nearby utilities and structures. With the Steelman Trench Shield, you can keep you and your workers safe while getting the job done.

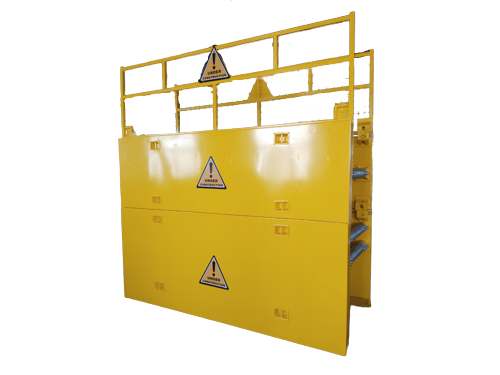

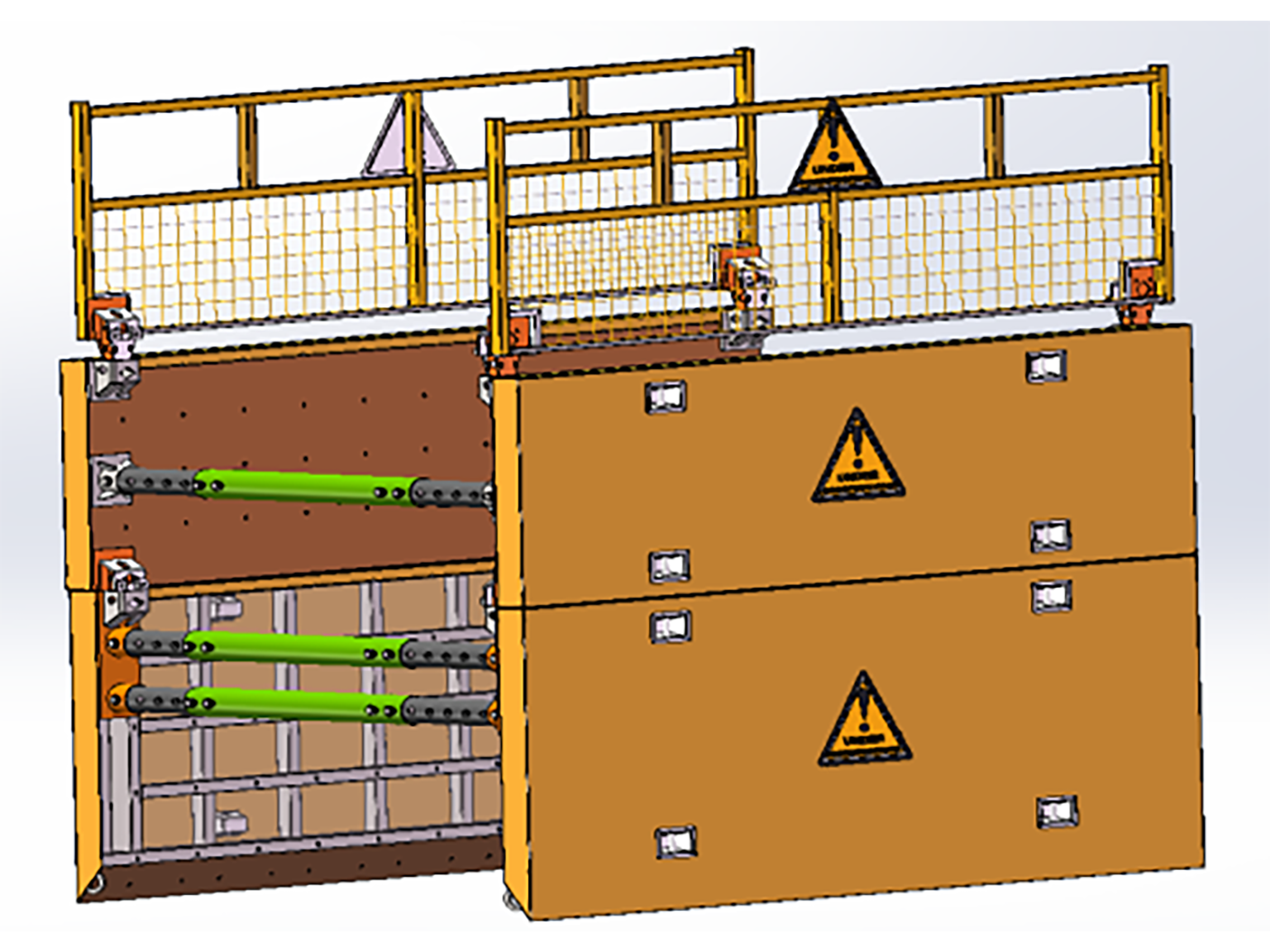

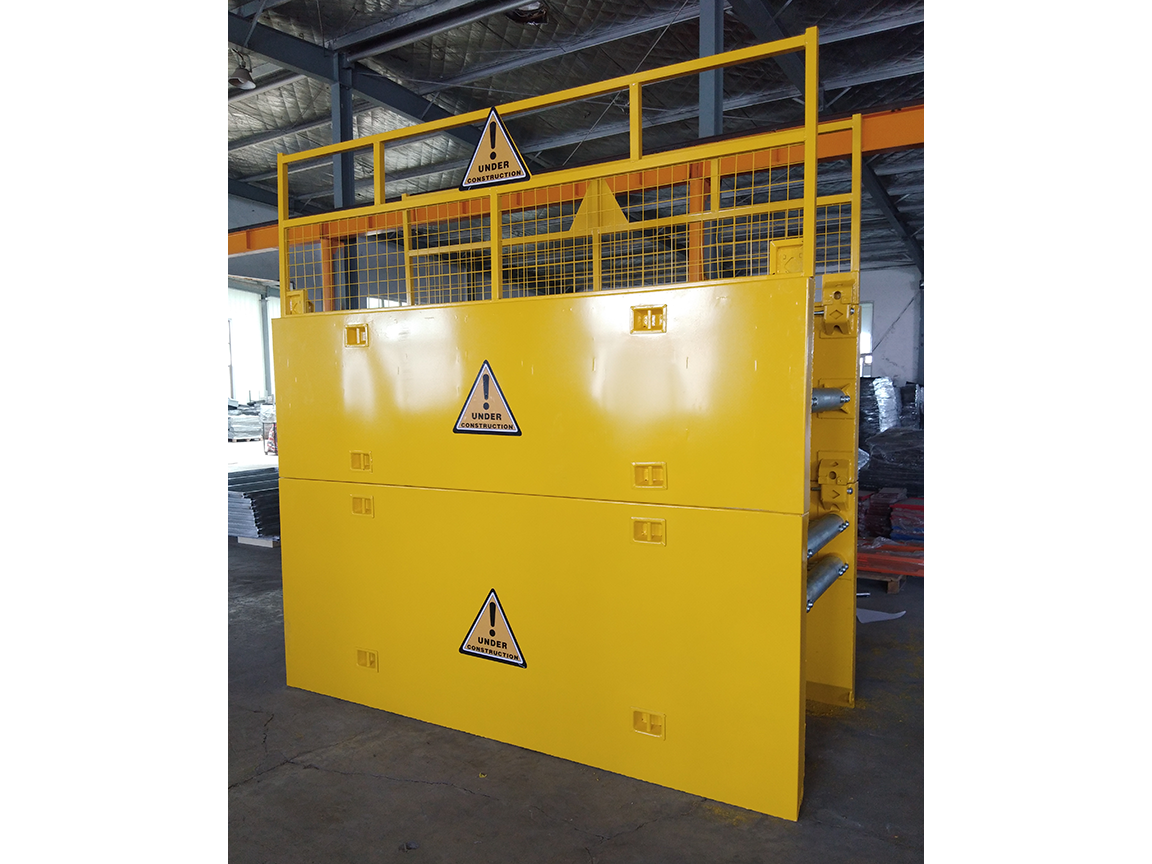

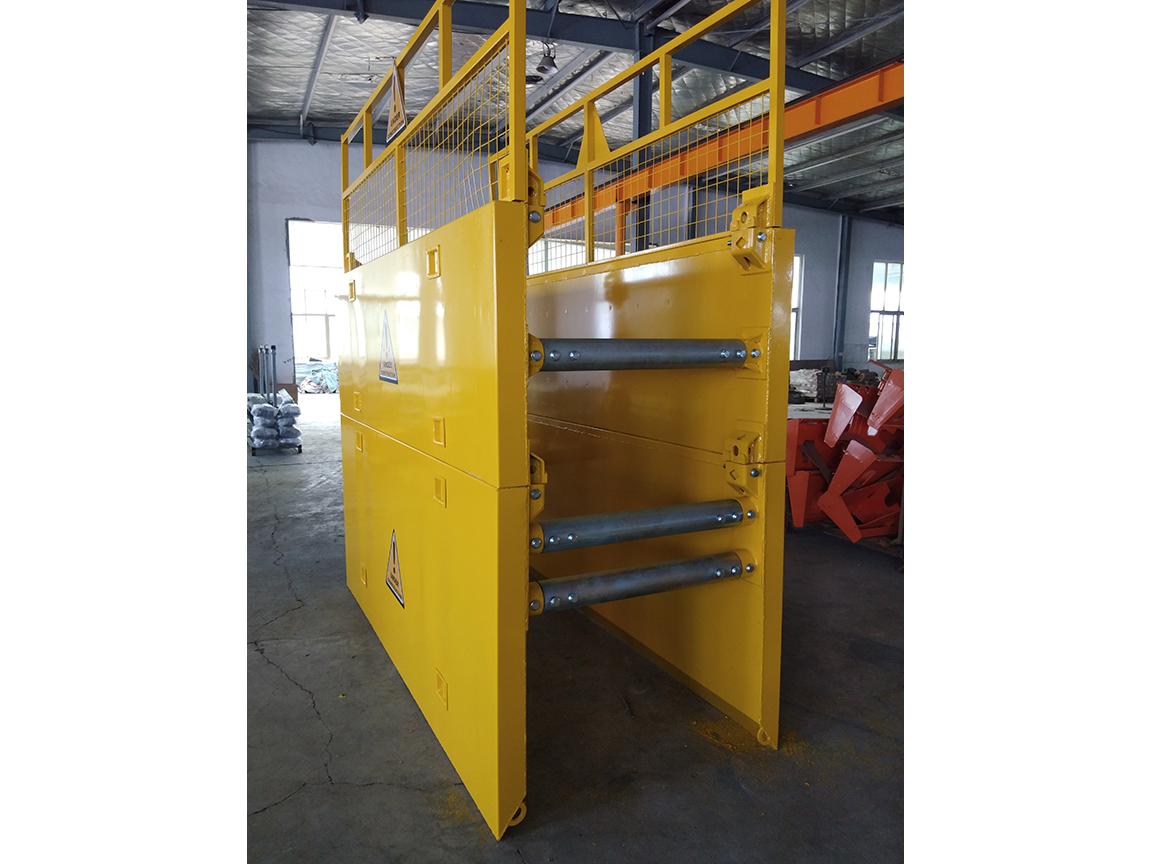

Steelman 2020 Trench Shield
H7FT*L10FT*W3-5FT.
Usage: to improve digging efficiency by preventing over excavation of a trench site & reducing employee time on the site.
Introducing the Steelman Trench Shield – a high quality, budget-friendly temporary earth retaining structure that provides stability and safety to any excavation project. This shield is built with quality materials that can be relied upon in the field. It offers a minimal excavation footprint and helps prevent damage to nearby utilities and structures. With the Steelman Trench Shield, you can keep you and your workers safe while getting the job done.
Steelman 2020 Trench Shield
H7FT*L10FT*W3-5FT.
Usage: to improve digging efficiency by preventing over excavation of a trench site & reducing employee time on the site.
No feature content found.
| Model Number | Wall Thickness (in) | Height (ft) | Length (ft) | Weight (lbs) | Adjustable Support (in) | Shield Capacity (PSF) | Shield Capacity (Kpa) | Depth (ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| A (Soil) | B (Soil) | C (Soil) | ||||||||
| 4IN-W7ft-L10ft | 4 | 7 | 10 | 3283 | 28/40/63 | 2024 | 98.83 | 141 | 78 | 59 |
| 4IN-W4ft-L10ft | 4 | 4 | 10 | 1917 | 28/40/63 | 3542 | 172.96 | 81 | 45 | 33 |
| Package Weight |
|---|
| 3060kg/6746lbs |
