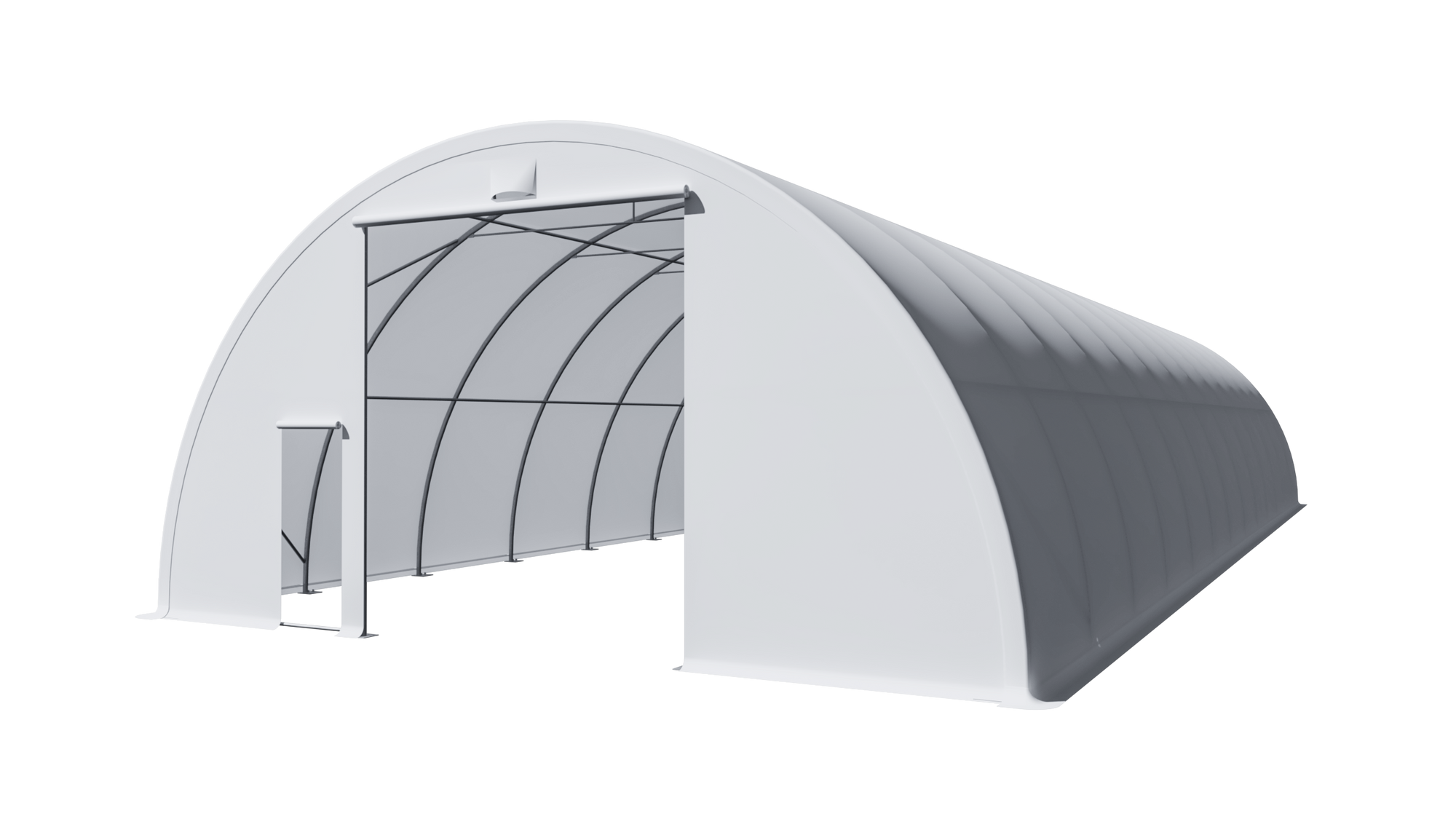

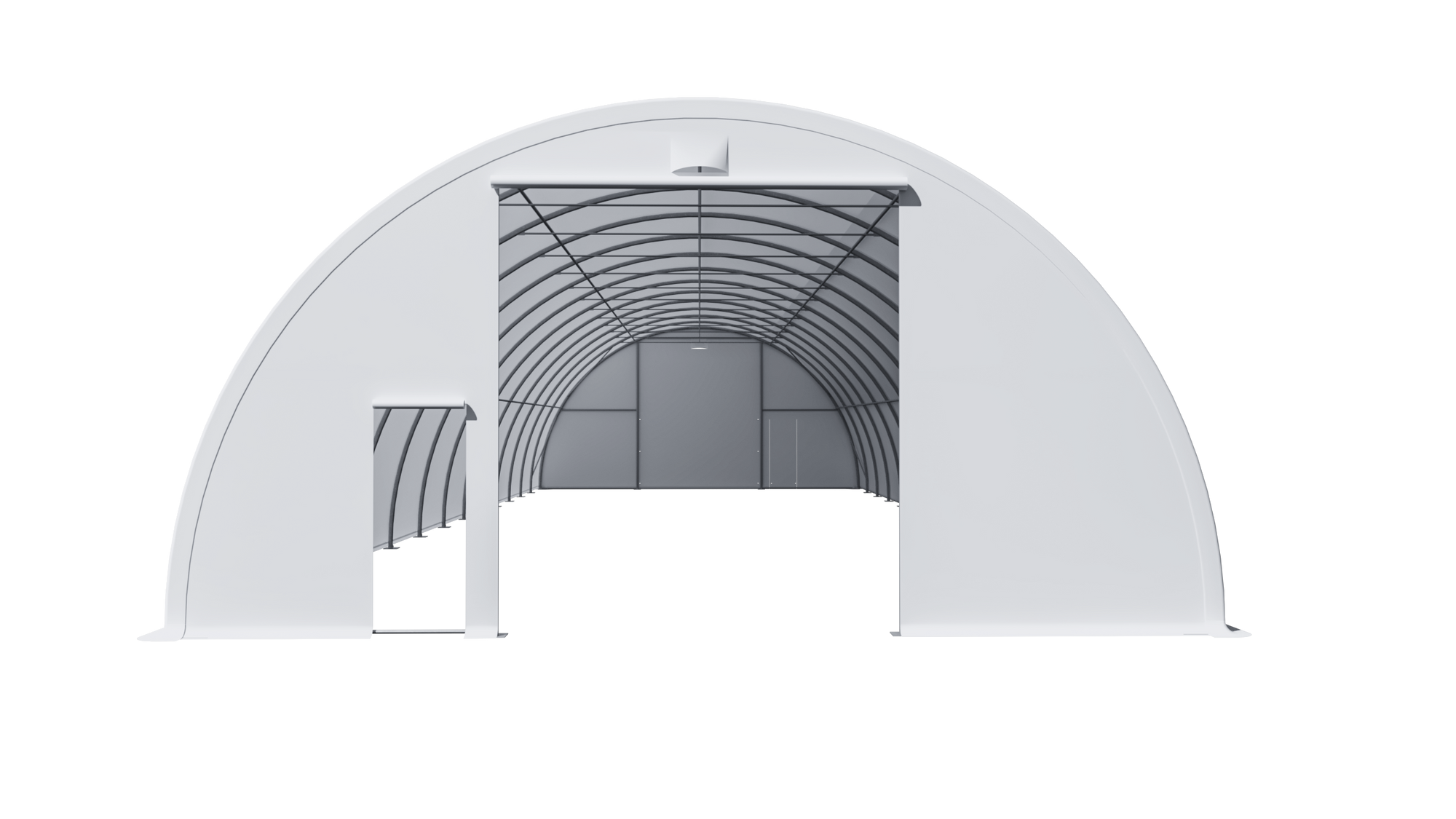

Gold Mountain Single Truss Round Storage Shelter W30'xL84'xH15' 4FT

Name: Gold Mountain Single Truss Round Storage Shelter W30'xL84'xH15' 4FT
Brand: Gold Mountain
SKU: SS-SR3084-500
Price: 13999.0 CAD
Availability: InStock

Only 1 left

SKU: SS-SR3084-500

No reviews

$13,999.00

Material 500g PVC

Product variants

Warranty

Frame 3 years, Tarp 2 years + 1 year prorated protection.

View details

Replacements

Accessories Parts

Product details

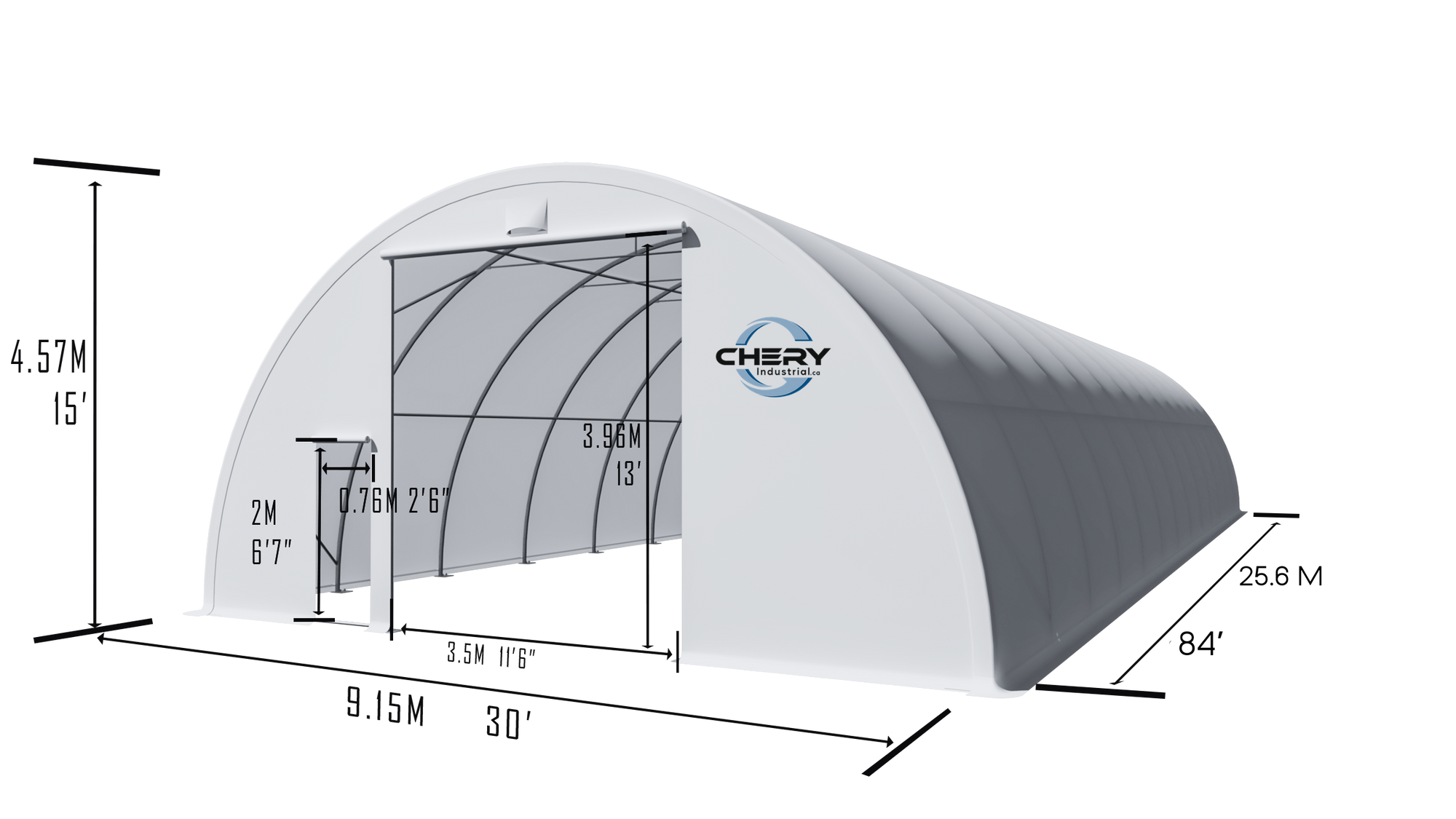

Dimensions: 30' × 84' × 15'
Structure: Single-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 500g PVC

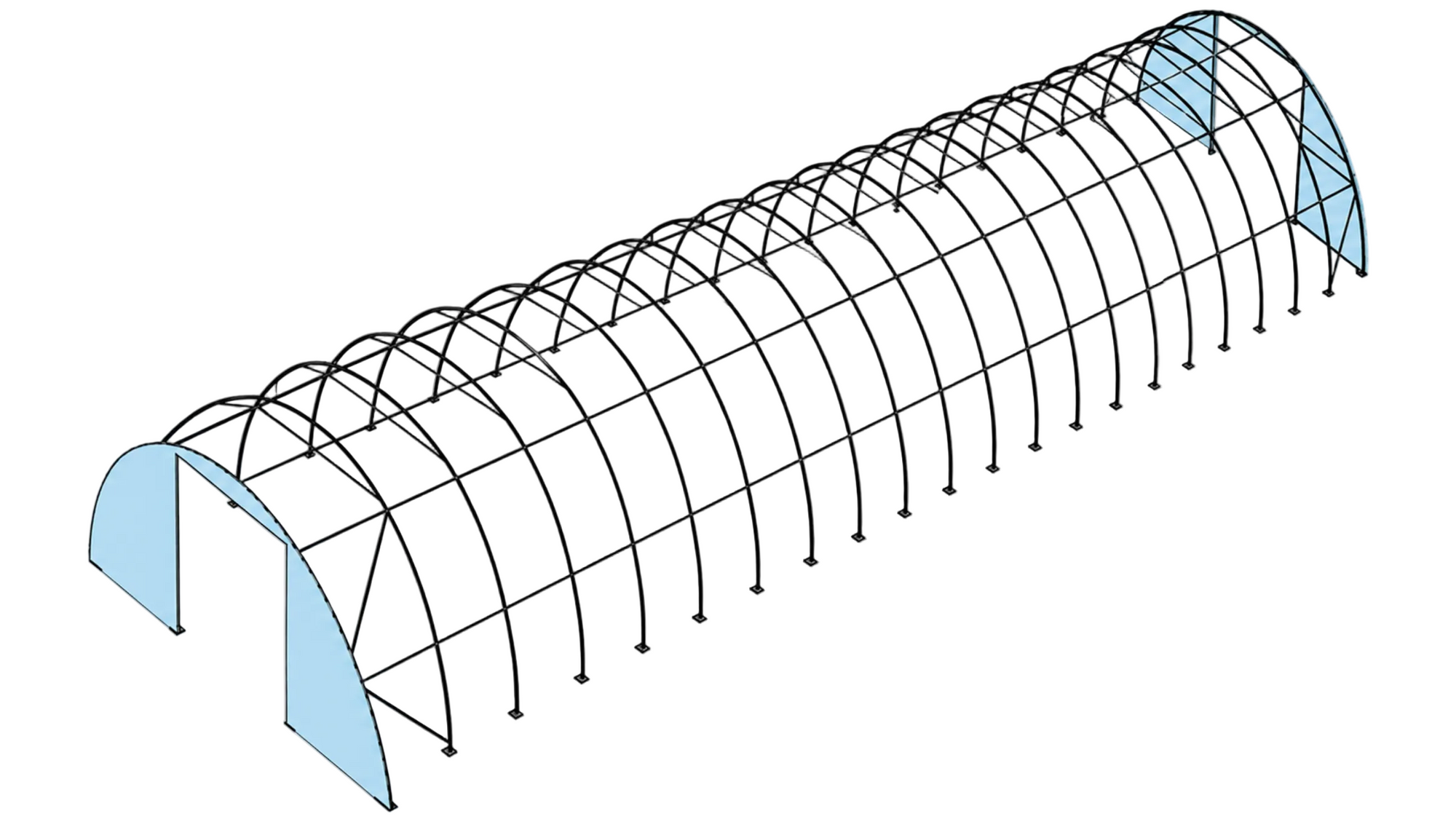

Arch Configuration: 22 main arches at 4 ft spacing
Performance Level: Heavy Duty
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Dimension	9.15m26m4.5m/30'85'15'
Floor Footprint	237m²/2550ft²
Highest Height	4.5m/15’
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Main Arch Tube Diameter	42mm/1.65''
Main Arch Tube Thickness	2mm/0.08''
Main Arch Space	2m/6.56'
Purlin Tube Diameter	40mm/1.57''
Purlin Tube Thickness	1.5mm/0.06''
Door Size	3.5m3.5m/11.4'11.4'

Snow Rate Test Result:

308515R	Test Load		Deflection
308515R	Lb	Kpa	Point A (inch)	Point B (inch)	Point C (inch)
Step 1	0	0	0	0	0
Step 2	1005	1.52	1.4	1.6	1.2
Step 3	1507	2.28	2.2	2.3	1.6
Step 4	Keep the test load until 30 minutes
Step 5	Remove the test load		0.6	1.1	1.2
Step 6	The test sample can withstand the applied test load without damage.

Product manuals and documents

304015R_306415R_308415R_EN_V2.pdf

View Download

304015R_306415R_308415R_FR_V2.pdf

View Download

Product details

Dimensions: 30' × 84' × 15'
Structure: Single-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 500g PVC
Arch Configuration: 22 main arches at 4 ft spacing
Performance Level: Heavy Duty
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Dimension	9.15m26m4.5m/30'85'15'
Floor Footprint	237m²/2550ft²
Highest Height	4.5m/15’
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Main Arch Tube Diameter	42mm/1.65''
Main Arch Tube Thickness	2mm/0.08''
Main Arch Space	2m/6.56'
Purlin Tube Diameter	40mm/1.57''
Purlin Tube Thickness	1.5mm/0.06''
Door Size	3.5m3.5m/11.4'11.4'

Snow Rate Test Result:

308515R	Test Load		Deflection
308515R	Lb	Kpa	Point A (inch)	Point B (inch)	Point C (inch)
Step 1	0	0	0	0	0
Step 2	1005	1.52	1.4	1.6	1.2
Step 3	1507	2.28	2.2	2.3	1.6
Step 4	Keep the test load until 30 minutes
Step 5	Remove the test load		0.6	1.1	1.2
Step 6	The test sample can withstand the applied test load without damage.

Product manuals and documents

304015R_306415R_308415R_EN_V2.pdf

View Download

304015R_306415R_308415R_FR_V2.pdf

View Download

Comparison

Attribute	Basic 11 arches W30'xL65'xH15' $8,000.00	Current Heavy Duty 22 arches W30'xL84'xH15' $13,999.00	Heavy Duty 22 arches W30'xL84'xH15' $14,999.00	Heavy Duty 9 arches W30'xL80'xH20' $22,999.00
Door size	W11.3' x H11.3'	W11.5' x H11.5'	W11.3' x H11.3'	W14.5' x H13.0'
Snow load	1.6 kPa	1.8 kPa	1.8 kPa	2.0 kPa
Wind load	0.3 kPa	0.34 kPa	0.34 kPa	0.37 kPa
Warranty	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.
