Gold Mountain Single Truss Round Storage Shelter W20'xL30'xH12' - 420g PVC 5ft Arch space

Name: Gold Mountain Single Truss Round Storage Shelter W20'xL30'xH12' - 420g PVC 5ft Arch space
Brand: Gold Mountain
SKU: SS-SR2030-420-5FT
Price: 2999.0 CAD
Availability: OutOfStock

Available soon

SKU: SS-SR2030-420-5FT

No reviews

$2,999.00

Product variants

Preorder

Warranty

Frame 3 years, Tarp 2 years + 1 year prorated protection.

View details

Replacements

Accessories Parts

Product details

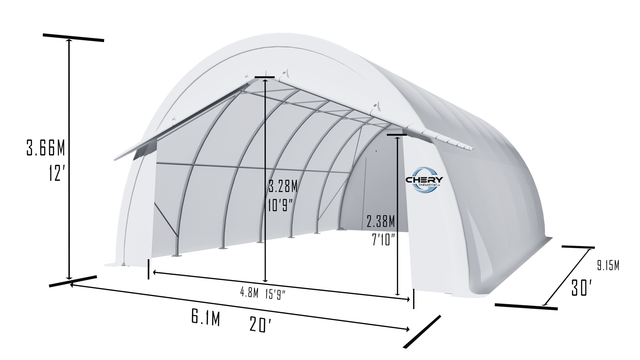

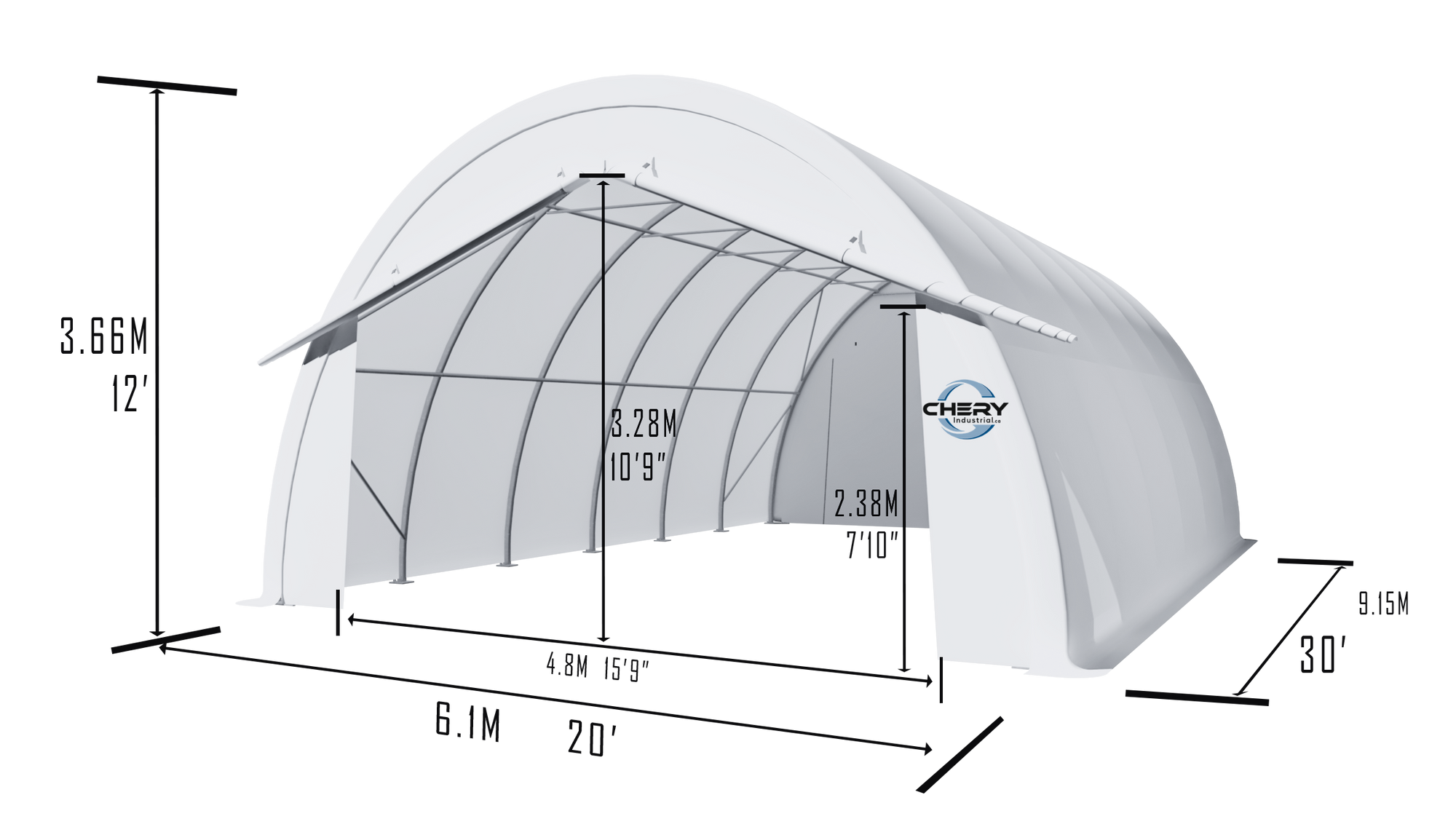

Dimensions: 20' × 30' × 12'

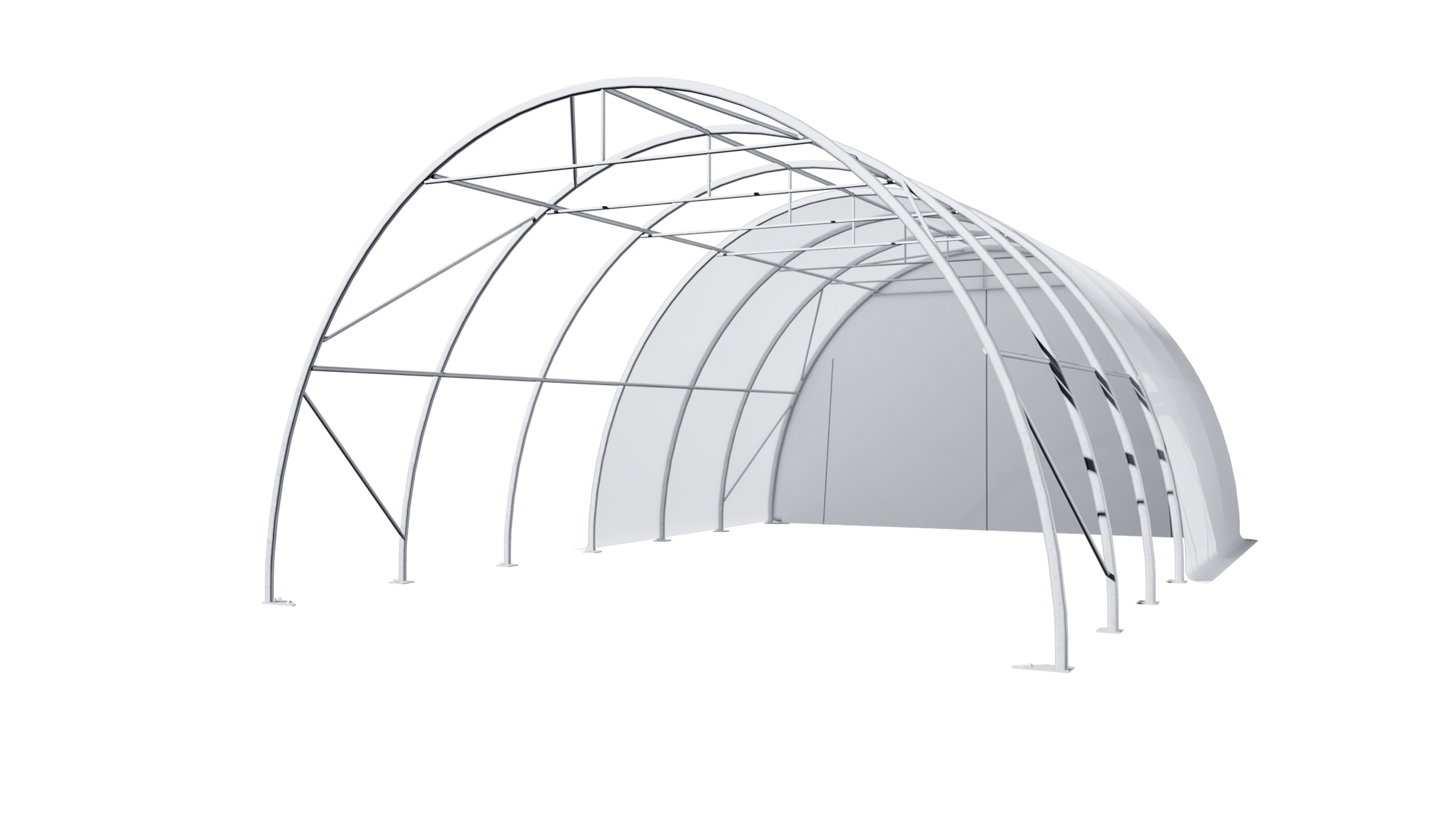

Structure: Single-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 420g PVC
Arch Configuration: 7 main arches at 5 ft spacing
Performance Level: Heavy Duty
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Dimension	6.1m9.15m3.66m/20'30'12'
Floor Footprint	55.74m²/600ft²
Highest Height	3.66m/12’
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Main Arch Tube Diameter	42mm/1.65''
Main Arch Tube Thickness	1.5mm/0.06''
Main Arch Space	1.83m/6'
Purlin Tube Diameter	40mm/1.57''
Purlin Tube Thickness	1.5mm/0.06''
Door Size	4.3m3.2m/14.1'10.5'

Product manuals and documents

Instructions_2023_ROUND_203012R_1.525M_ARCH_SPACE_EN.pdf

View Download

Instructions_2023_ROUND_203012R_1.525M_ARCH_SPACE_FR.pdf

View Download

Product details

Dimensions: 20' × 30' × 12'
Structure: Single-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 420g PVC
Arch Configuration: 7 main arches at 5 ft spacing
Performance Level: Heavy Duty
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Dimension	6.1m9.15m3.66m/20'30'12'
Floor Footprint	55.74m²/600ft²
Highest Height	3.66m/12’
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Main Arch Tube Diameter	42mm/1.65''
Main Arch Tube Thickness	1.5mm/0.06''
Main Arch Space	1.83m/6'
Purlin Tube Diameter	40mm/1.57''
Purlin Tube Thickness	1.5mm/0.06''
Door Size	4.3m3.2m/14.1'10.5'

Product manuals and documents

Instructions_2023_ROUND_203012R_1.525M_ARCH_SPACE_EN.pdf

View Download

Instructions_2023_ROUND_203012R_1.525M_ARCH_SPACE_FR.pdf

View Download

Comparison

Attribute	Basic 6 arches W20'xL30'xH12' $2,499.00	Heavy Duty 7 arches W20'xL30'xH12' $2,999.00	Current Heavy Duty 7 arches W20'xL30'xH12' $2,999.00	Engineer Stamped 7 arches W20'xL30'xH12' $4,999.00
Door size	W14.4' x H10.7'	W15.9' x H10.8'	W14.4' x H10.7'	W14.4' x H10.7'
Snow load	1.6 kPa	1.8 kPa	1.8 kPa	2.4 kPa
Wind load	0.3 kPa	0.34 kPa	0.34 kPa	0.4 kPa
Warranty	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 10 years, Tarp 2 years + 6 year prorated protection.
