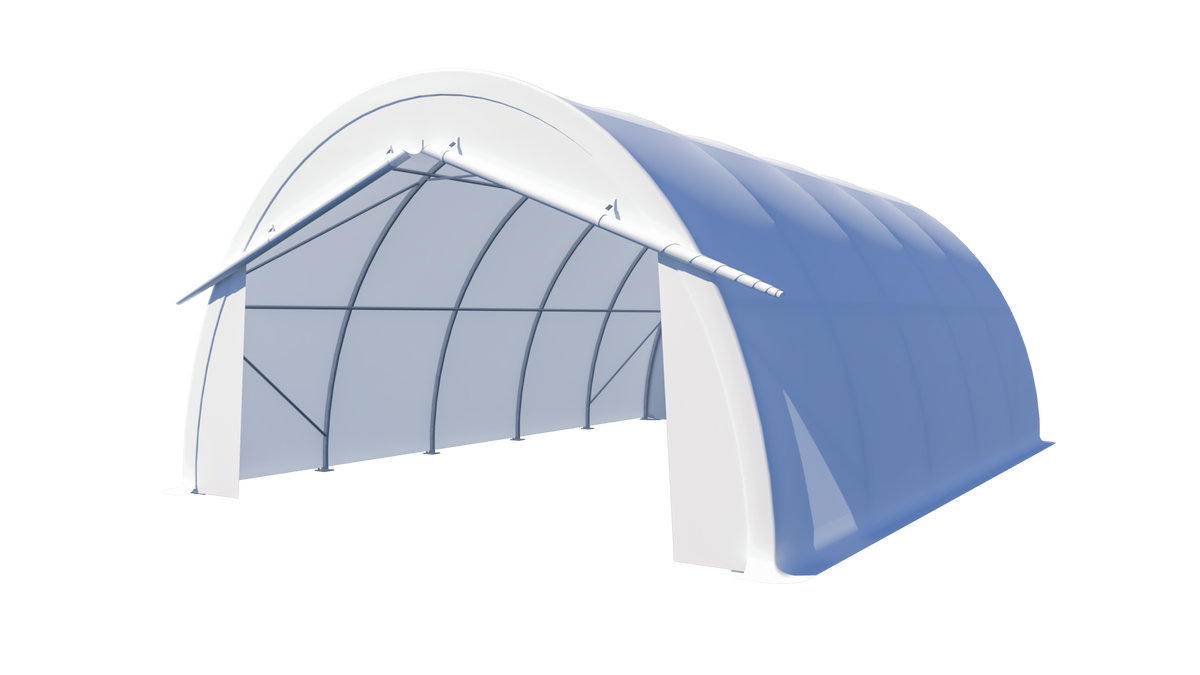

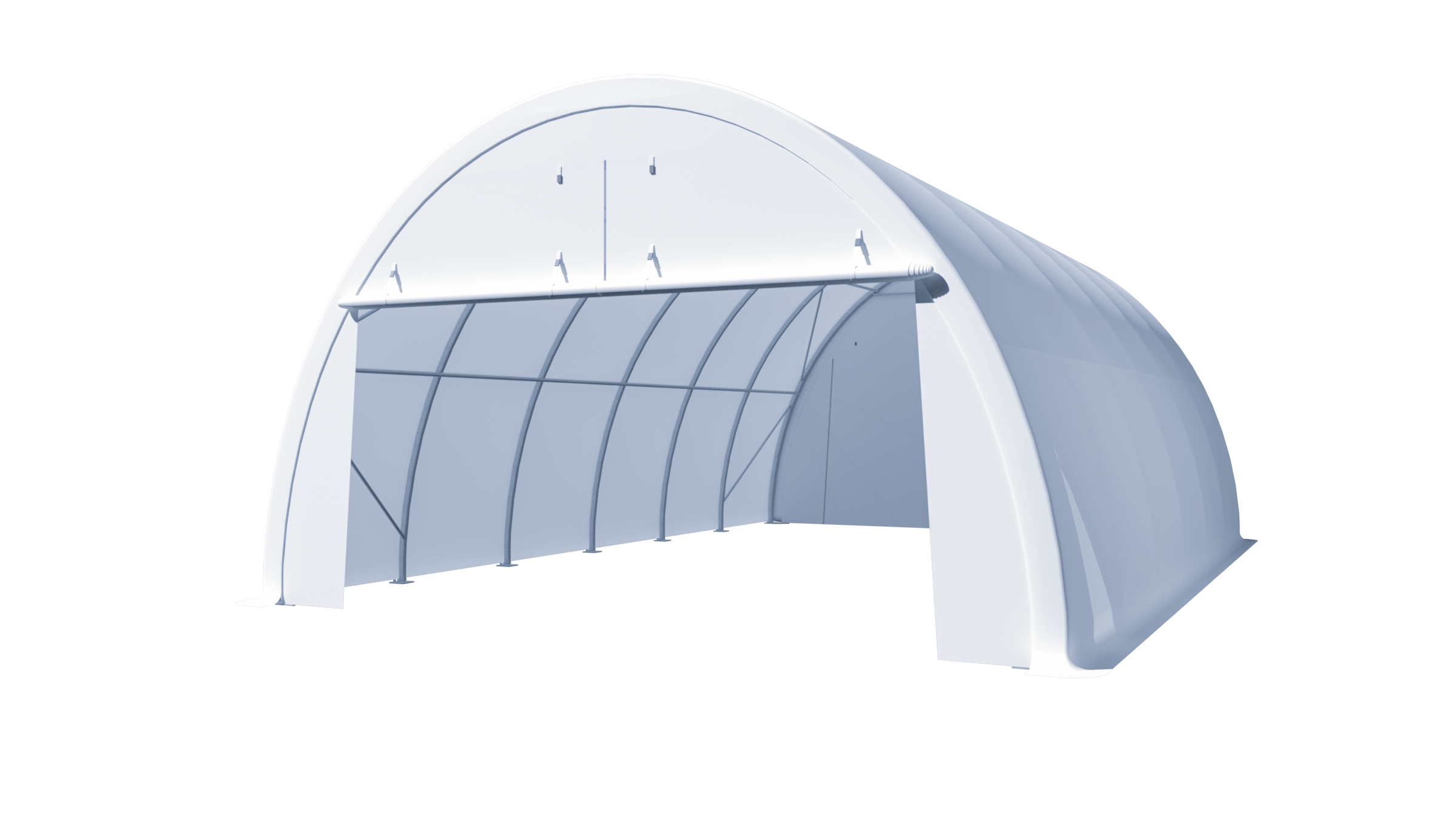

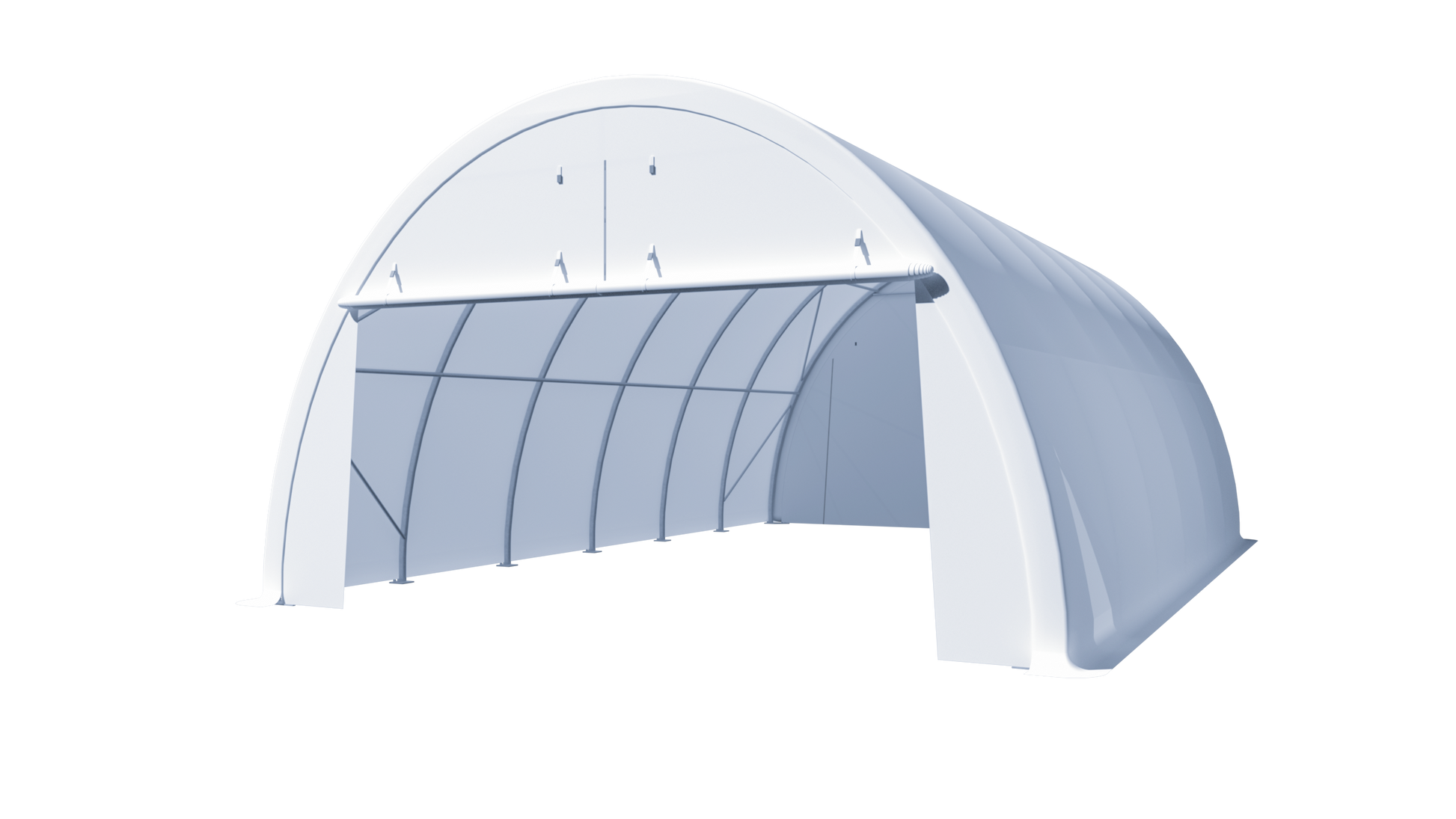

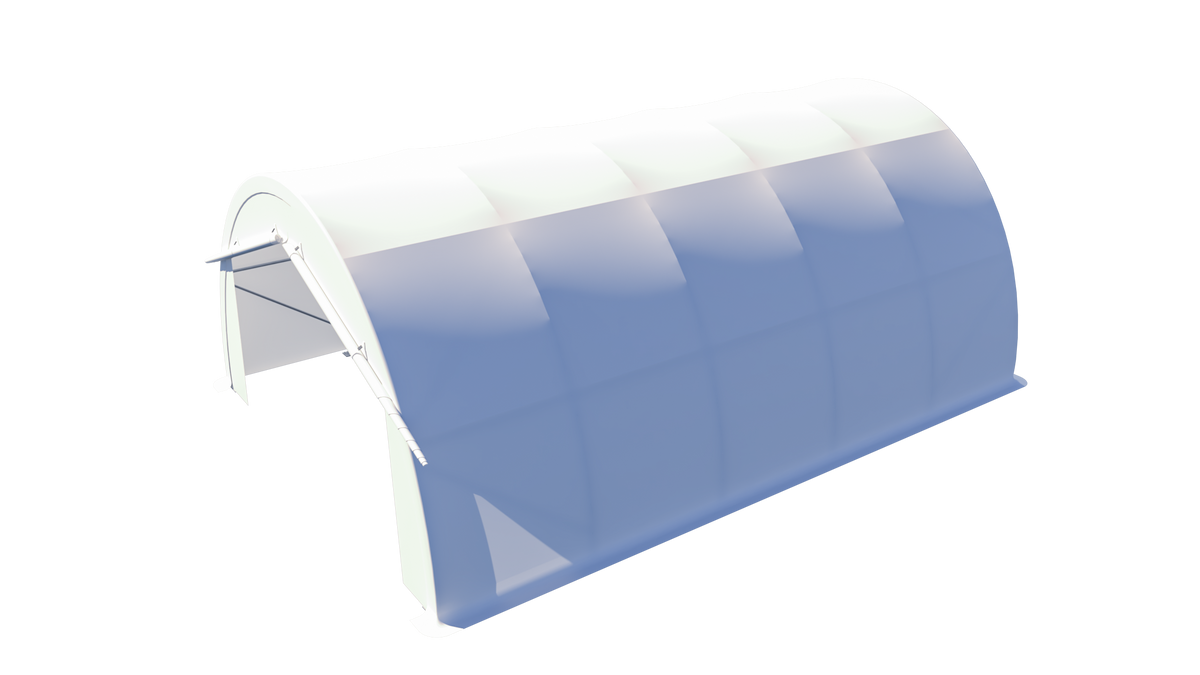

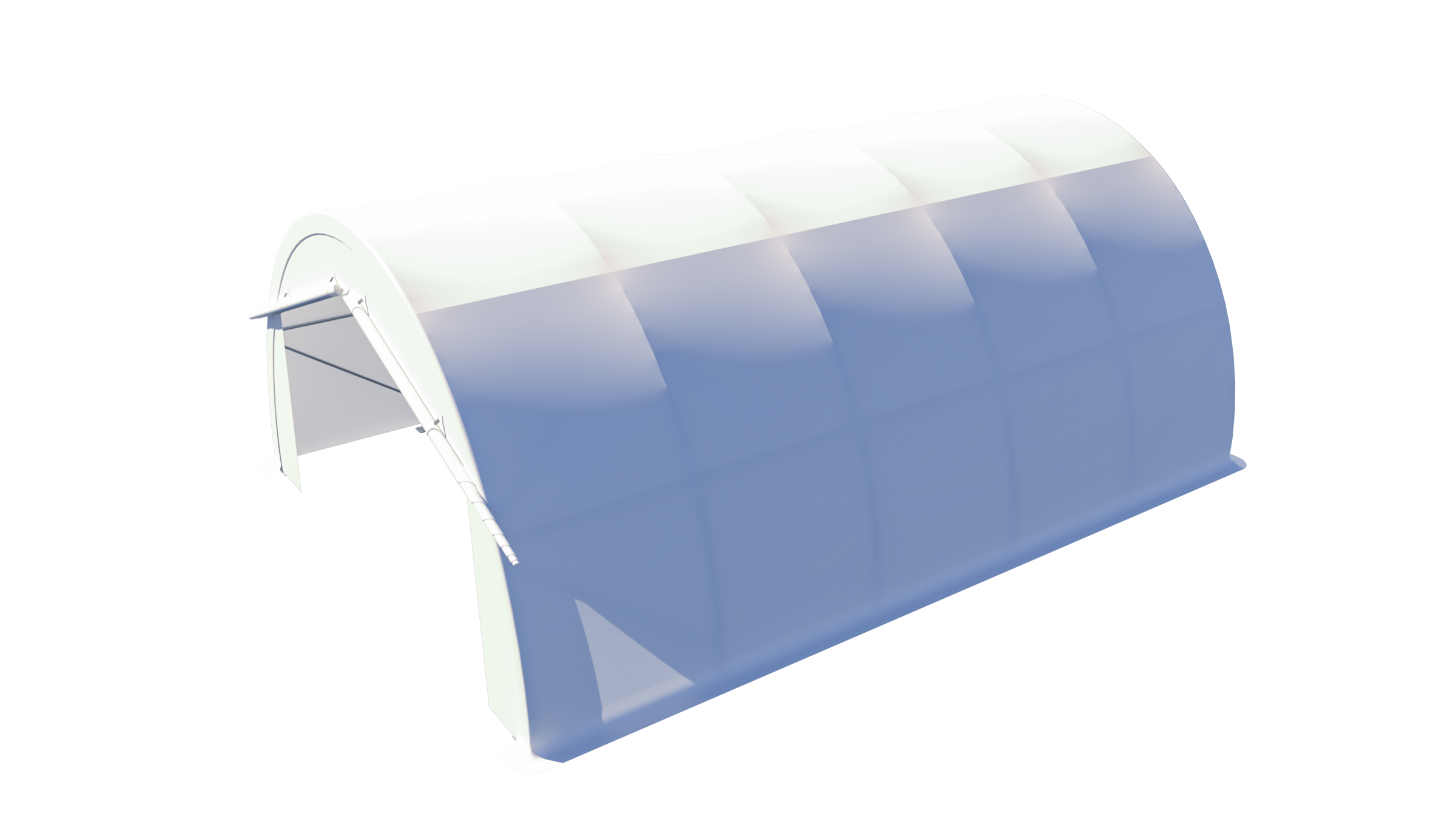

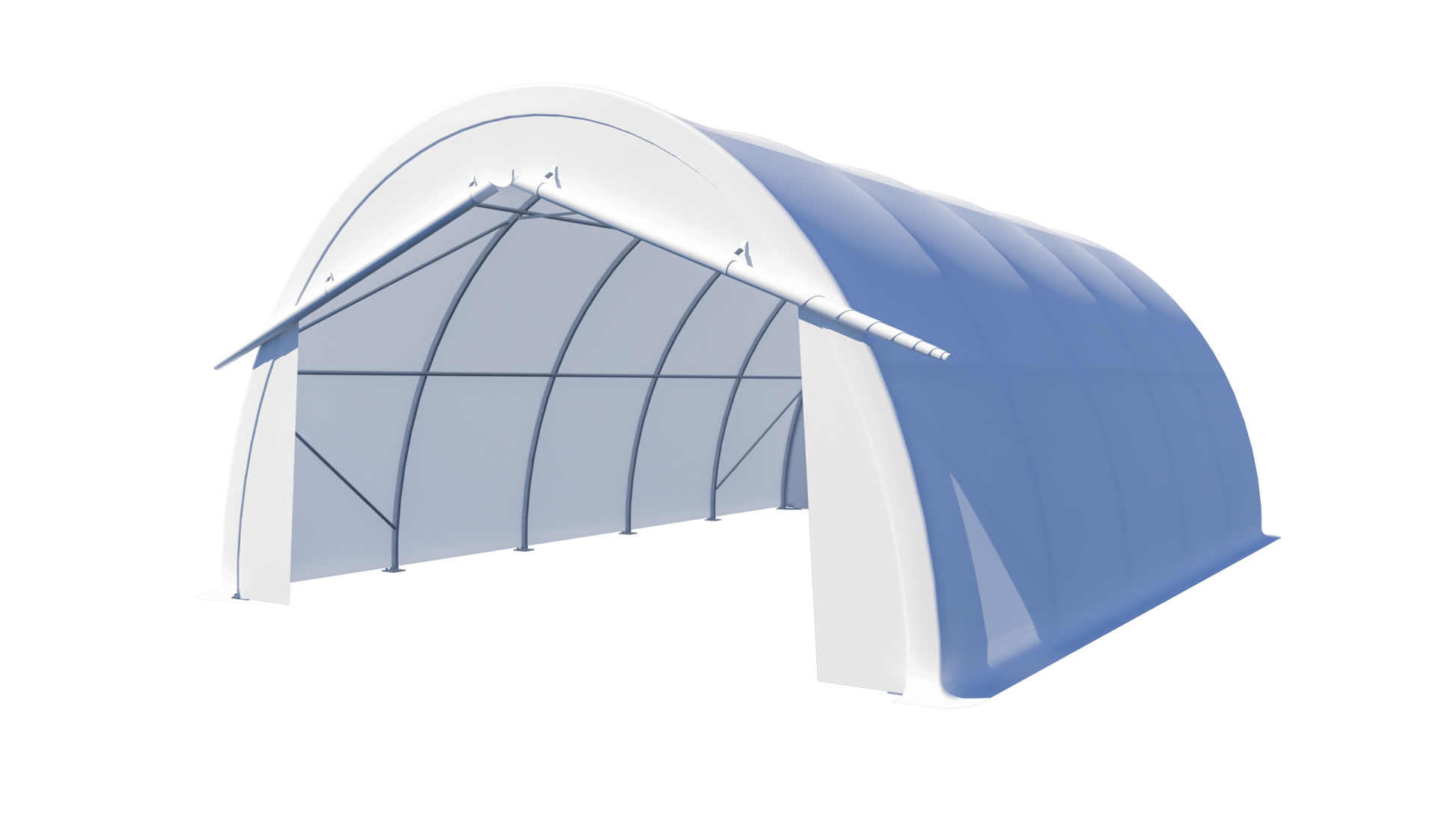

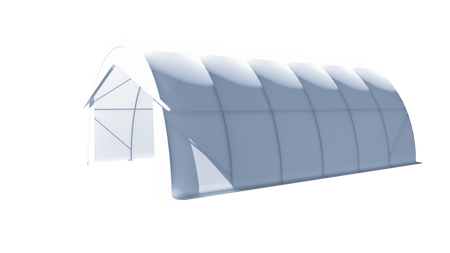

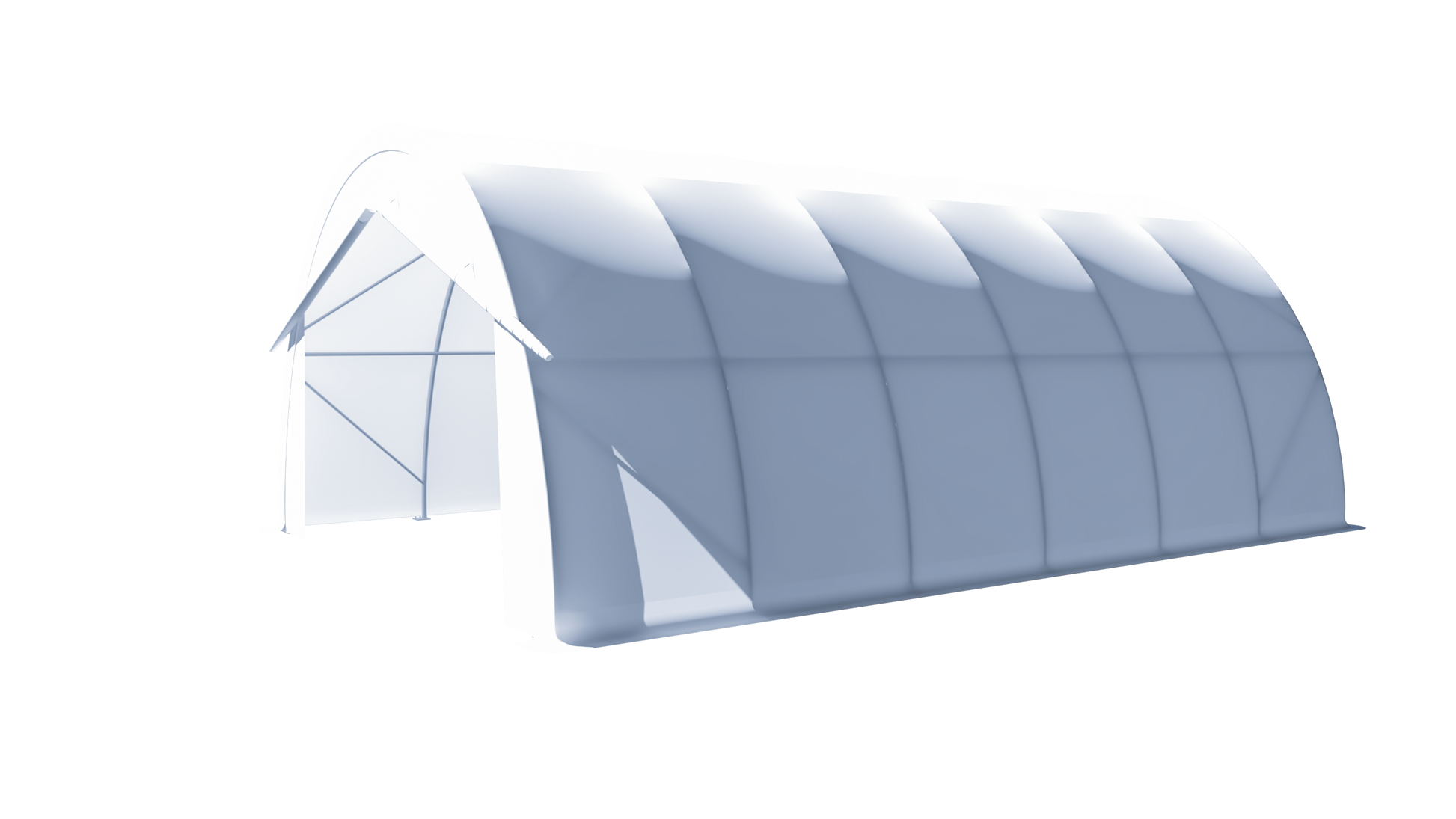

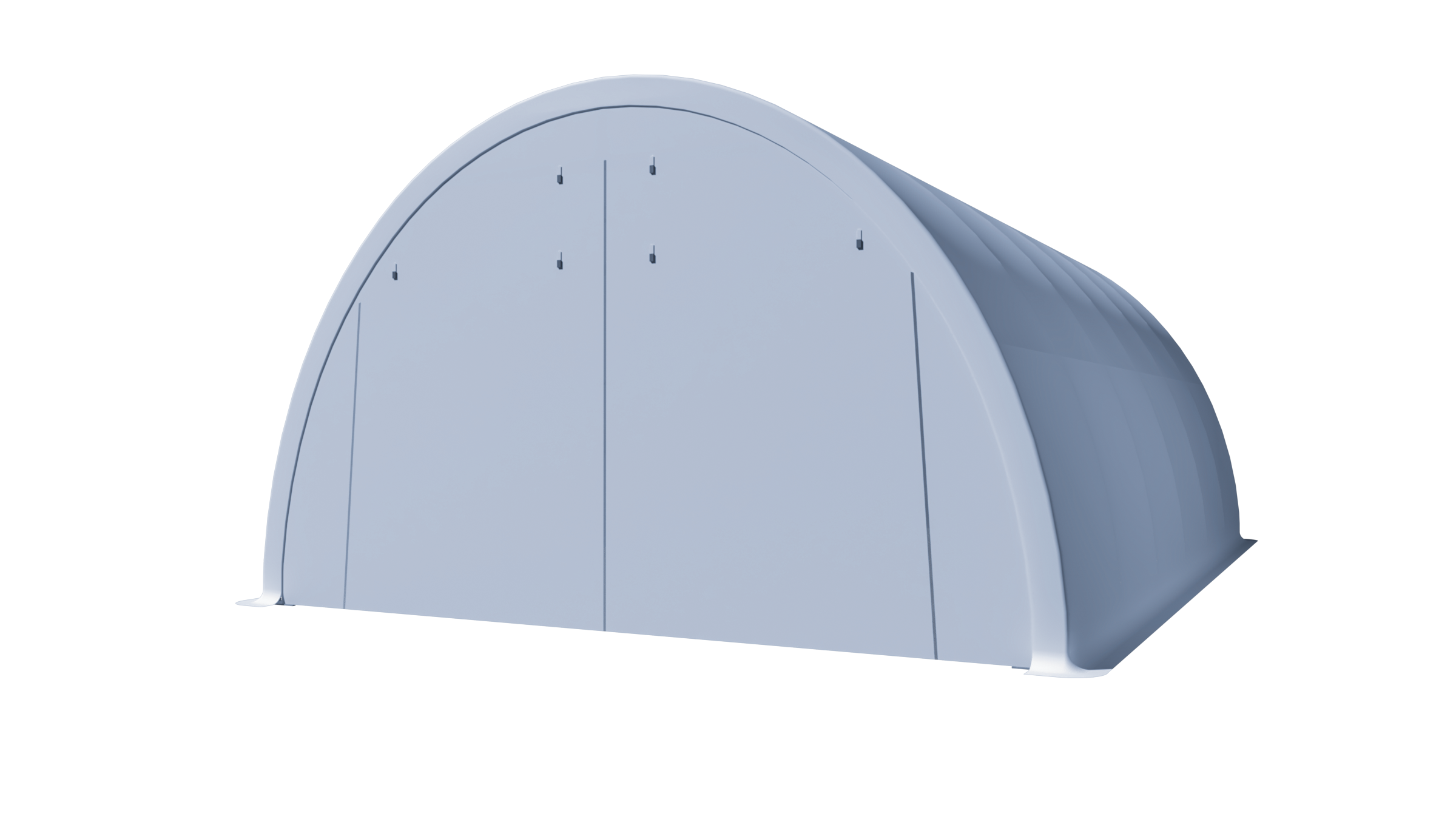

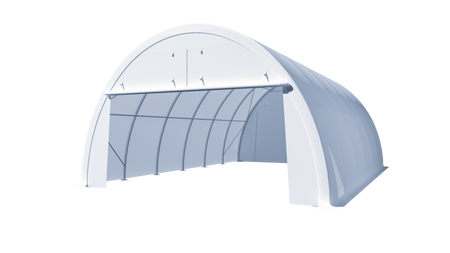

Gold Mountain Single Truss Round Storage Shelter W20'xL30'xH12'
Regular price
$3,250.00
Because this product is heavy when unloaded, if your delivery address is residential, please contact us to arrange the shipment.
Couldn't load pickup availability
Product details
- SKU SS-SR2030-300

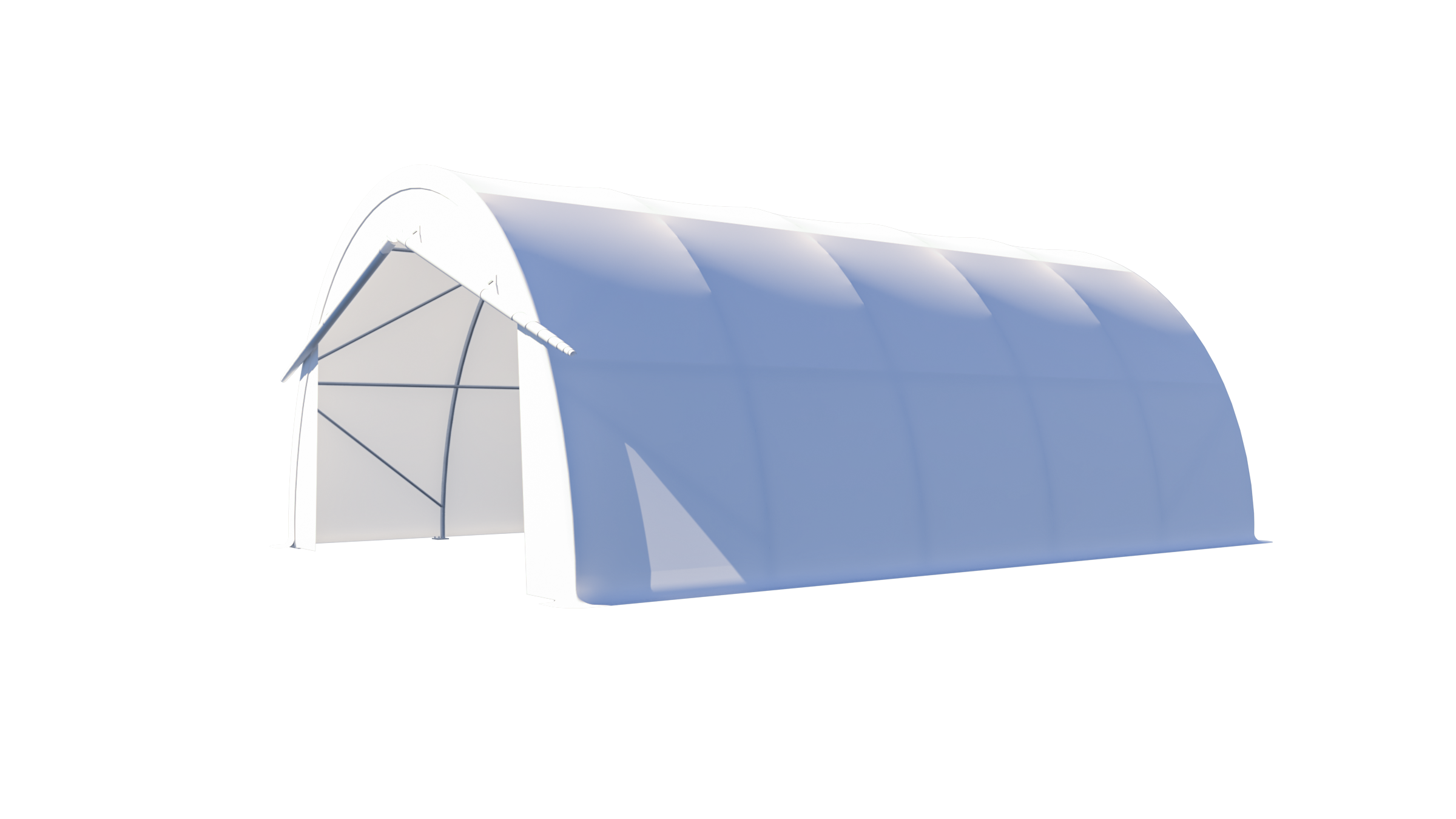

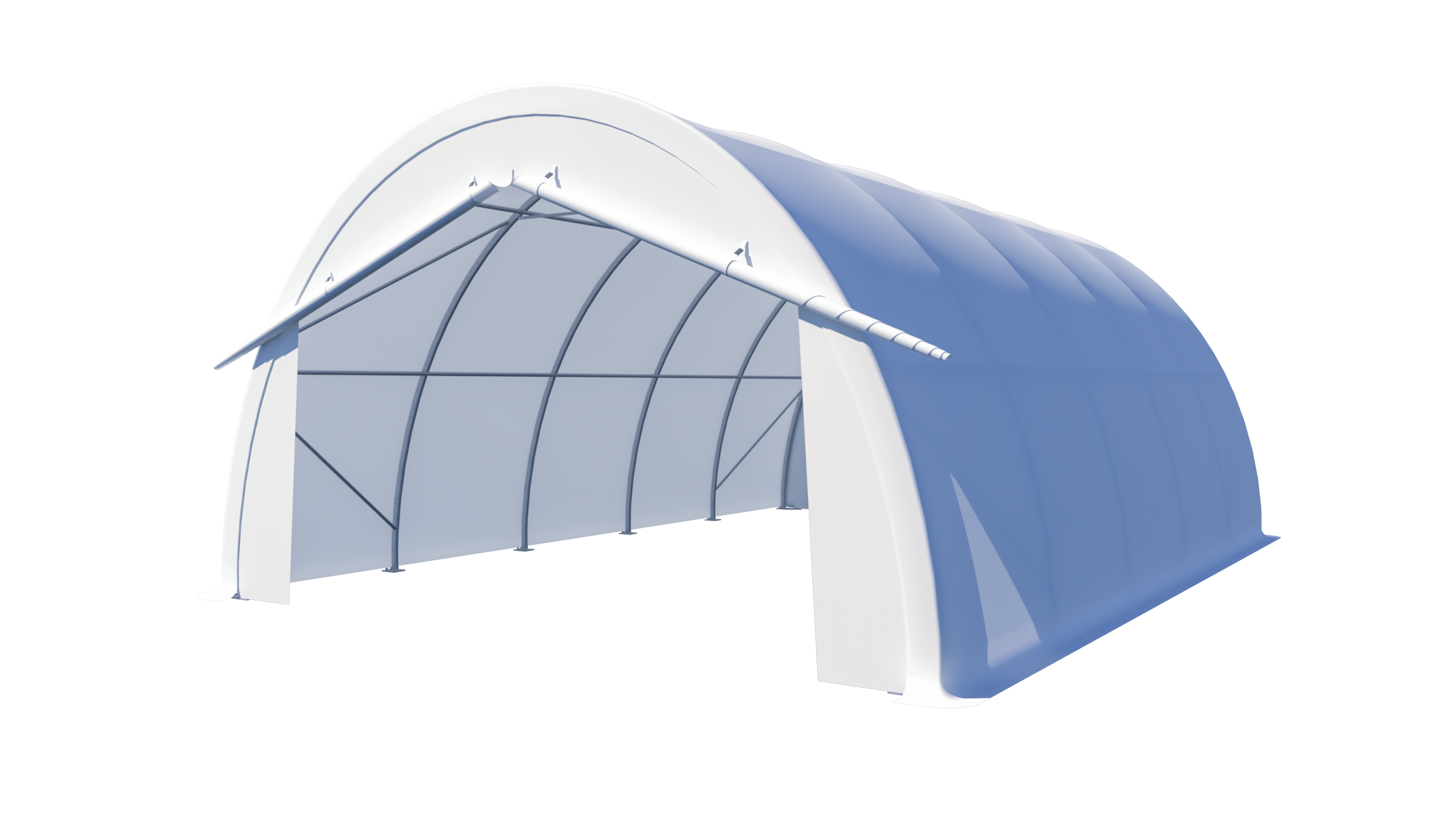

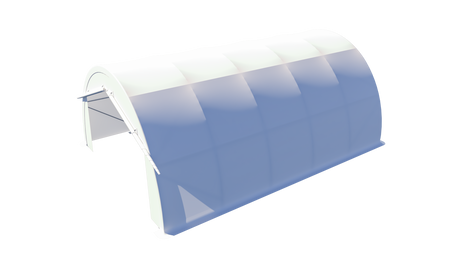

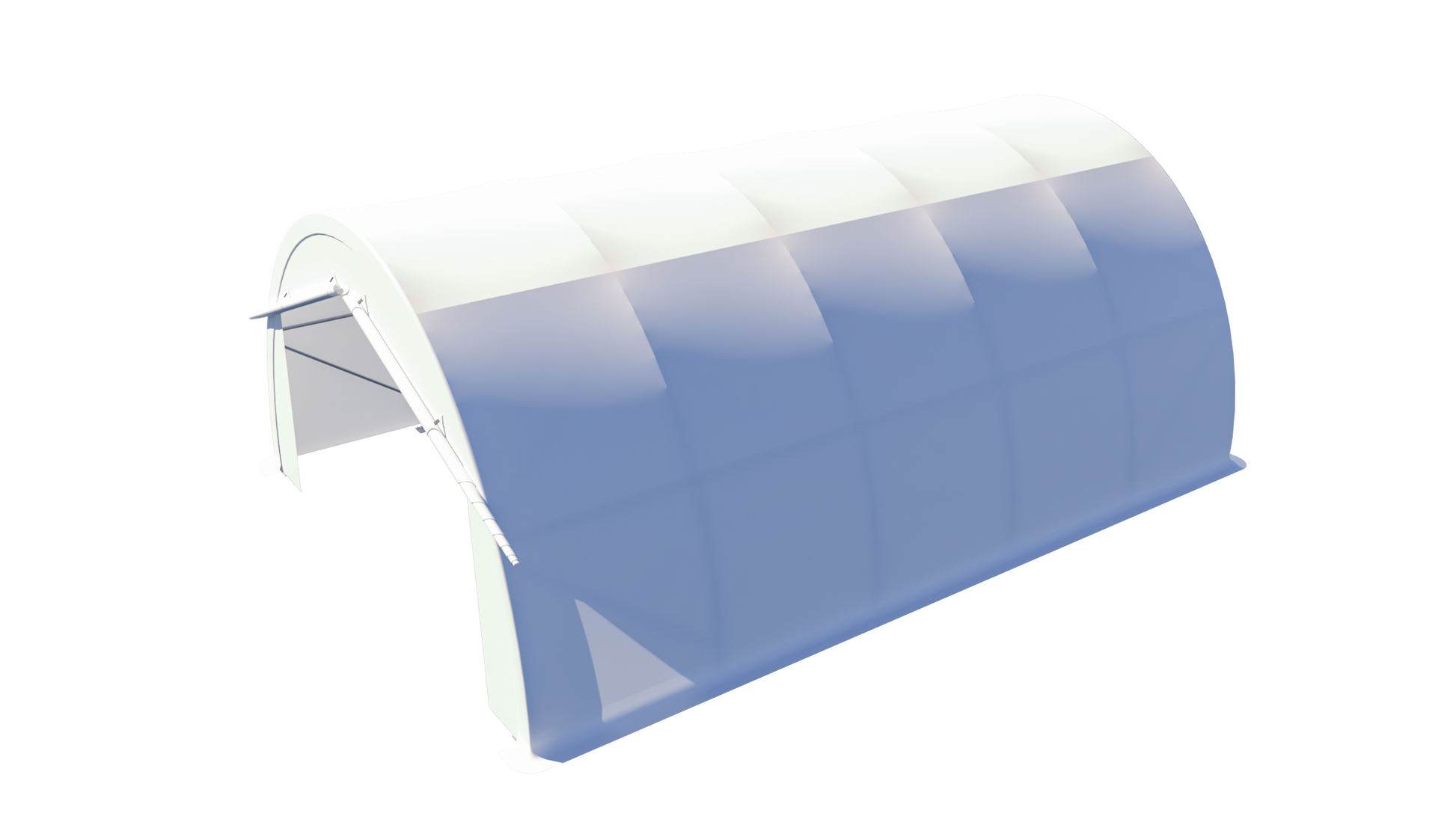

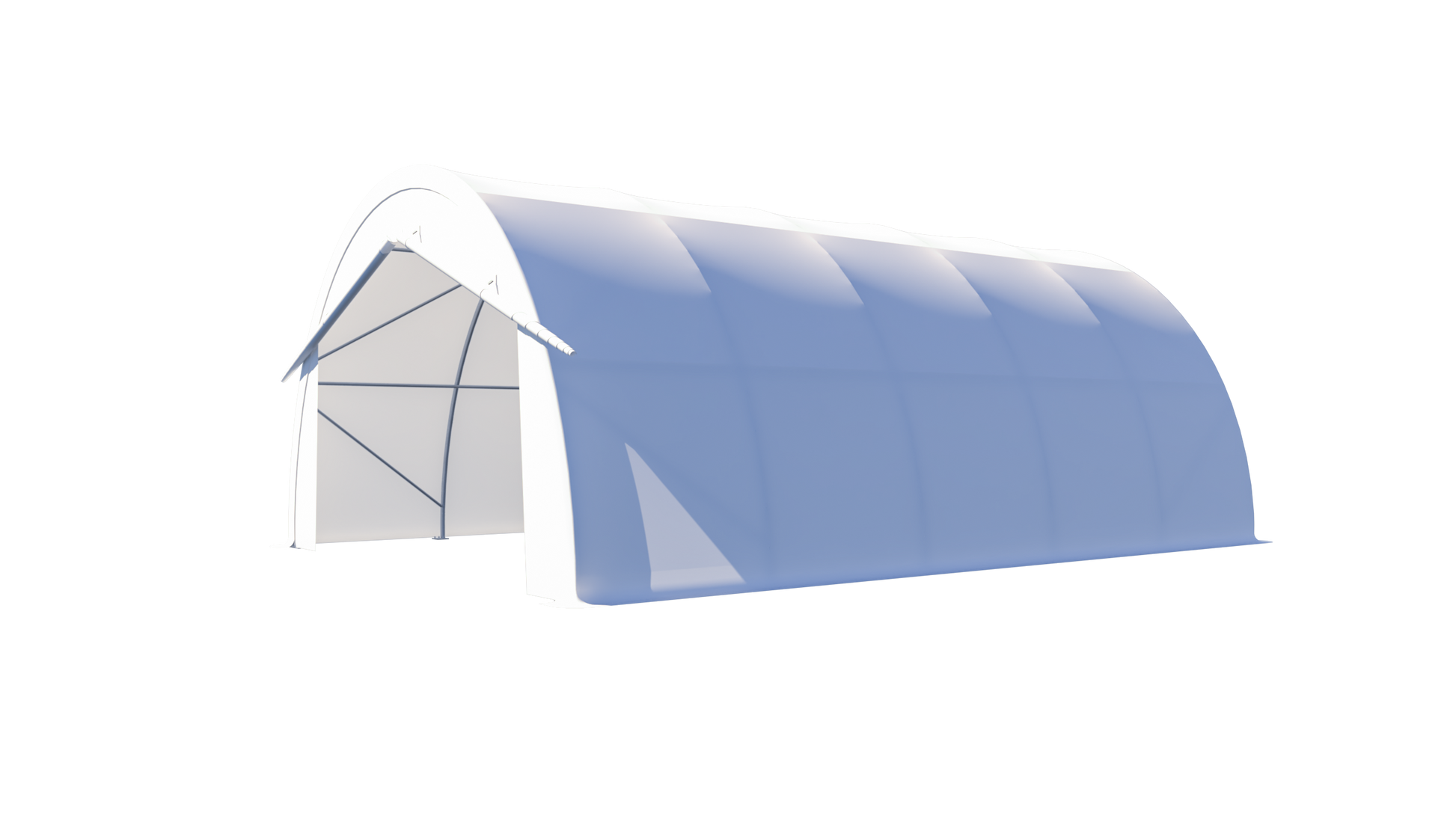

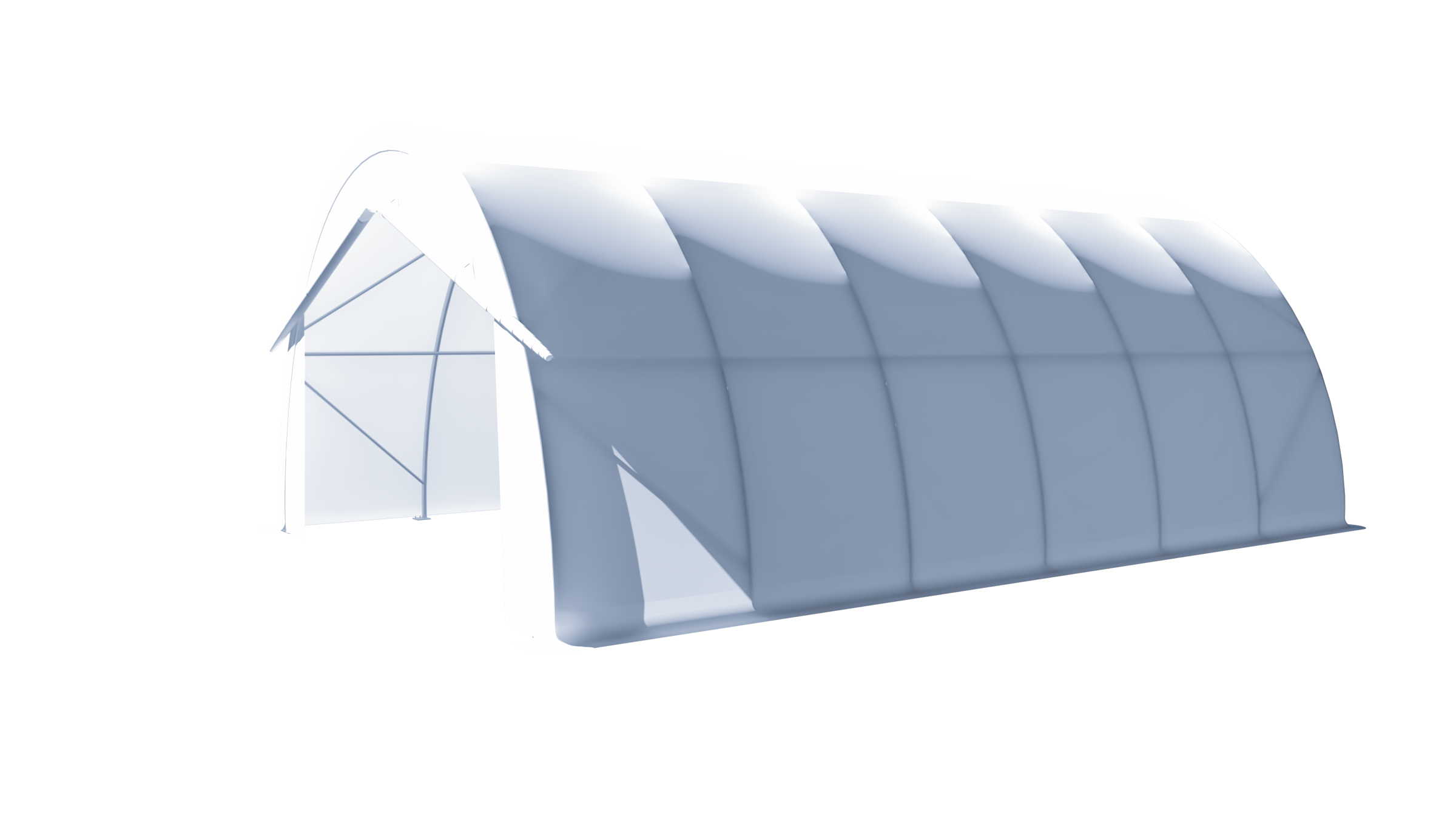

The Gold Mountain Single Truss Arch Storage Shelter L20'xW30'xH12' is the perfect choice for anyone looking for a reliable and durable storage solution. This truss construction storage shelter is designed to be resistant towards water, UV, and fading, and can last up to 7-10 years under the right conditions. It features a freestanding style, mechanical doors at both ends, and a huge capacity for trucks, automobiles, and more bulk storage. This storage shelter will protect your belongings from wind, snow, and rain, and has a CSA/TUV Snow Rating Test Report and SGS fabric Certificate to guarantee its quality. Whether you need to store equipment, materials, or recreational items, the Gold Mountain Single Truss Arch Storage Shelter L20'xW30'xH12' is the perfect choice.
It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tighten before next winter.
It’s the owners' responsibility to take off snow immediately if not slide off by itself.
Parts
- Cover replacement
- Front panel

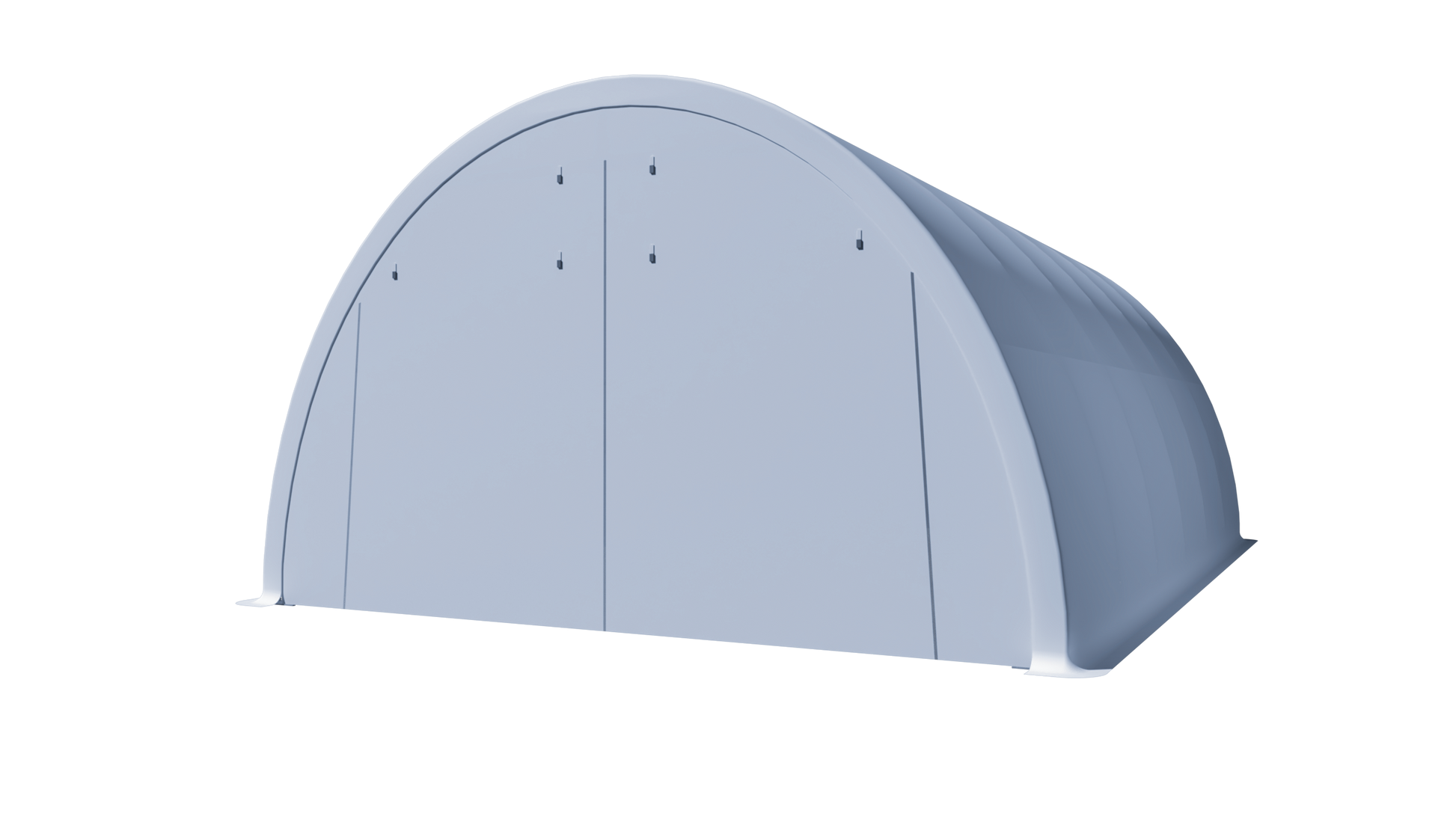

- Rear Panel
- Ratchet
- 12ft drive through the front door to end door
- An average 7-10 years of cover lifespan, depending on the environmental and weather conditions.
- Style: Freestanding

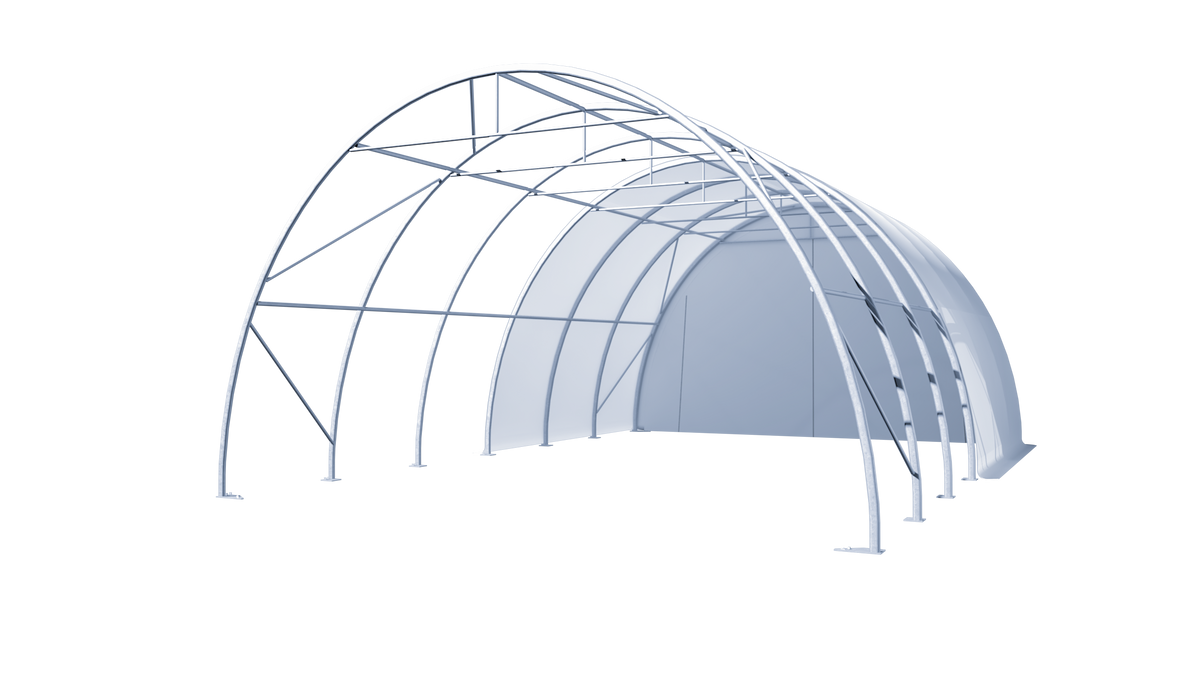

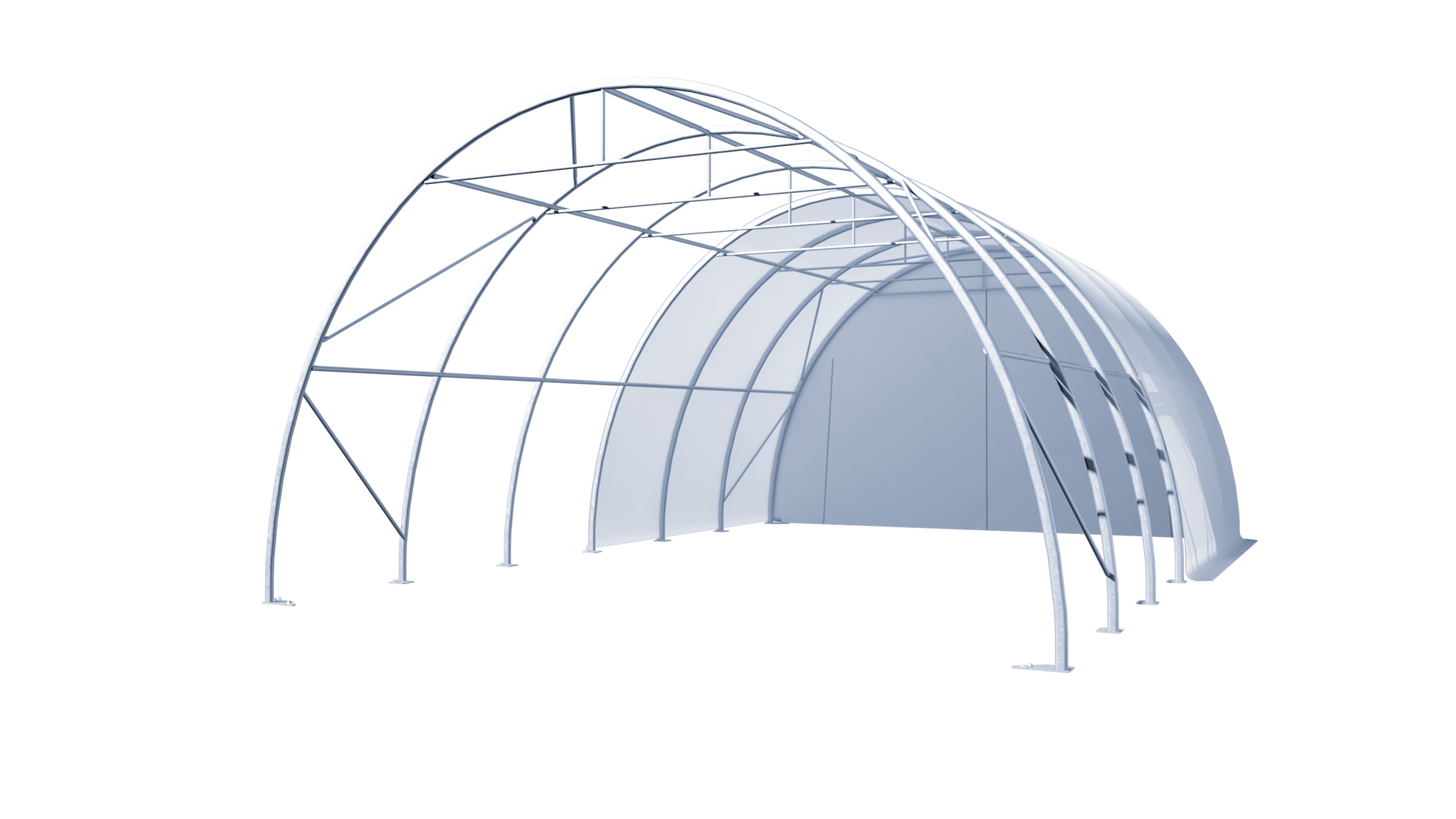

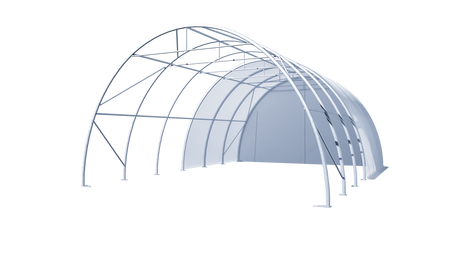

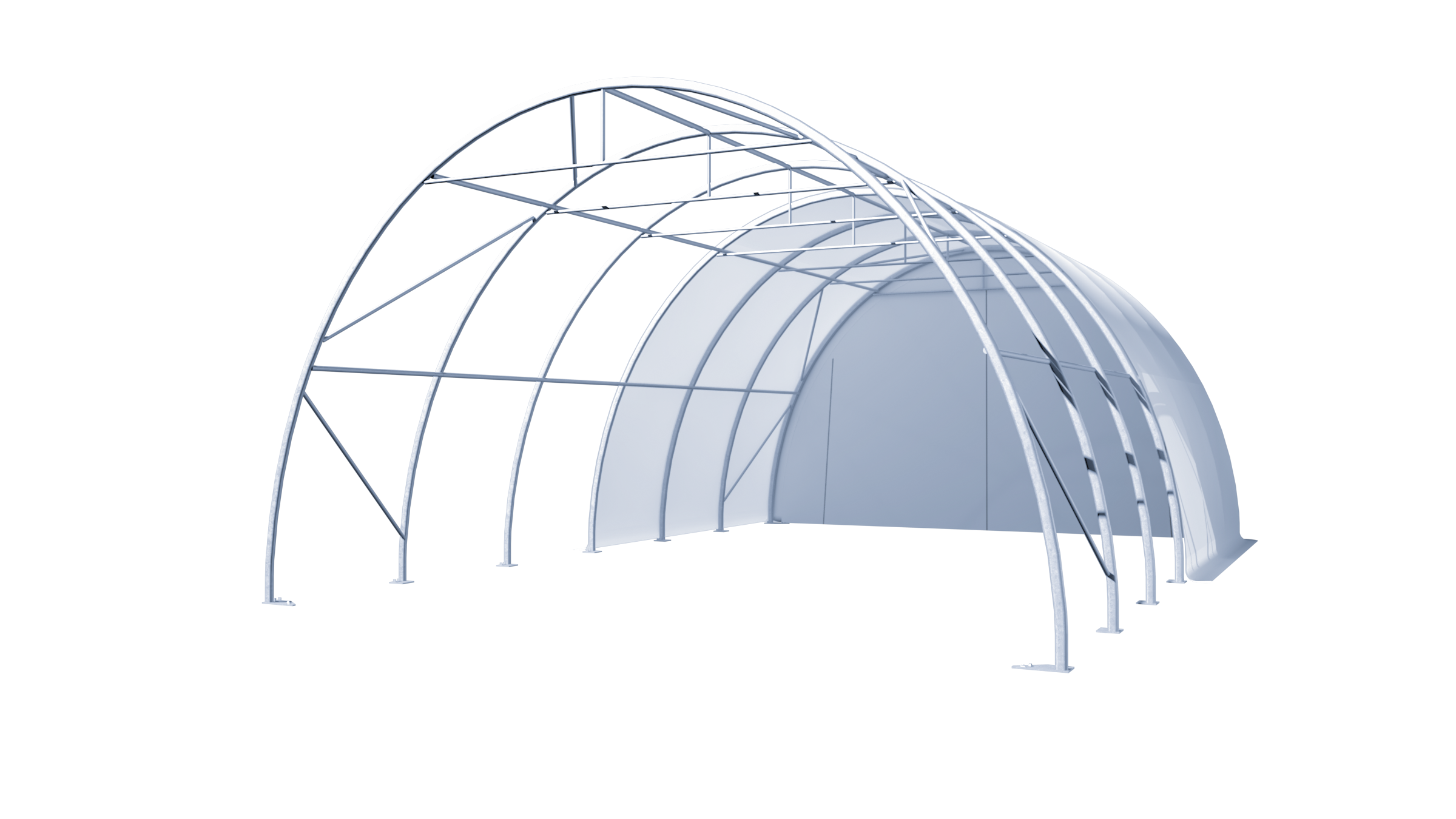

- Commercial grade galvanized steel tubes
- 100% waterproof, fire retardant, UV inhibitor
- Simple assembly, super easy to install
- CSA/TUV Snow Rating Test Report
- SGS fabric Certificate
- Type: Prefabricated Building
- Condition: New

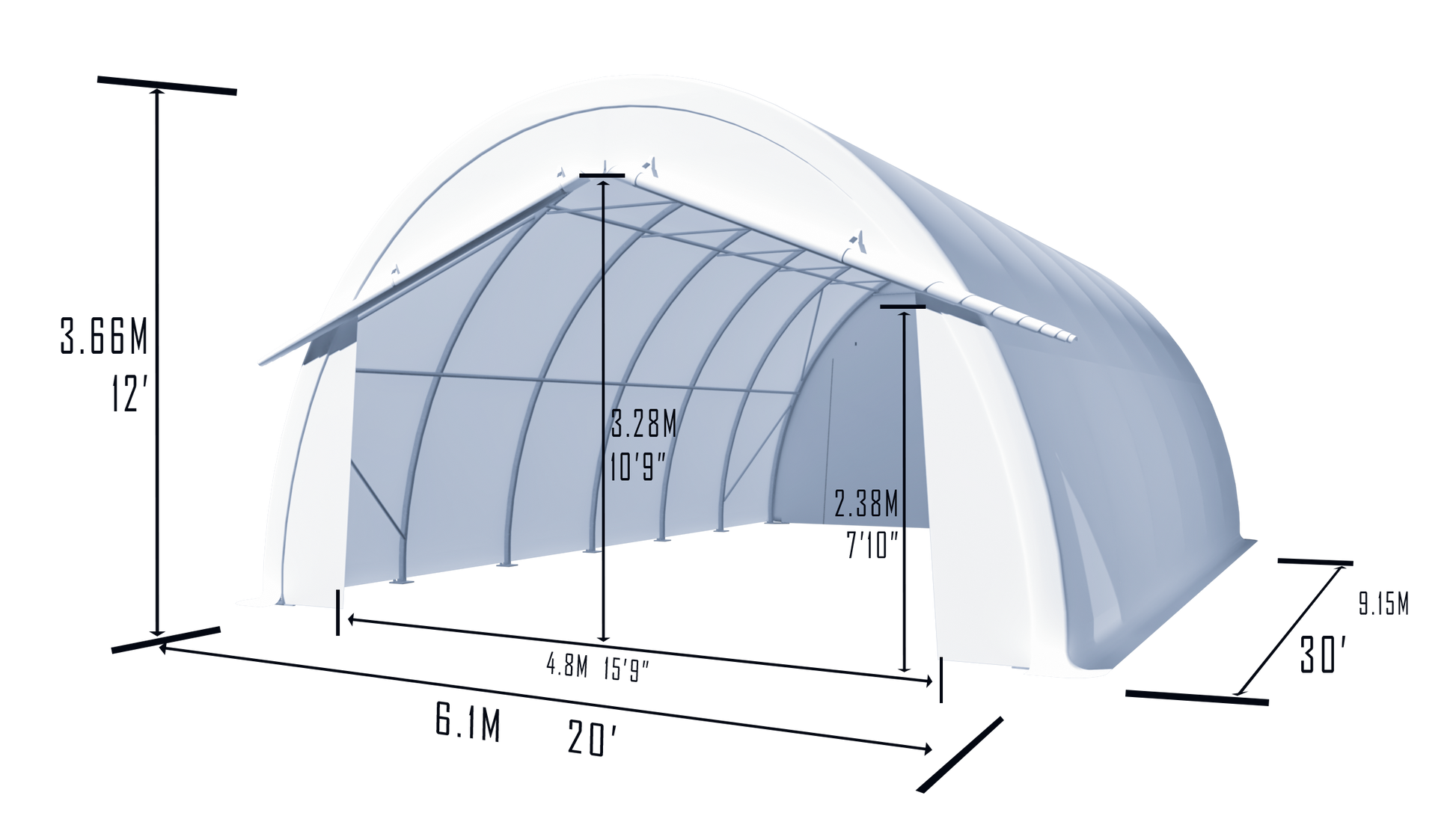

Product Dimension |
6.1m*9.15m*3.66m/20'*30'*12' |
Floor Footprint |
55.74m2/600ft2 |
Highest Height |
3.66m/12’ |
Frame Material |
Galvanized Steel |
Cover Material |
PVC/PE |
Main Arch Tube Diameter |
42mm/1.65'' |
Main Arch Tube Thickness |
1.5mm/0.06'' |
Main Arch Space |
1.83m/6' |
Purlin Tube Diameter |
40mm/1.57'' |
Purlin Tube Thickness |
1.5mm/0.06'' |
Door Size |
4.3m*3.2m/14.1'*10.5' |
Snow Rate Test Result:
203012R |
Test Load |
Deflection |
|||
Lb |
Kpa |
Point A (inch) |
Point B (inch) |
Point C (inch) |
|
Step 1 |
0 |
0 |
0 |
0 |
0 |
Step 2 |
1005 |
1.52 |
1.4 |
1.6 |
1.2 |
Step 3 |
1507 |
2.28 |
2.2 |
2.3 |
1.6 |
Step 4 |
Keep the test load until 30 minutes |
||||
Step 5 |
Remove the test load |
0.6 |
1.1 |
1.2 |
|
Step 6 |
The test sample can withstand the applied test load without damage. |
Material |
Package Size |
Package Weight |
300gPE |
2.2m*0.75m*0.5m/86.61"*29.53"*19.69" |
380kg/836lbs |
420gPVC |
2.2m*0.75m*0.5m/86.61"*29.53"*19.69" |
385kg/847lbs |
450gPVC |
2.2m*0.75m*0.5m/86.61"*29.53"*19.69" |
395kg/869lbs |
We’ve got you covered with comprehensive warranties for all of our shelters:
- Single Truss (PE Material): 2-year warranty
- Single Truss (PVC Material): 3-year warranty
- Double Truss: 5-year warranty
