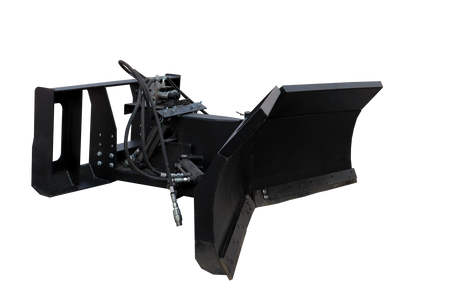

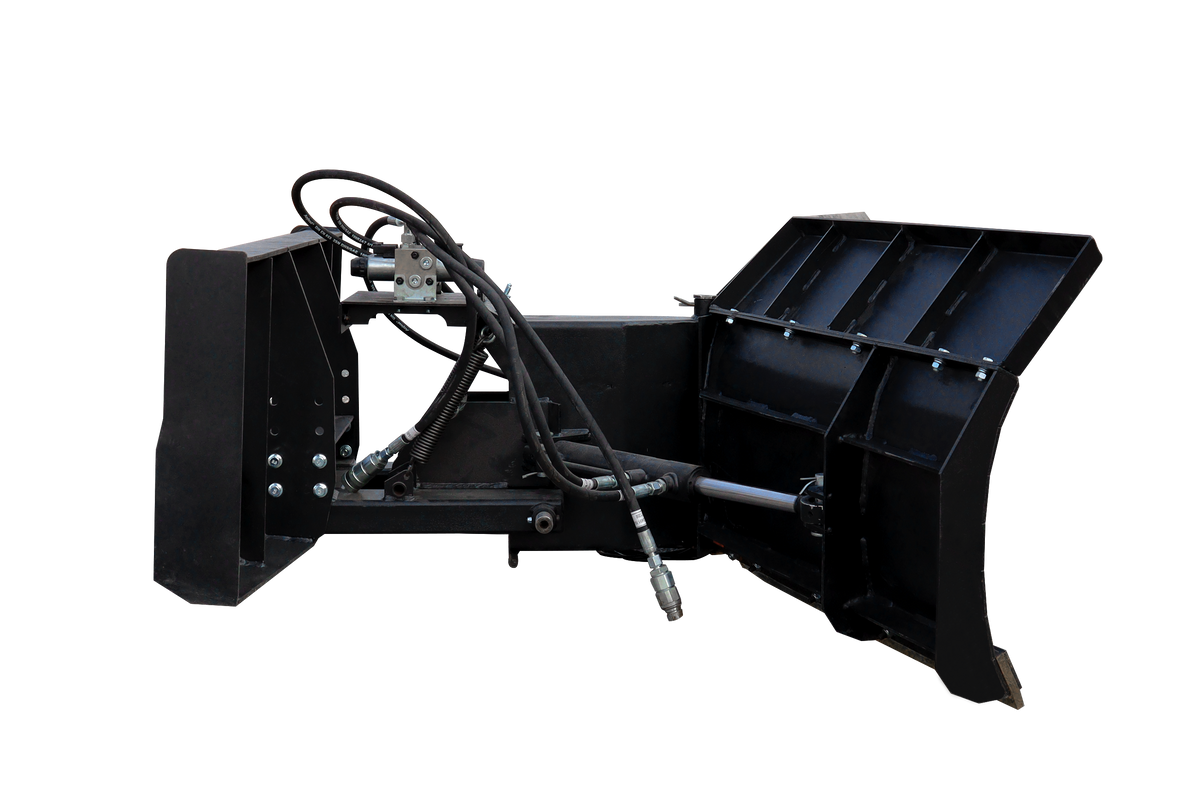

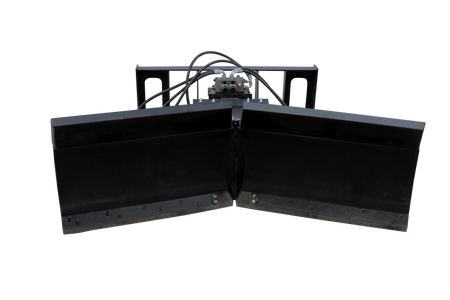

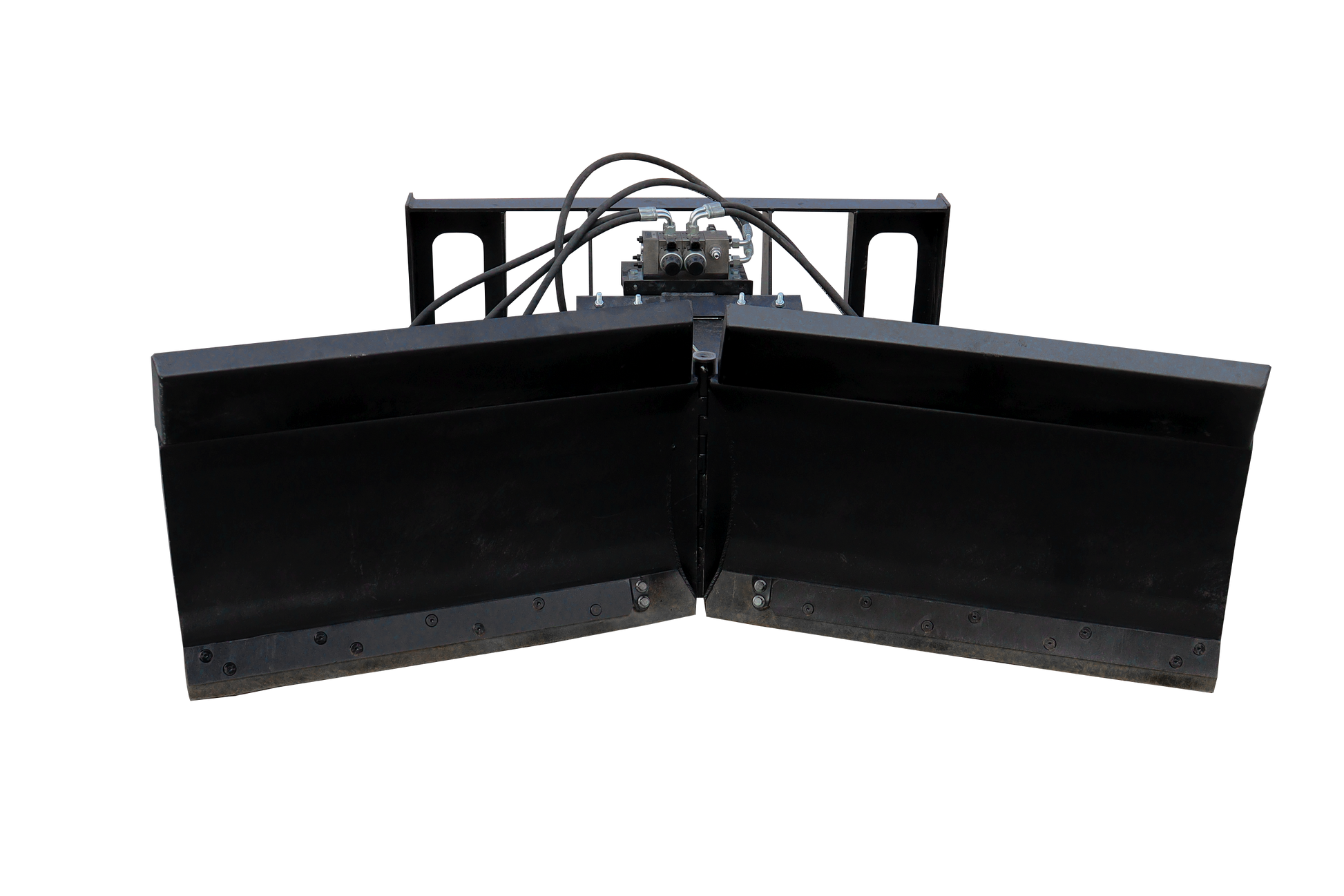

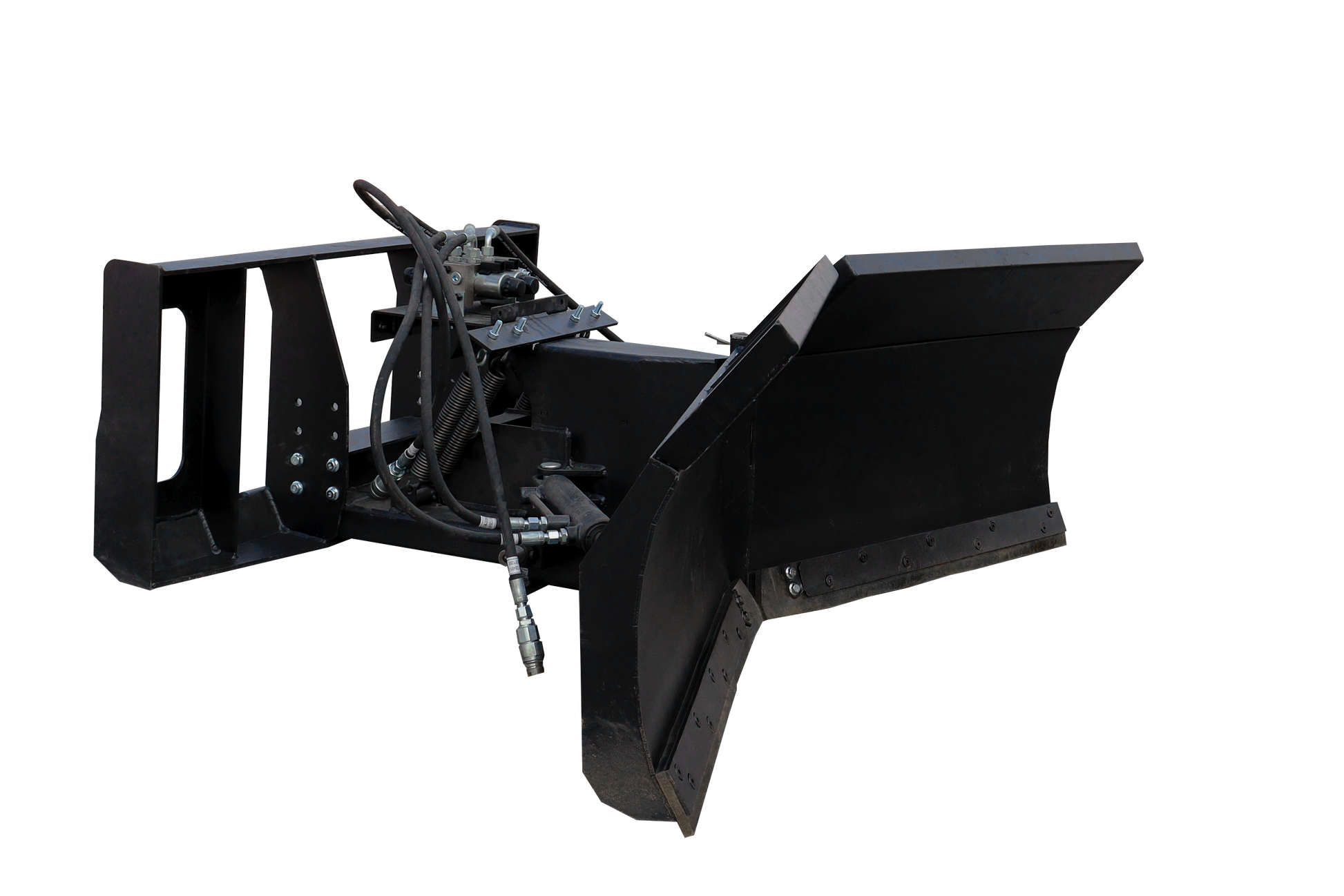

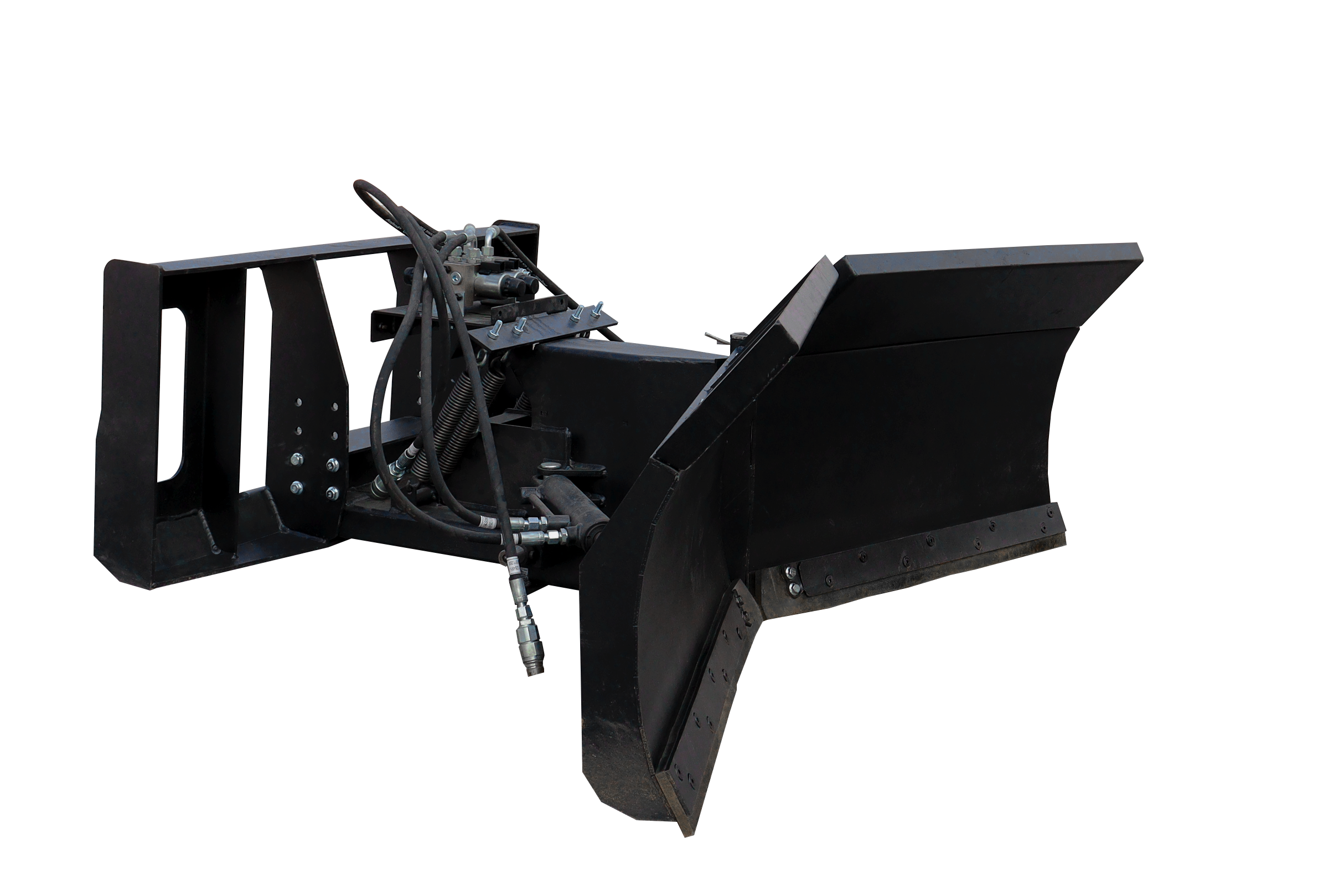

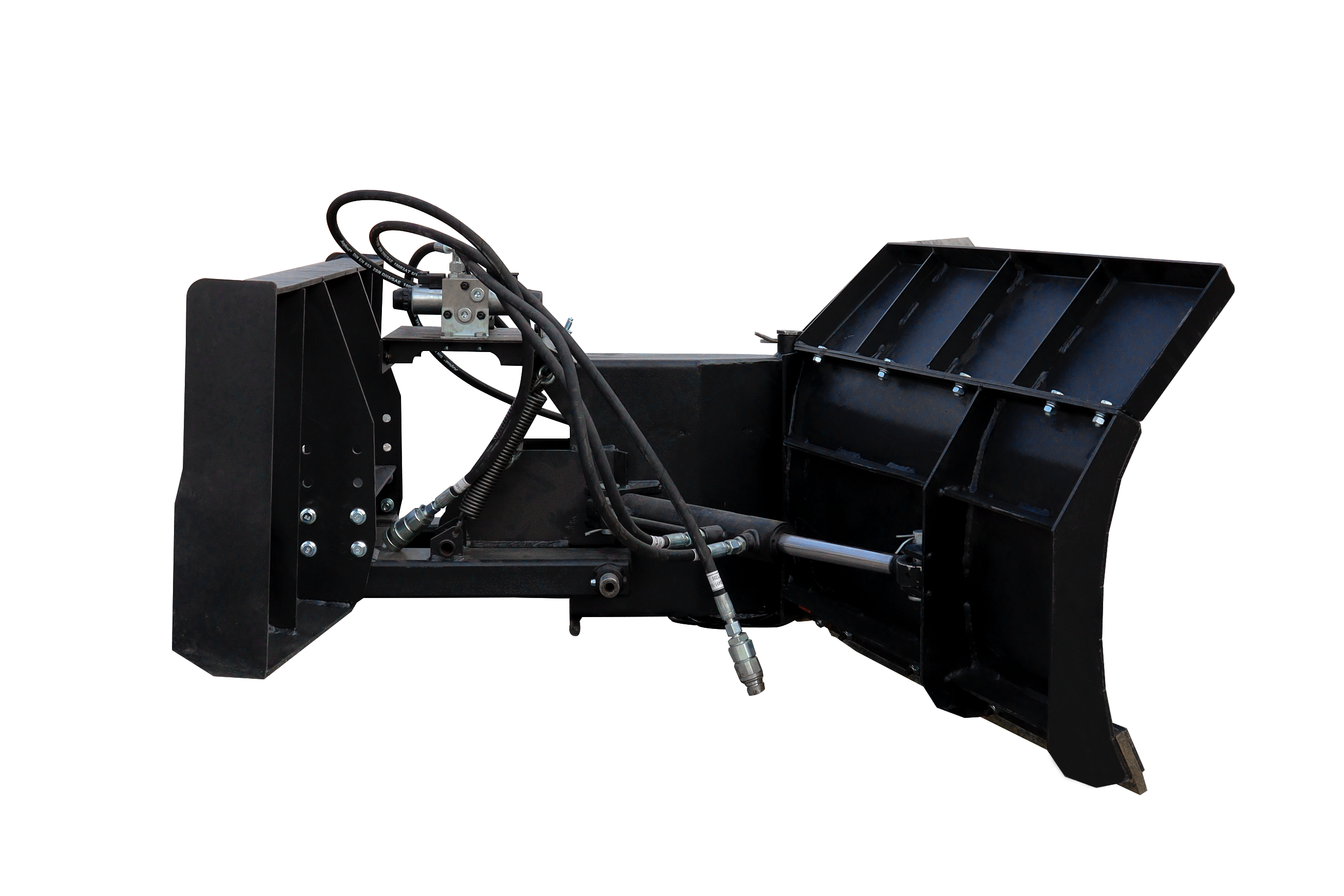

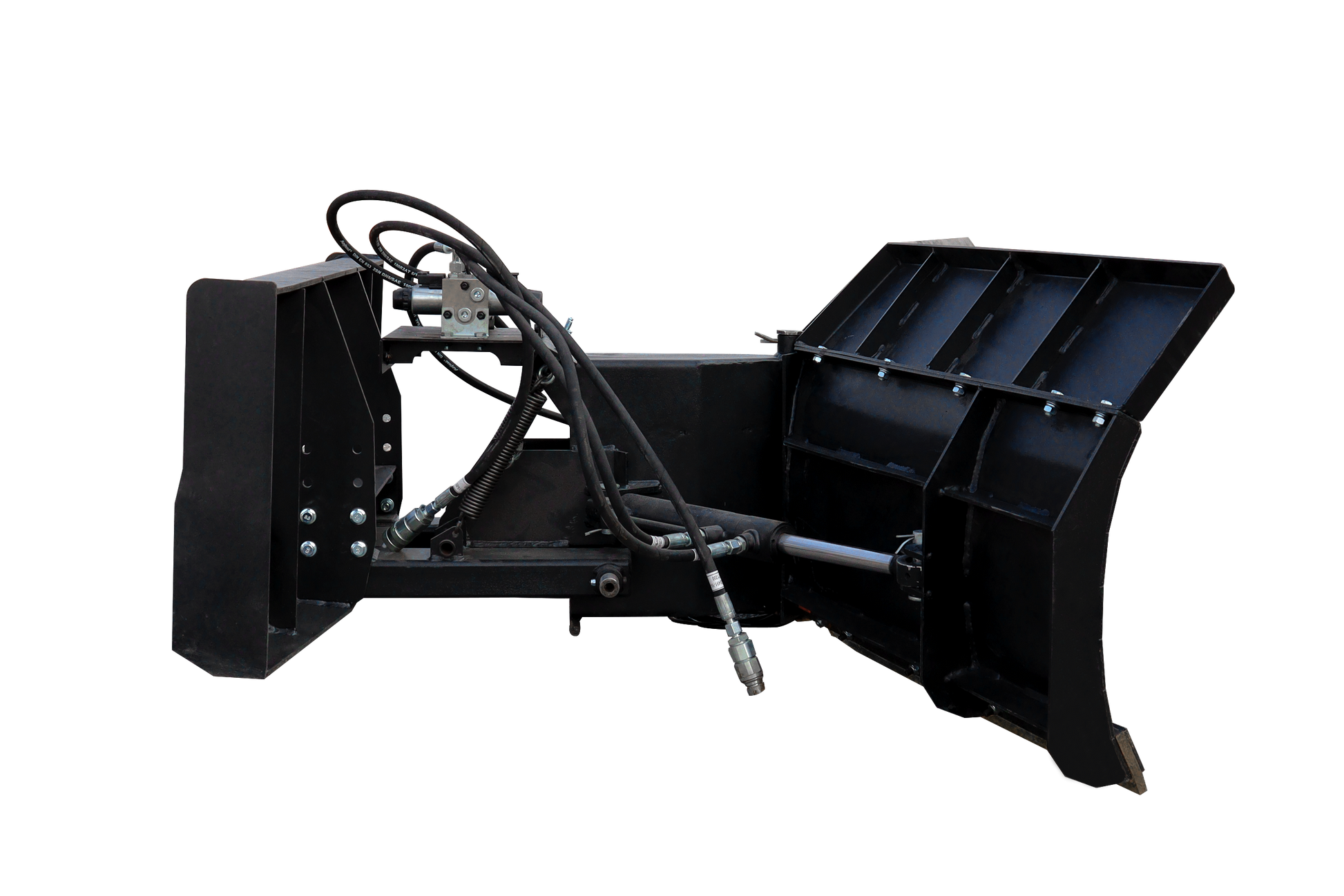

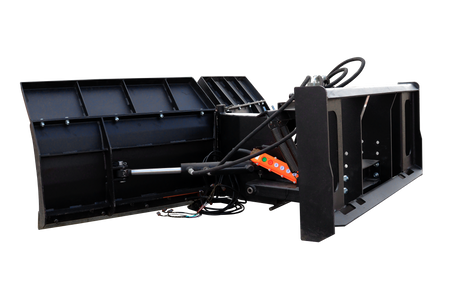

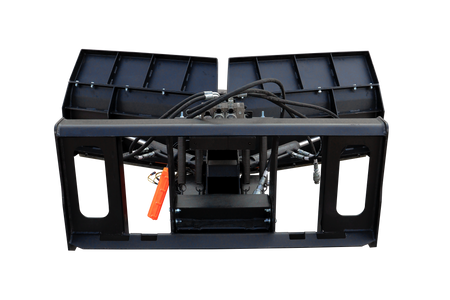

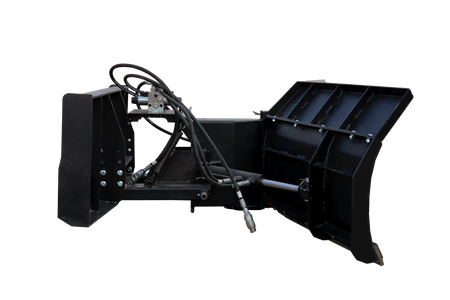

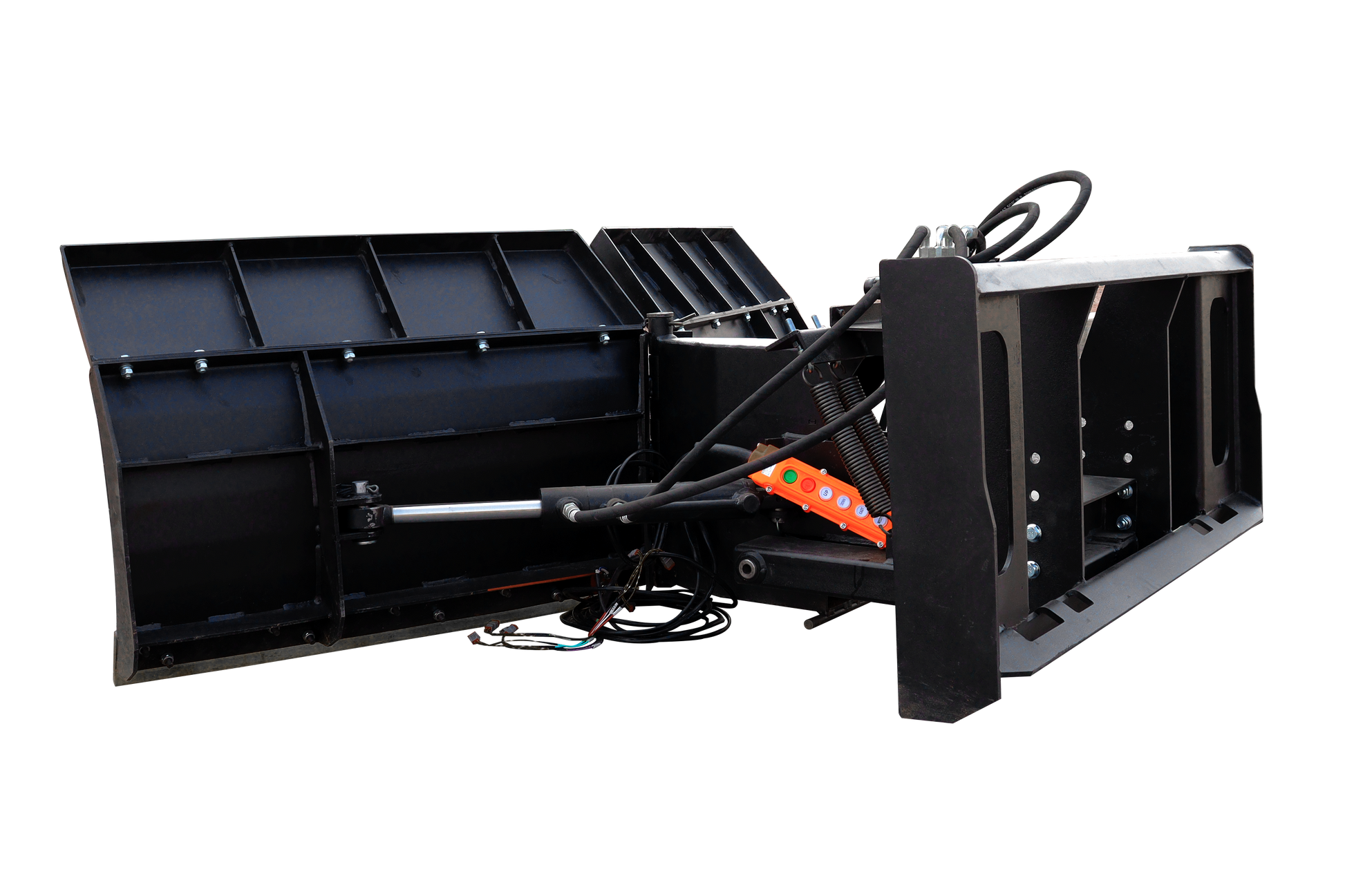

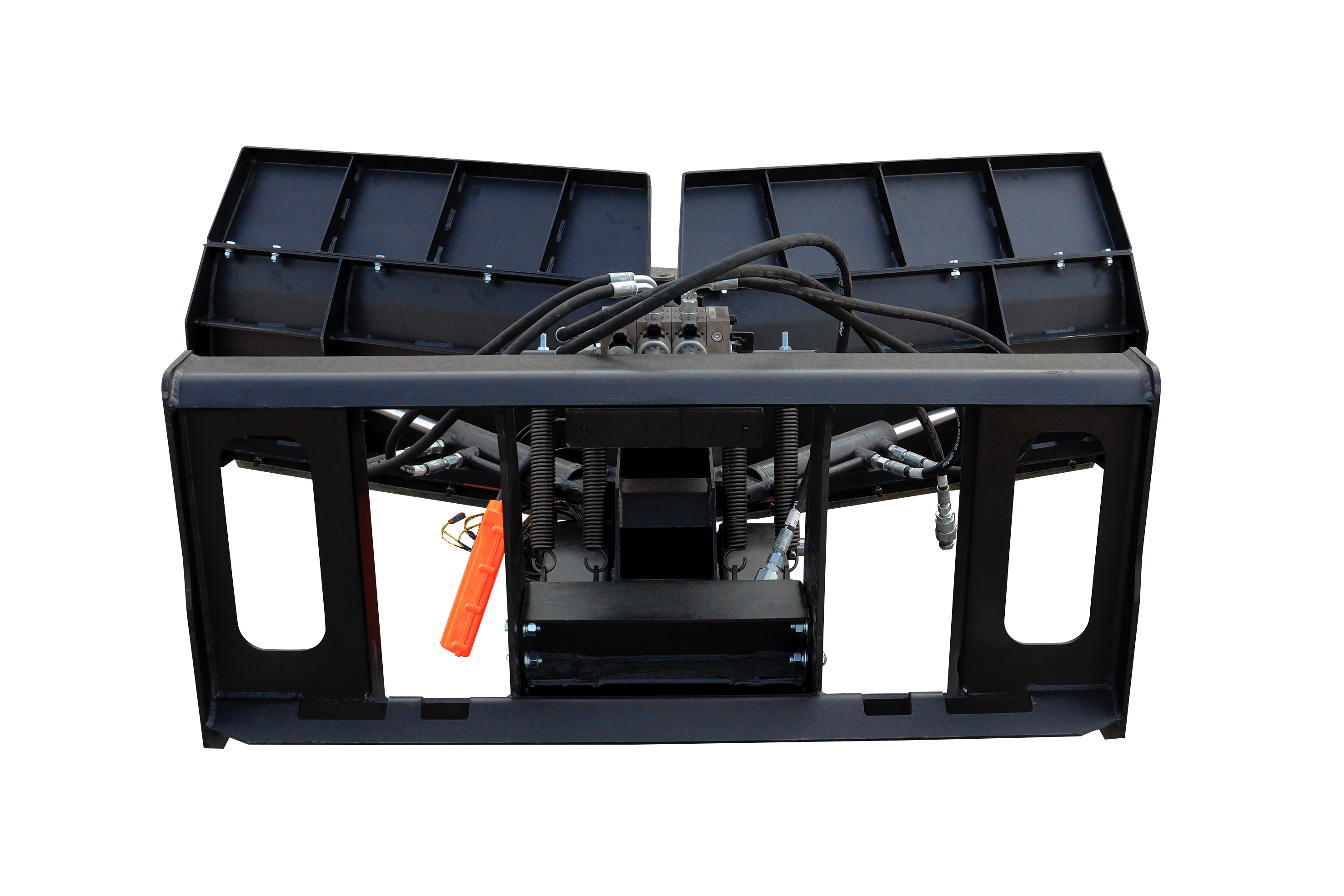

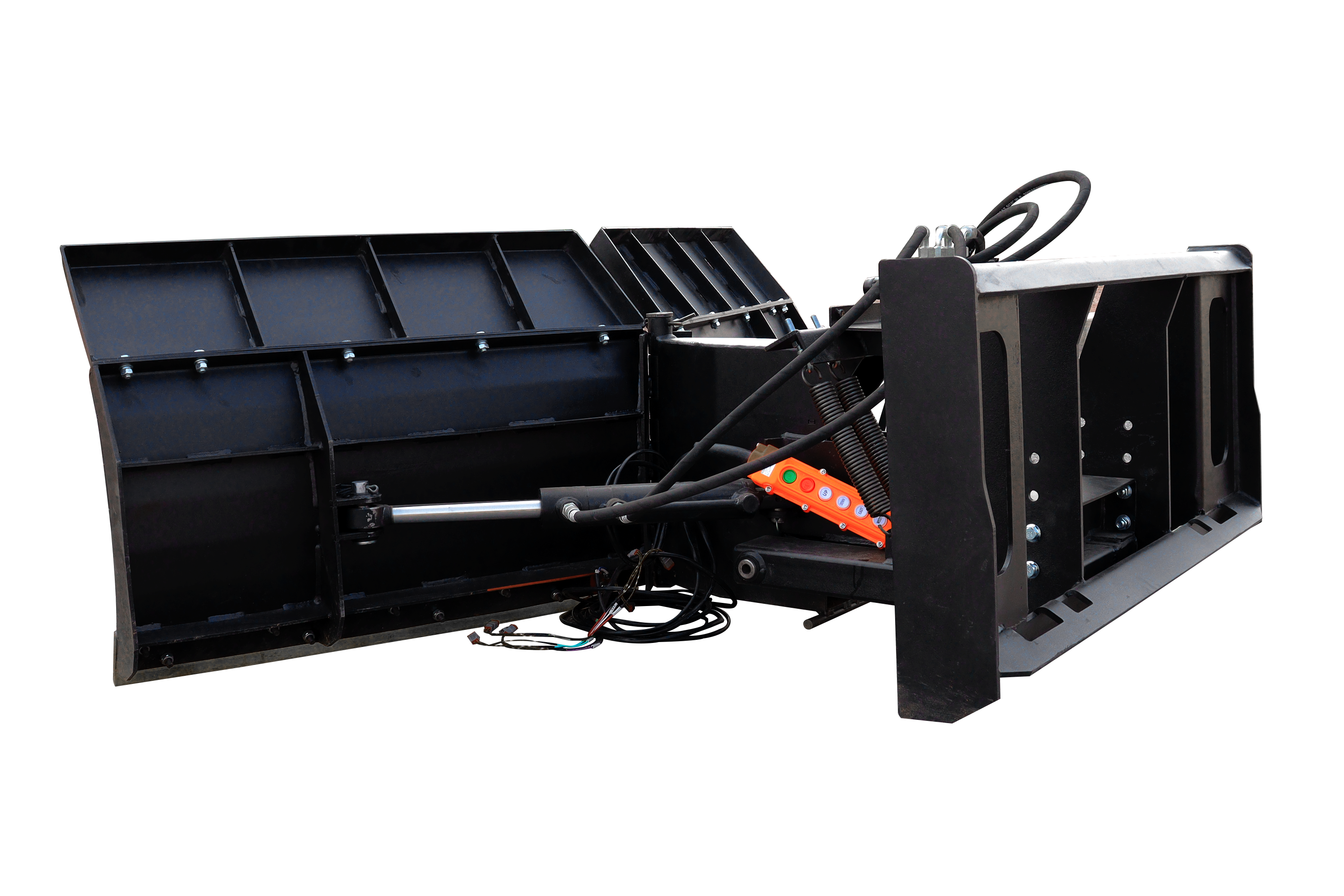

Greatbear 72'' Hydraulic Snow Plow - V Blade

Only 4 left
SKU: AT-SPV-72
Regular price $1,650.00
Regular price $2,750.00 -40% Sale price $1,650.00

Hydraulic Snow Plow - V Blade

U-shaped snow removal
Angle between angles:137°
Snow removal width:1670mm

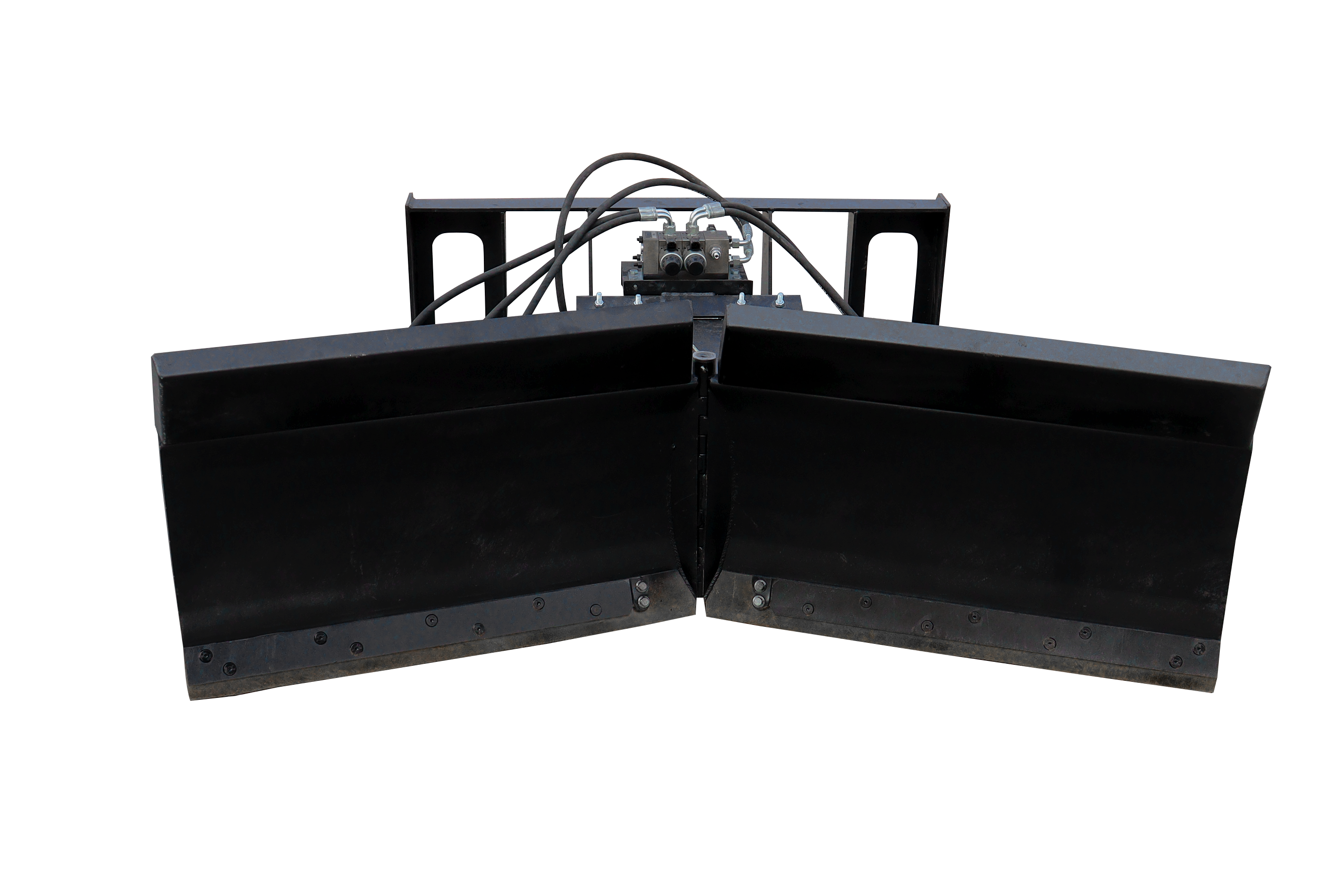

V-shaped snow removal
Angle between angles:137°
Snow removal width:1750mm
Single-line snow removal
Angle between angles:0°
Snow removal width:1835mm
Inclined onesided shape
Maximum inclination angle22°
Snow removal width:1700mm

Hydraulic Snow Plow - V Blade

U-shaped snow removal
Angle between angles:137°
Snow removal width:1670mm
V-shaped snow removal
Angle between angles:137°
Snow removal width:1750mm
Single-line snow removal
Angle between angles:0°
Snow removal width:1835mm
Inclined onesided shape
Maximum inclination angle22°
Snow removal width:1700mm
  • It has the combined functions of pushing and throwing snow, with a large cutting force and better wear resistance;
  • The shovel blade is made of wear-resistant polyurethane material, providing better snow removal effect without damaging the road surface;
  • It has an independent hydraulic control system, allowing separate control of the two cylinders and various shape transformations;
  • Suitable for various snow removal scenarios and requirements:
    ①, V-shaped state: Narrow roads and emergency rescue to open one-way roads, etc., divide the snow on both sides of the road;
    ②, Straight line state: Snow removal work on open roads such as highways and factory areas, direct push snow removal;
    ③, Inverted straight line state: Snow removal work on open roads such as highways and factory areas, divide the snow on one side of the road; maximum inclination angle 23°
    ④, U-shaped state: Used for snow removal and gathering, stacking snow, etc.;
  • The combination of these functions significantly improves the efficiency and effect of snow removal;
  • It uses a stretching spring for buffering and vibration reduction, and can be used for snow removal operations on uneven roads.
Item Parameters
Size L957 × W1812 × H637 mm
Weight 202 kg
Working width 1830 mm
Angle of the plow inclination blade ±22°
Blade (L × W × H) 887 × 85 × 12 mm
Package size W1010 × L1860 × H600 mm
Package rock weight 48 kg
Package Dimensions Package Weight

We’ve got you covered. All of our products come with a 1-year warranty, ensuring your purchase is protected. If you ever need assistance or replacement parts, our dedicated customer service team is always ready to help.

Product Manuals & Documents (Manuels et documents sur les produits)

Manual-V_Snow_Plow_1.pdf
