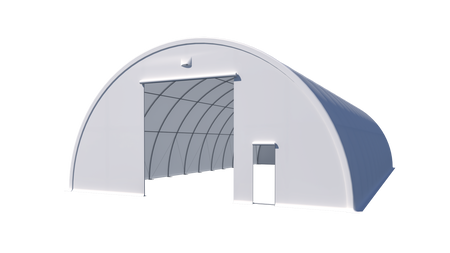

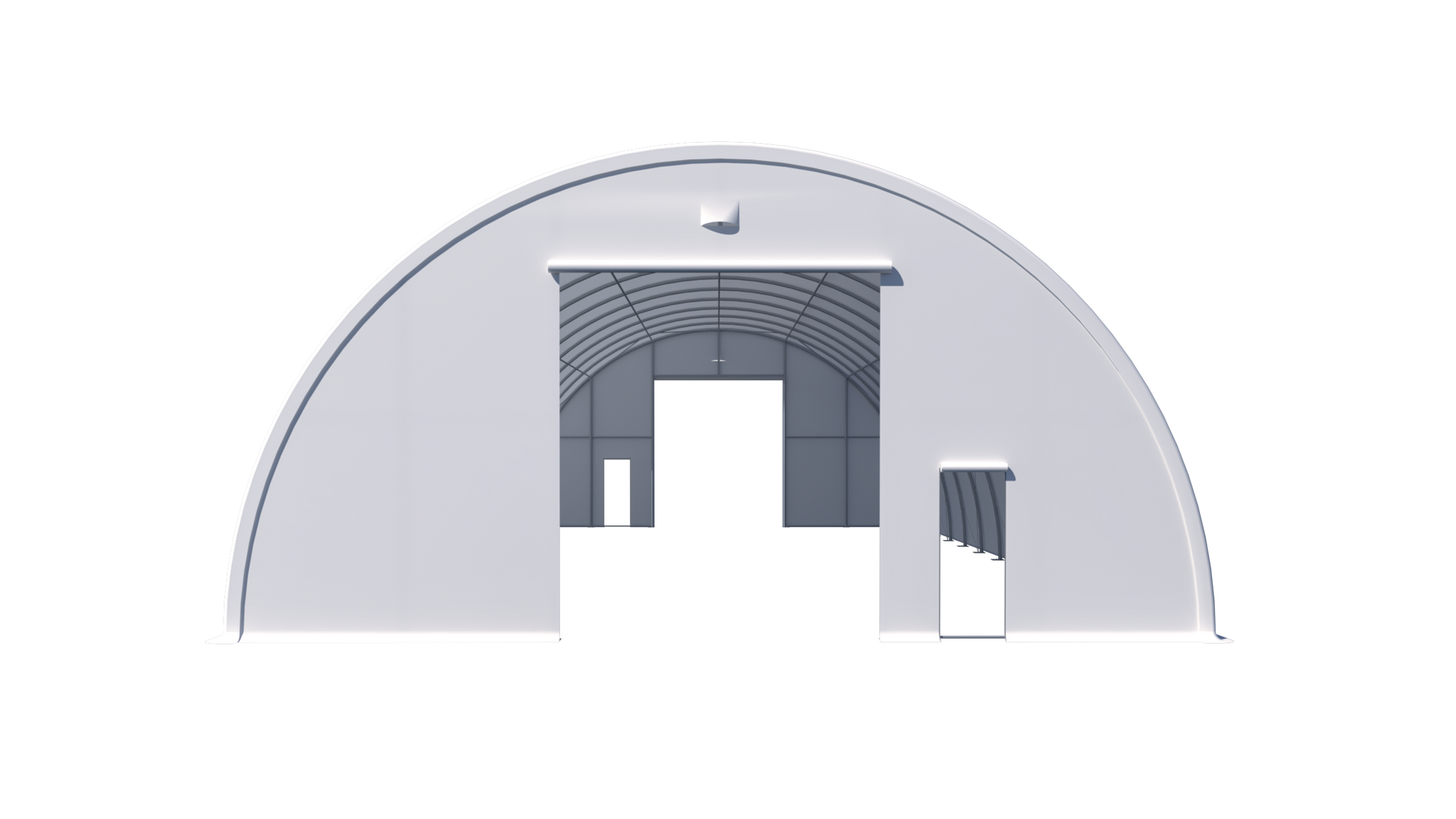

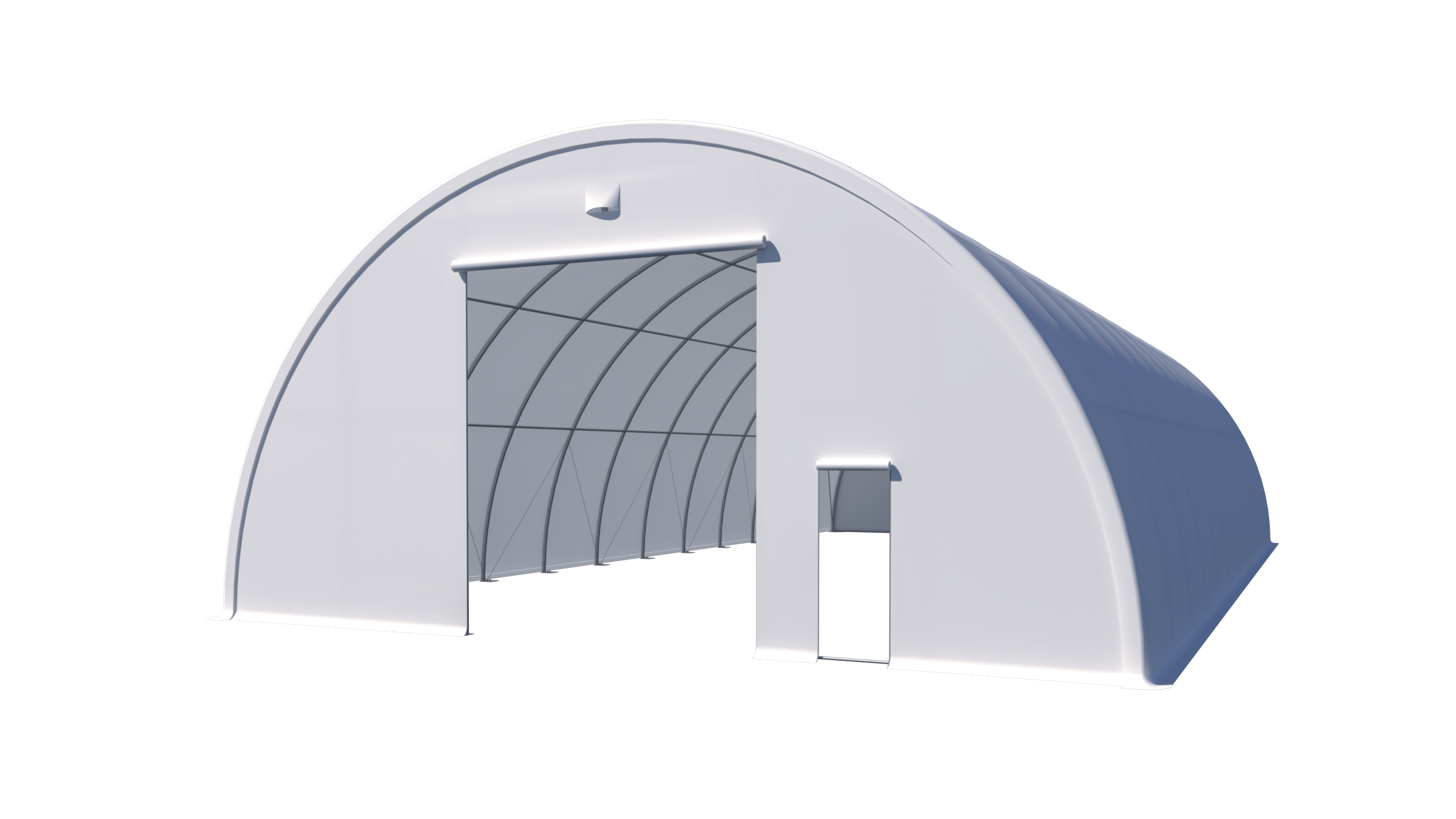

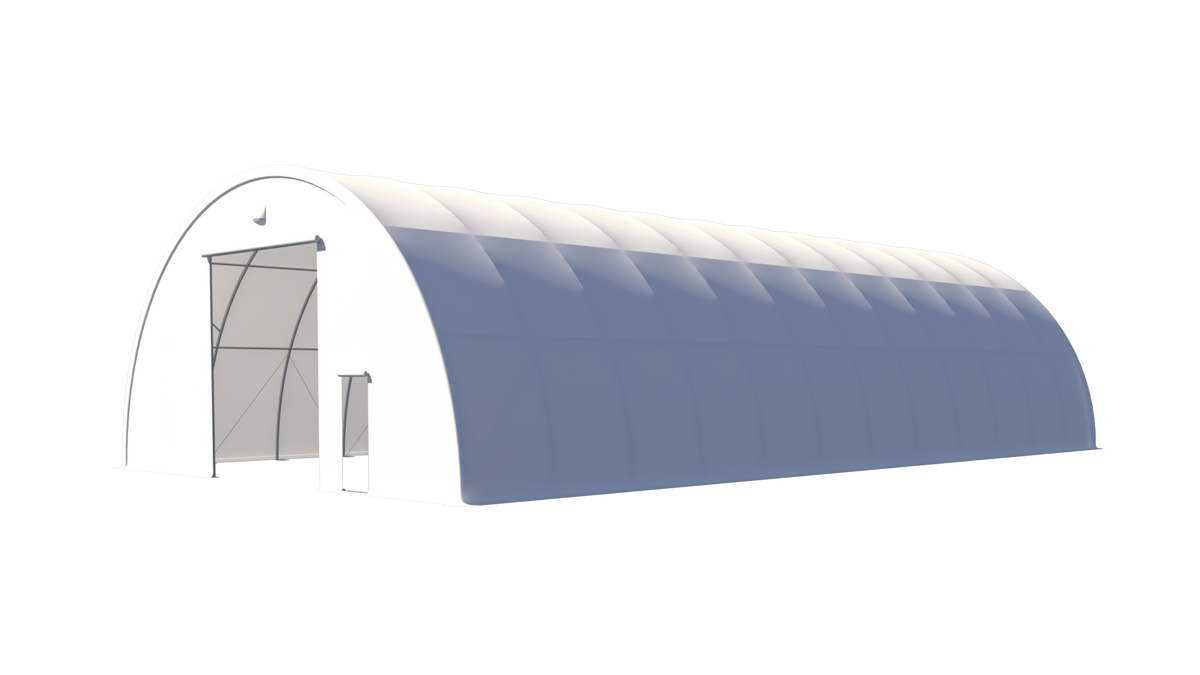

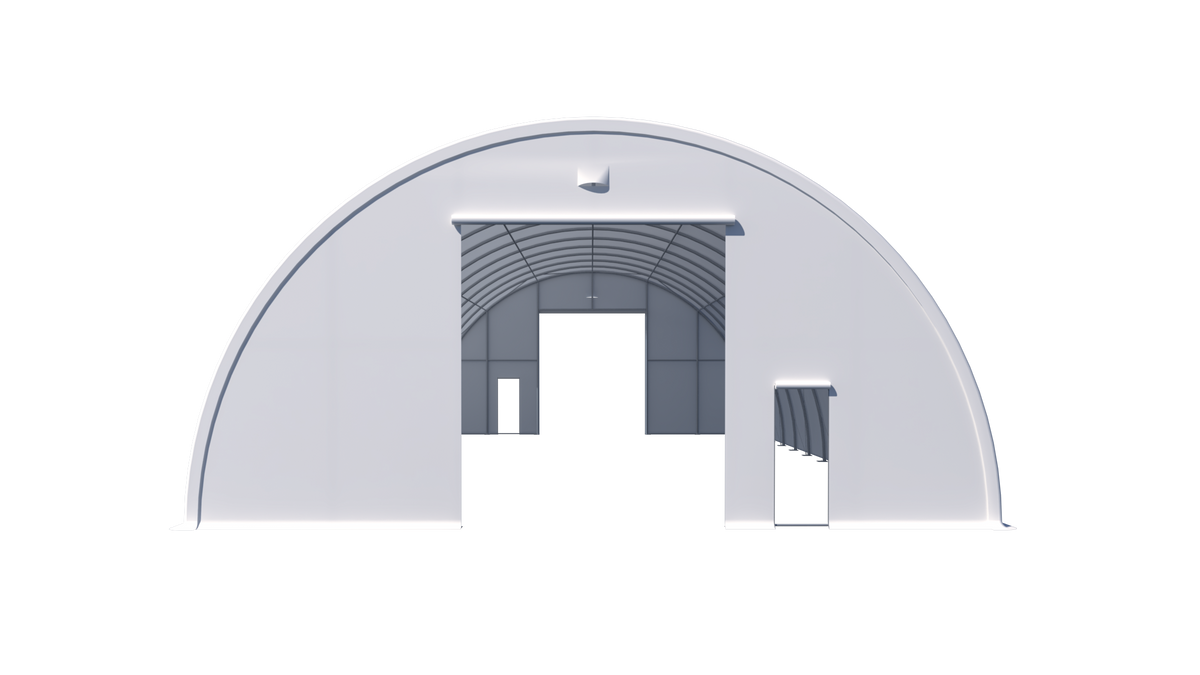

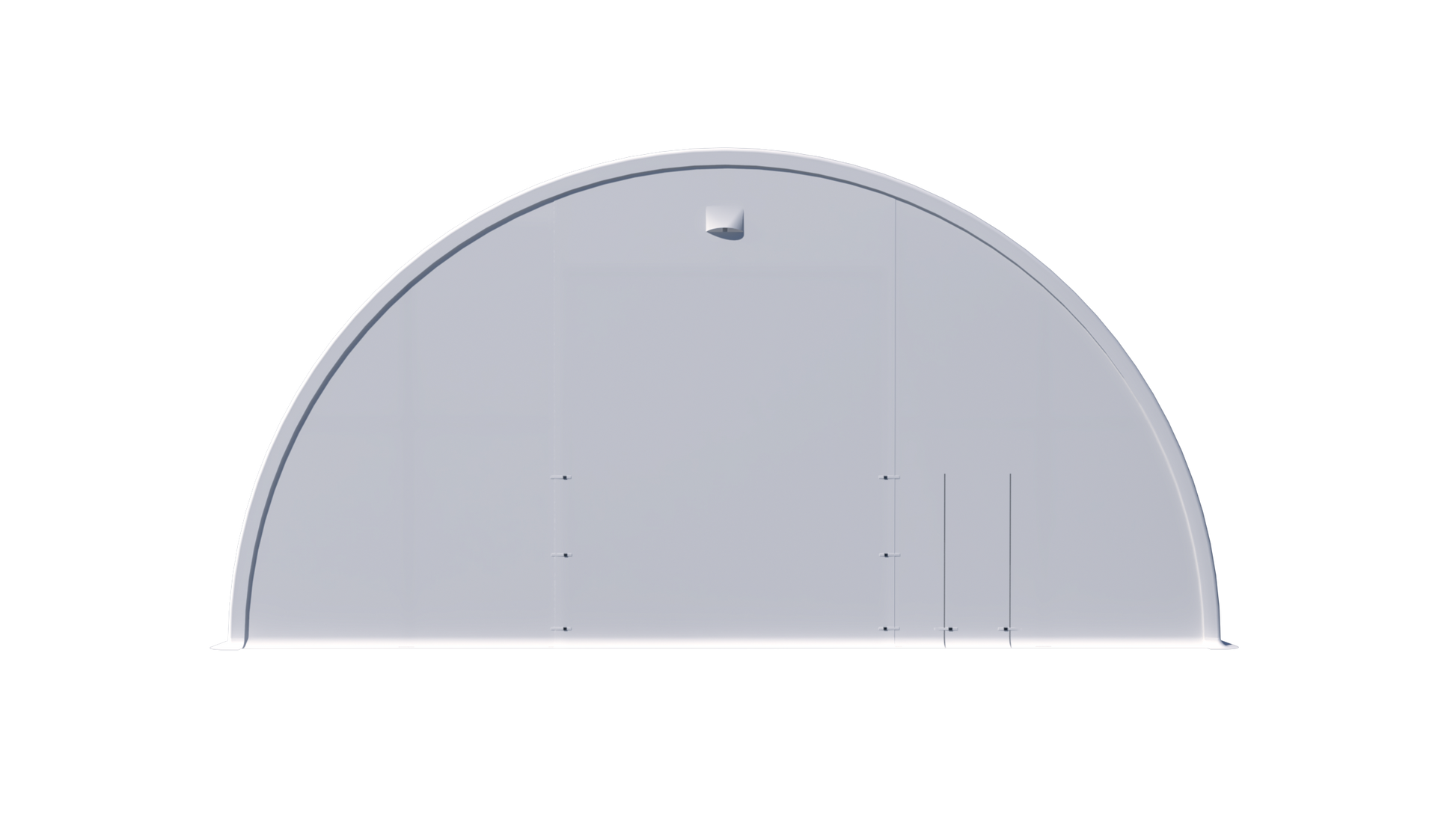

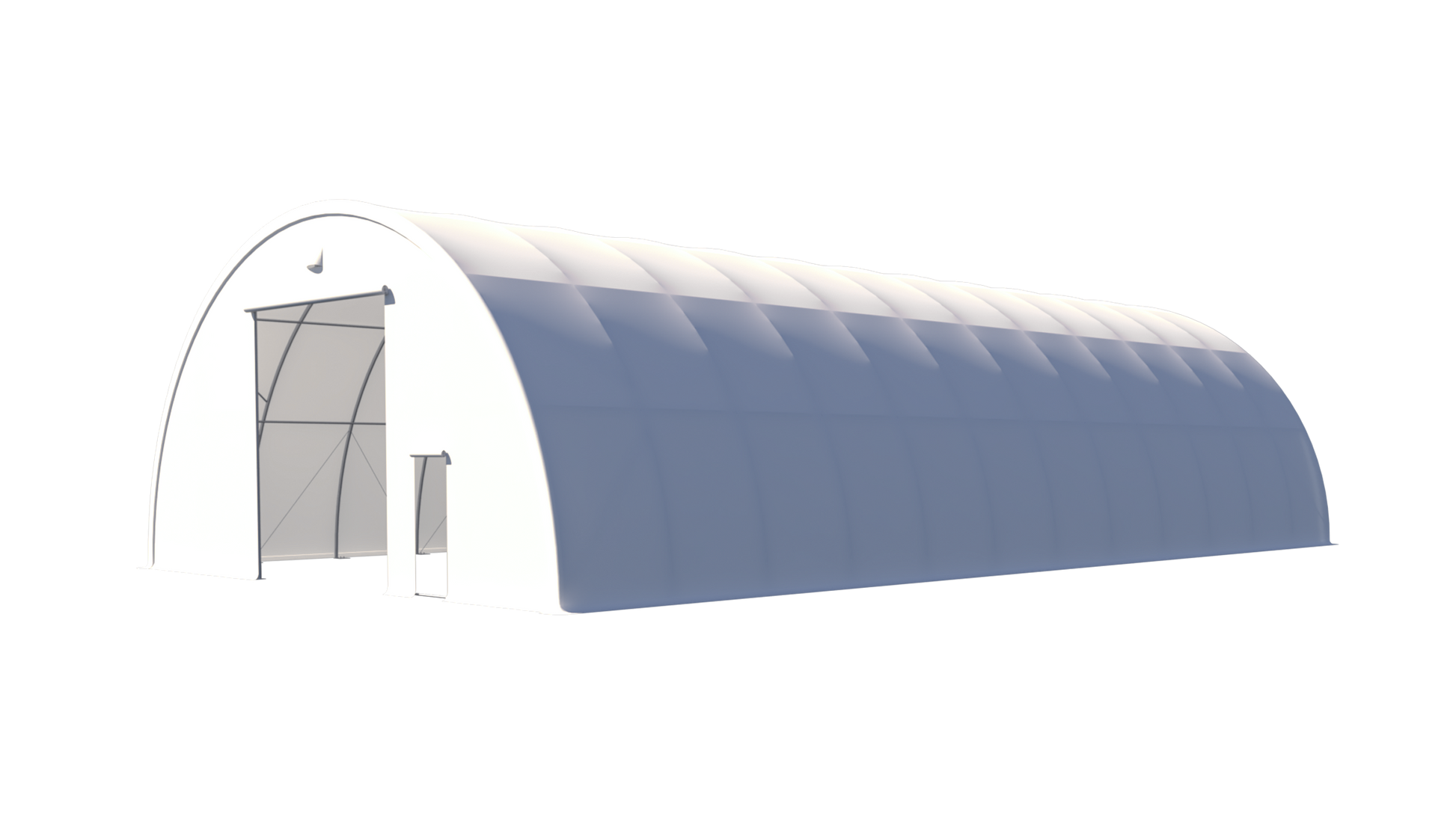

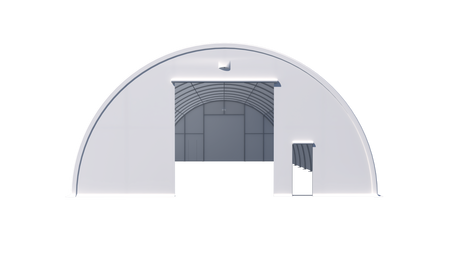

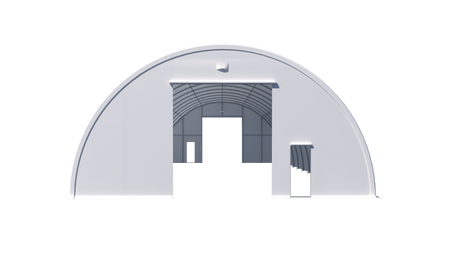

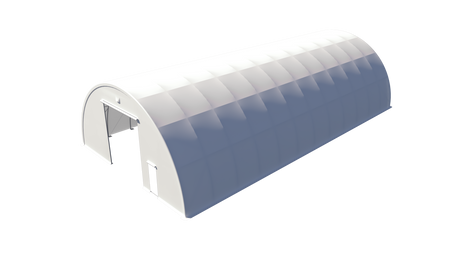

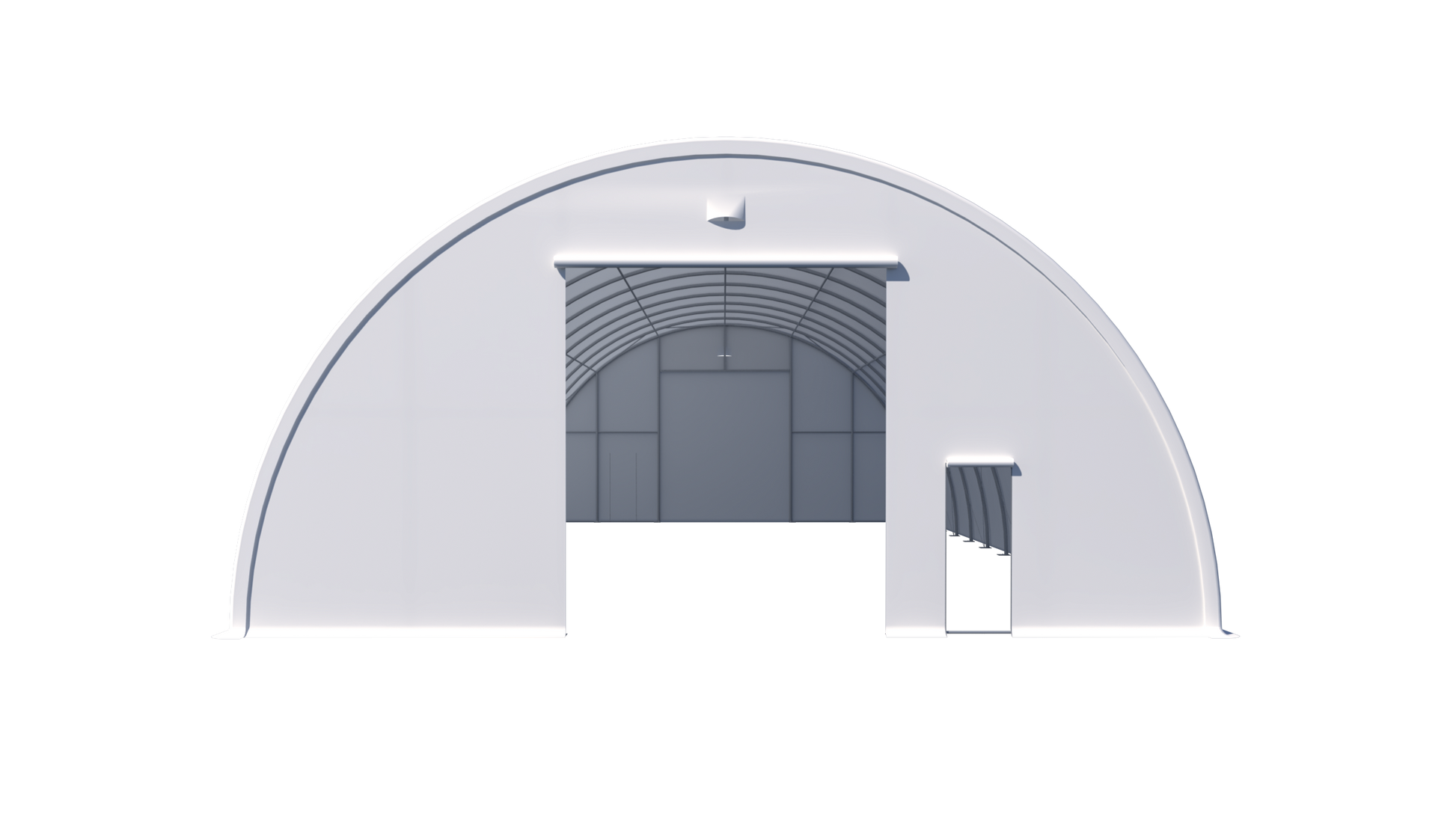

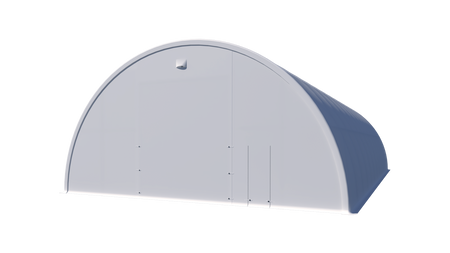

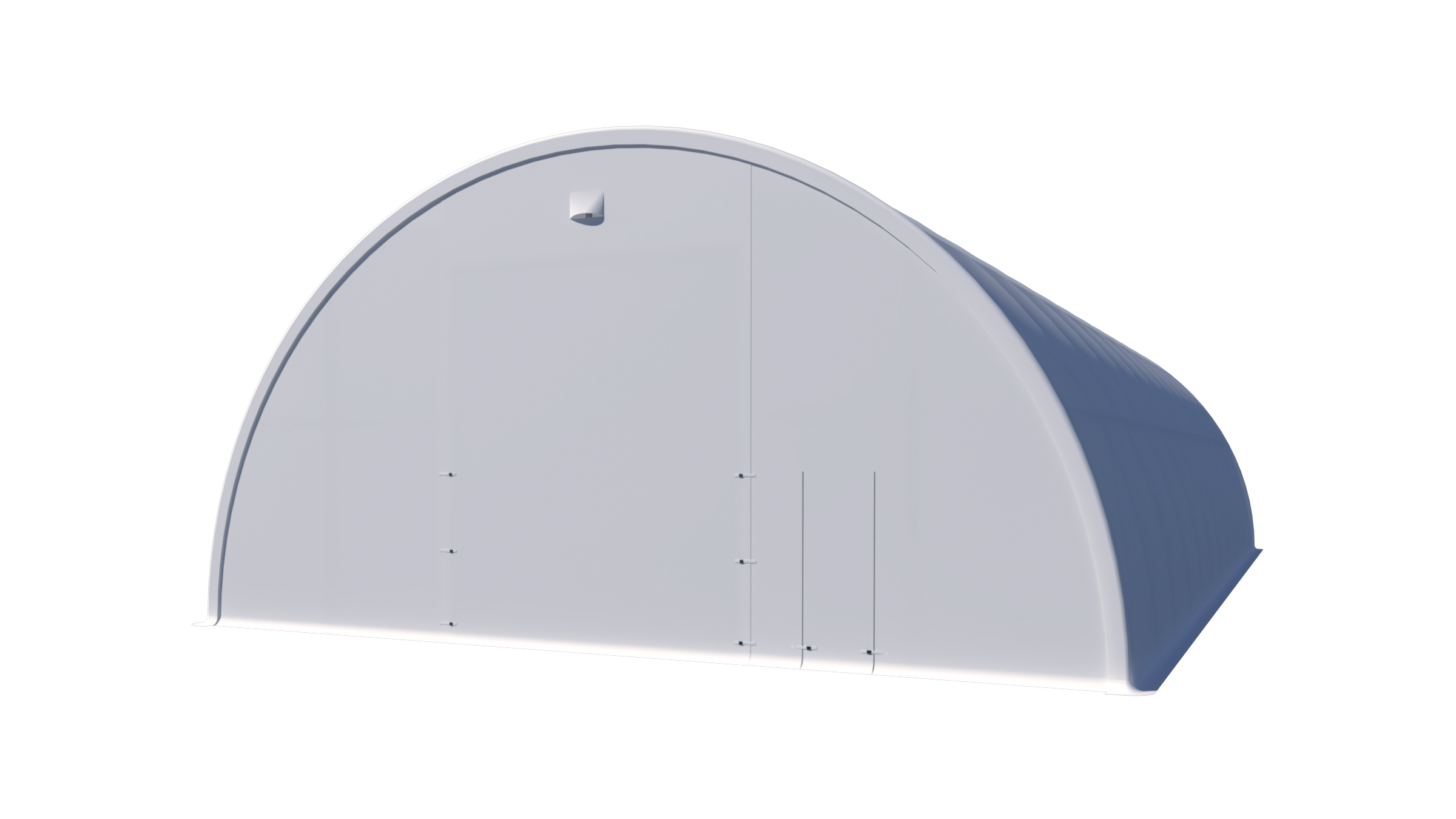

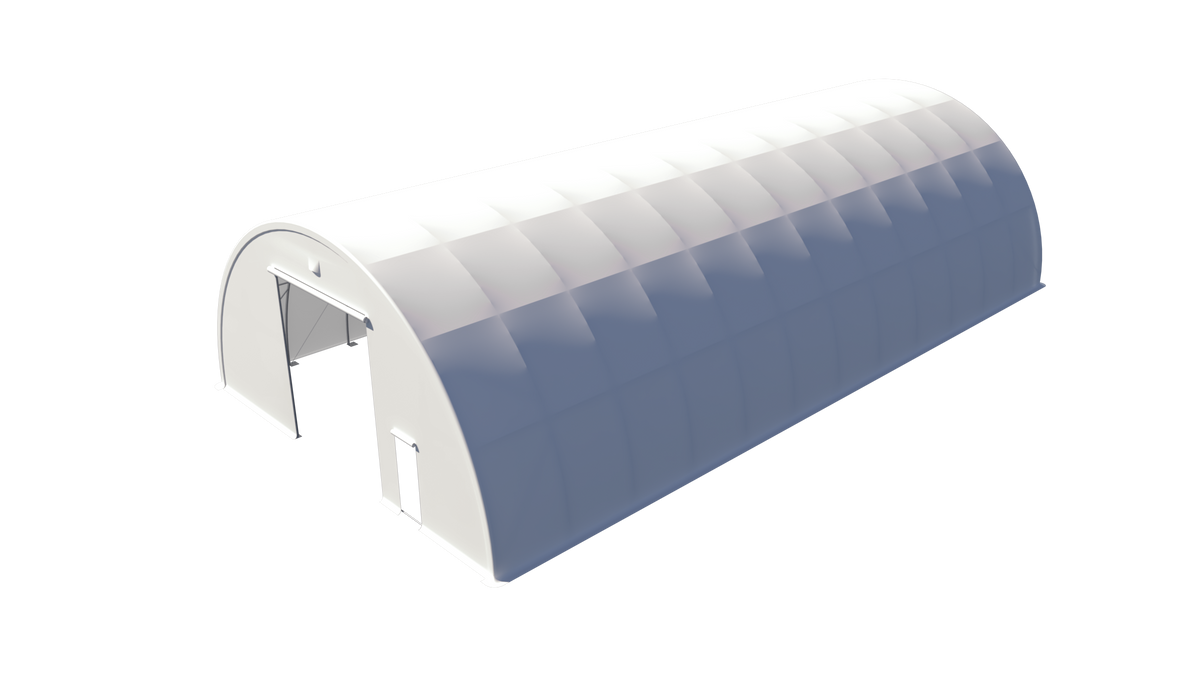

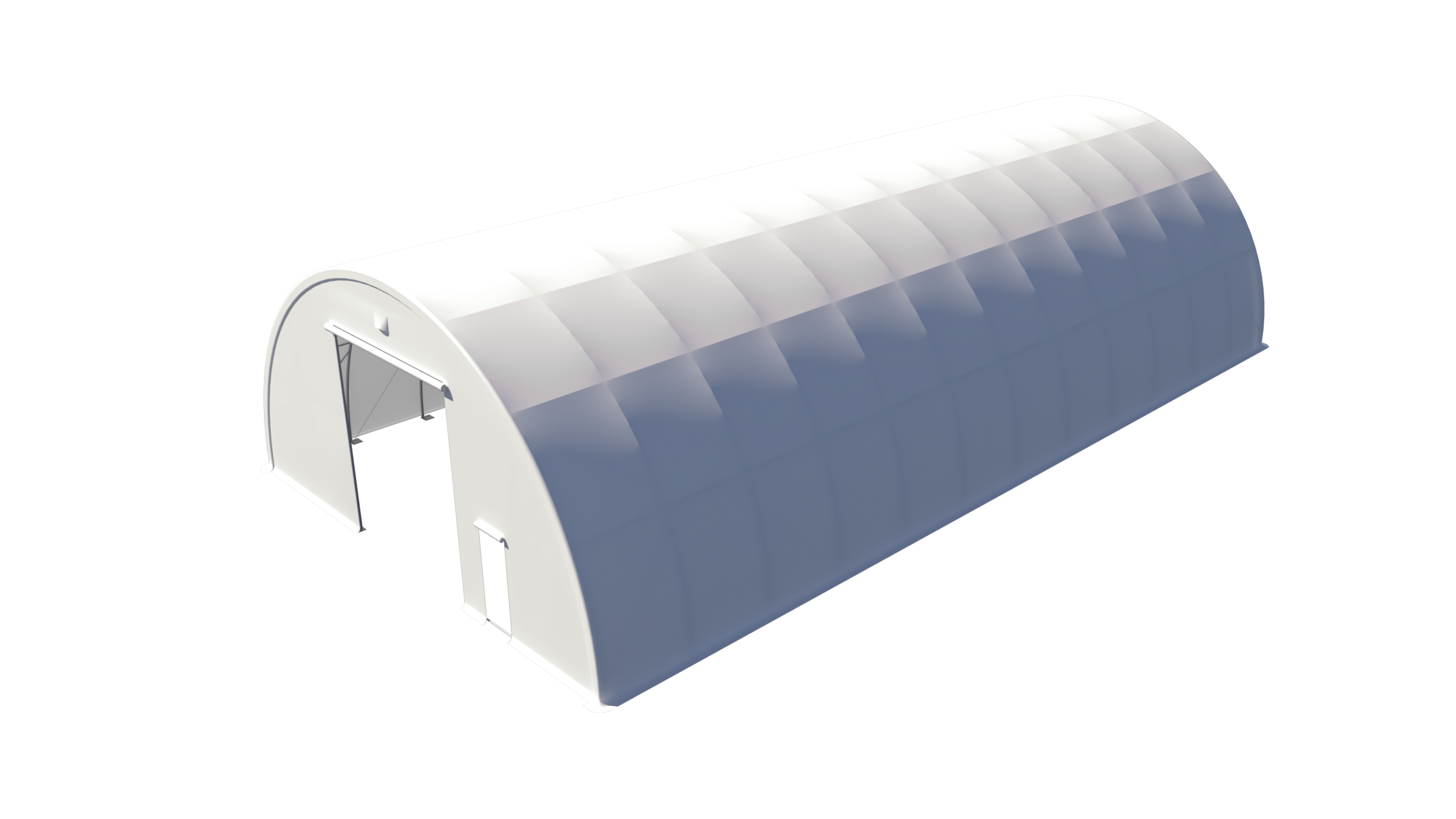

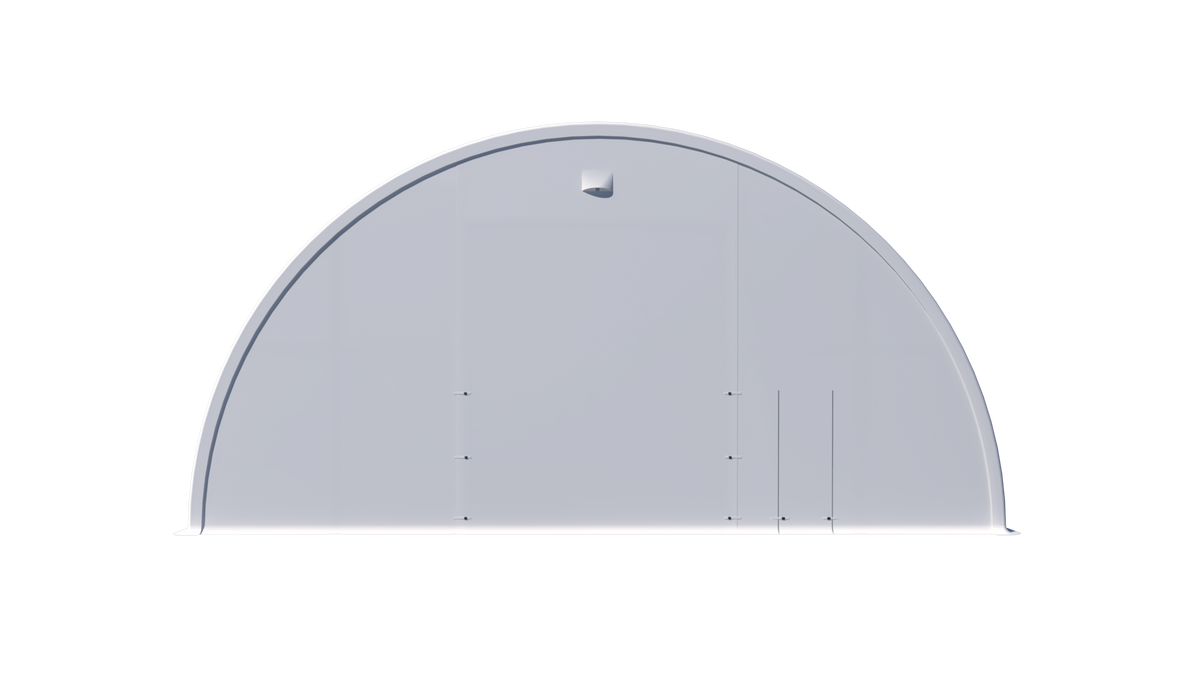

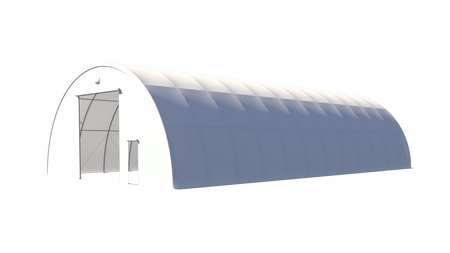

Gold Mountain Single Truss Round Storage Shelter W40'xL80'xH20'

Name: Gold Mountain Single Truss Round Storage Shelter W40'xL80'xH20'
Brand: Gold Mountain
SKU: SS-SR4080-500-5A
Price: 18999.0 CAD
Availability: InStock

Only 2 left

SKU: SS-SR4080-500-5A

No reviews

$18,999.00

Material 500g PVC 5ft Arch space

Product variants

Warranty

Frame 3 years, Tarp 2 years + 1 year prorated protection.

View details

Replacements

Accessories Parts

Product details

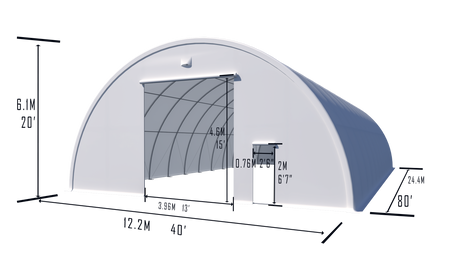

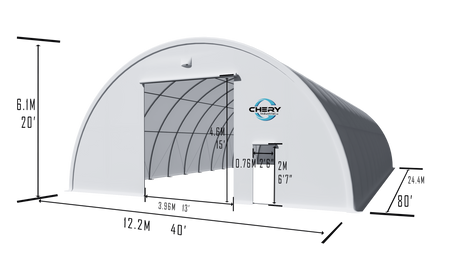

Dimensions: 40' × 80' × 20'

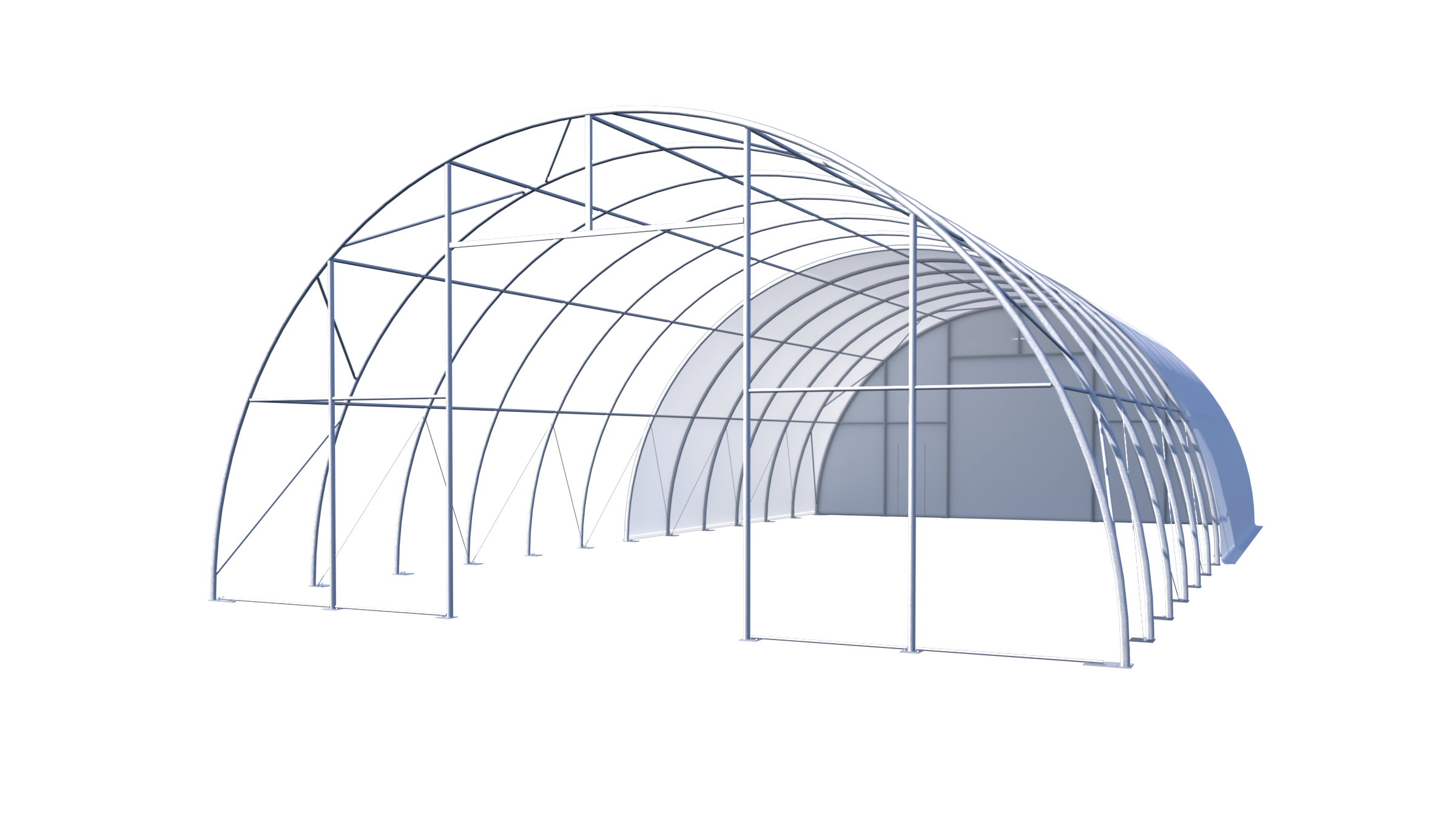

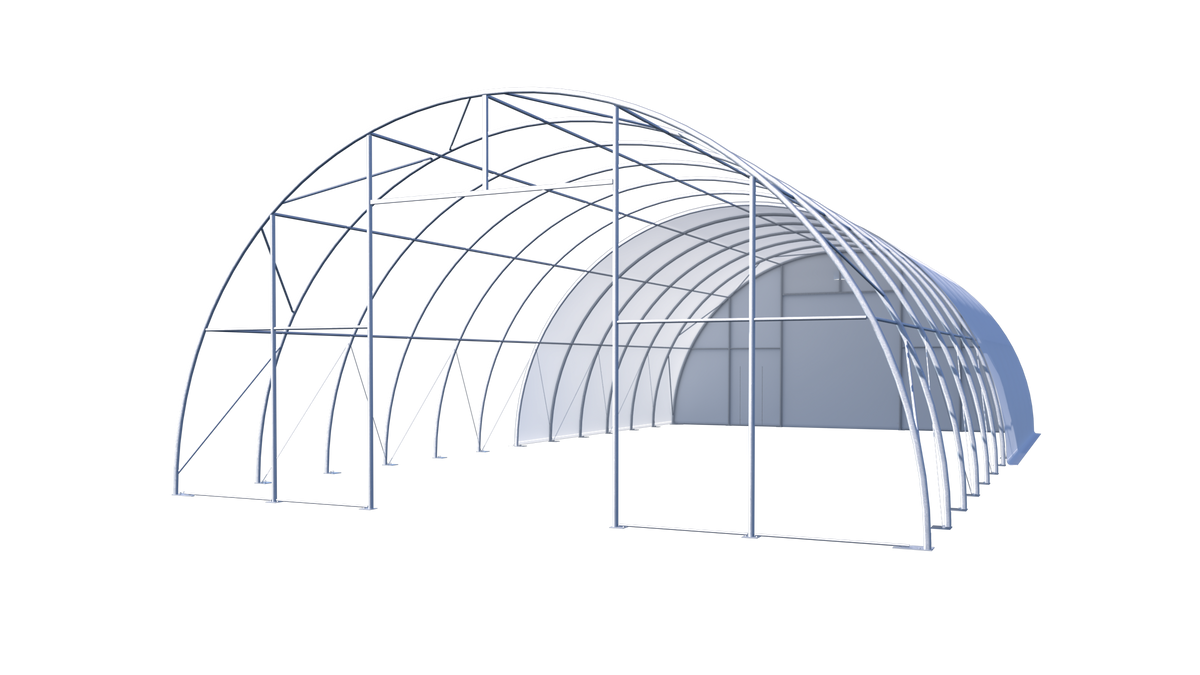

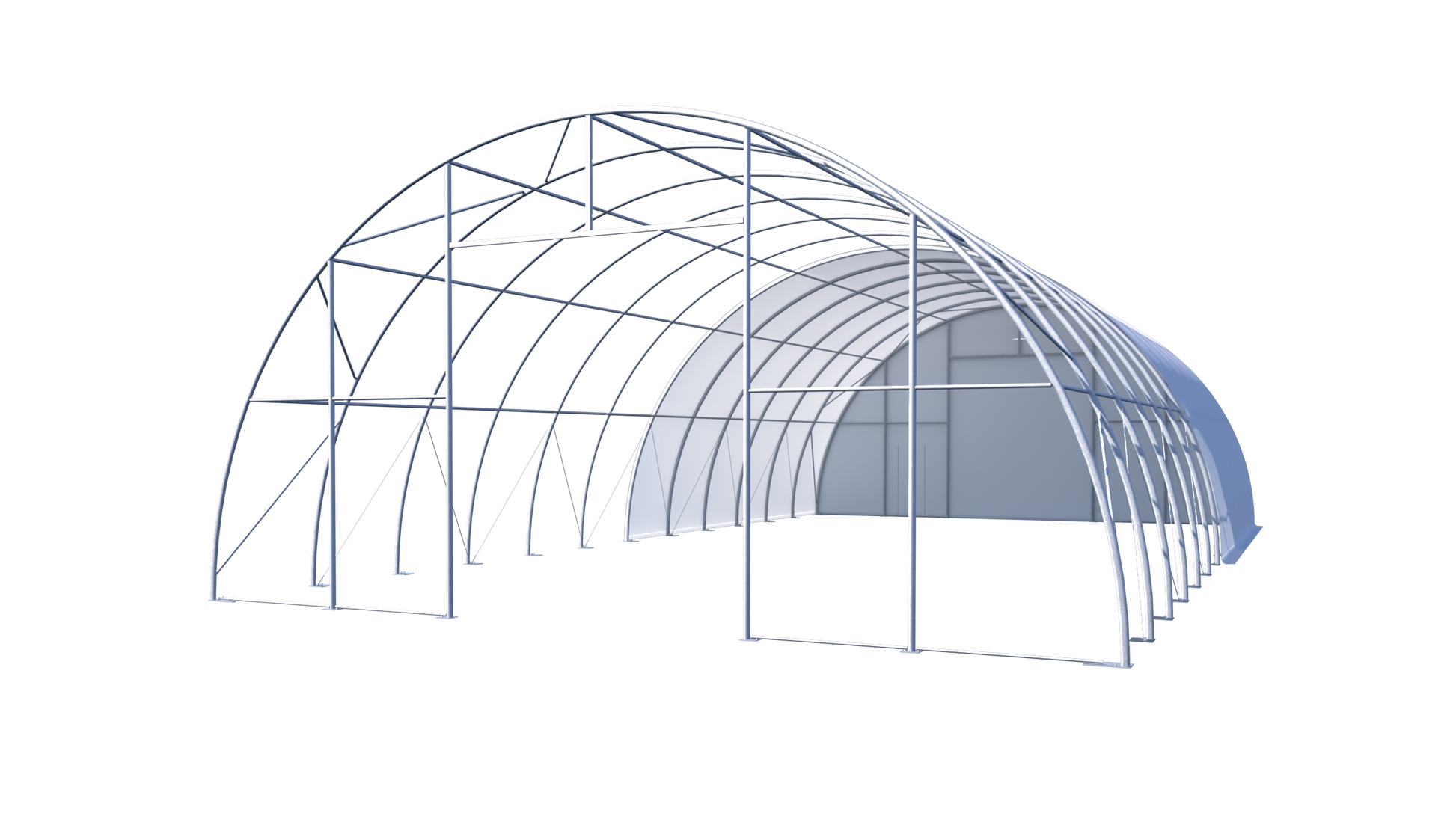

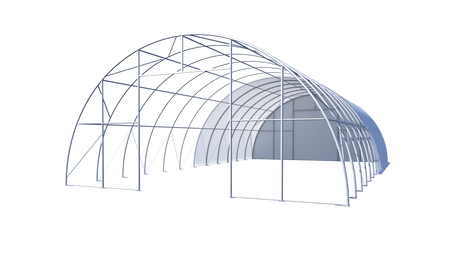

Structure: Single-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 500g PVC
Arch Configuration: 17 main arches at 5 ft spacing
Performance Level: Basic
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

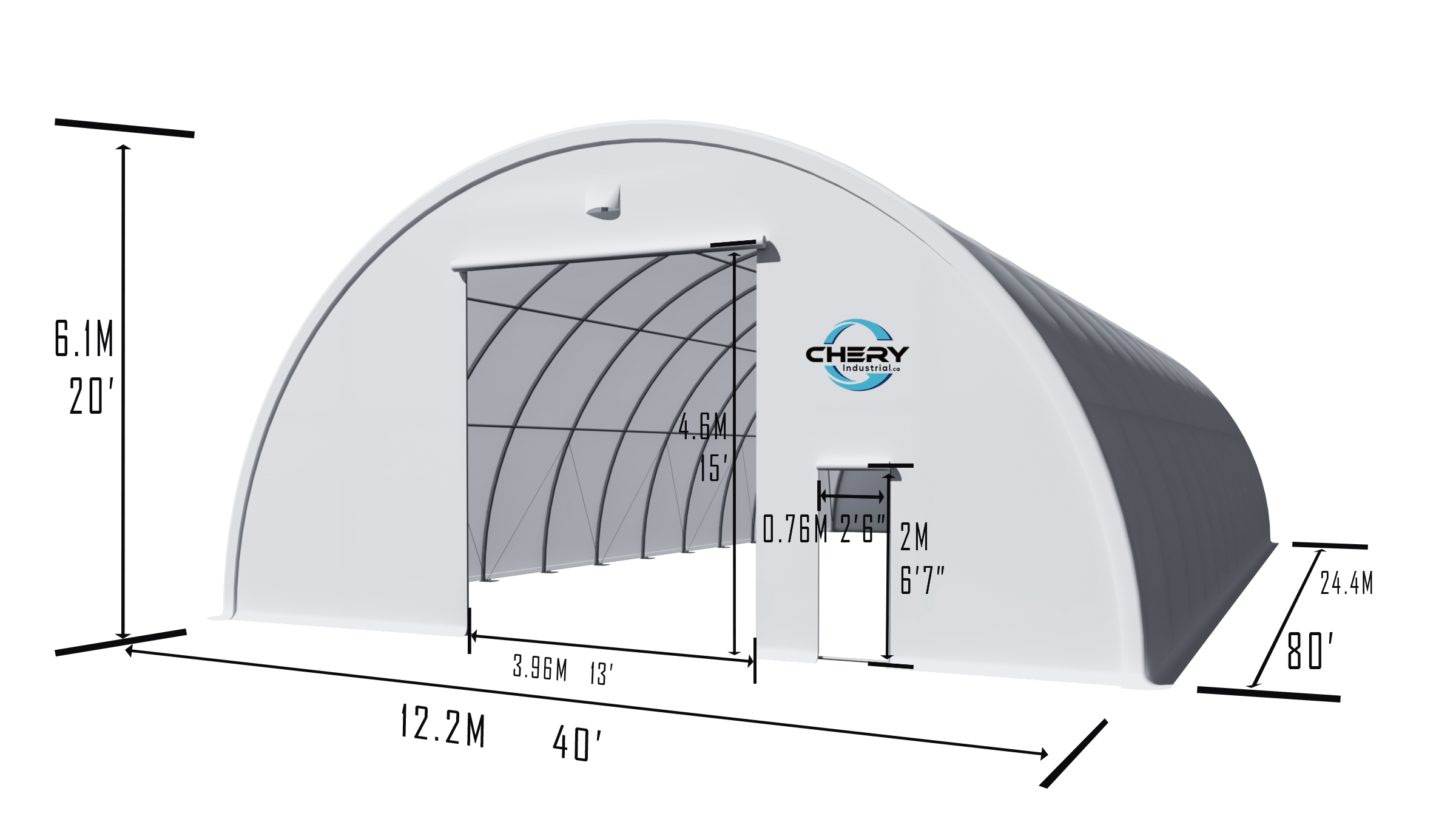

Product Dimension	12.2m24m6.1m/40'80'20'
Floor Footprint	297m²/3200ft²
Highest Height	6.1m/20’
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Main Arch Tube Diameter	56mm/2.2''
Main Arch Tube Thickness	2mm/0.08''
Main Arch Space	2m/6.56'
Purlin Tube Diameter	48mm/1.89''
Purlin Tube Thickness	1.5mm/0.06''

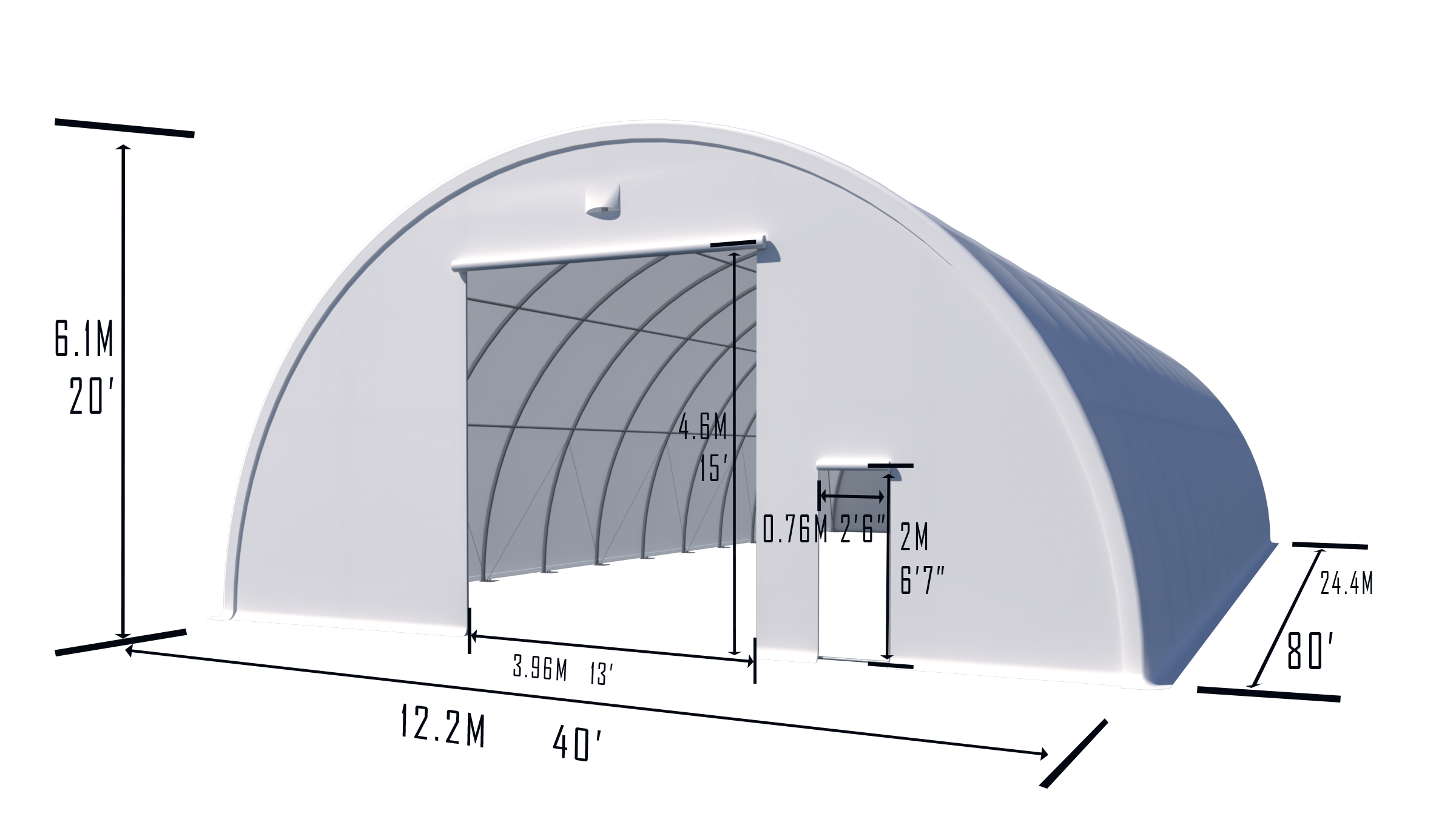

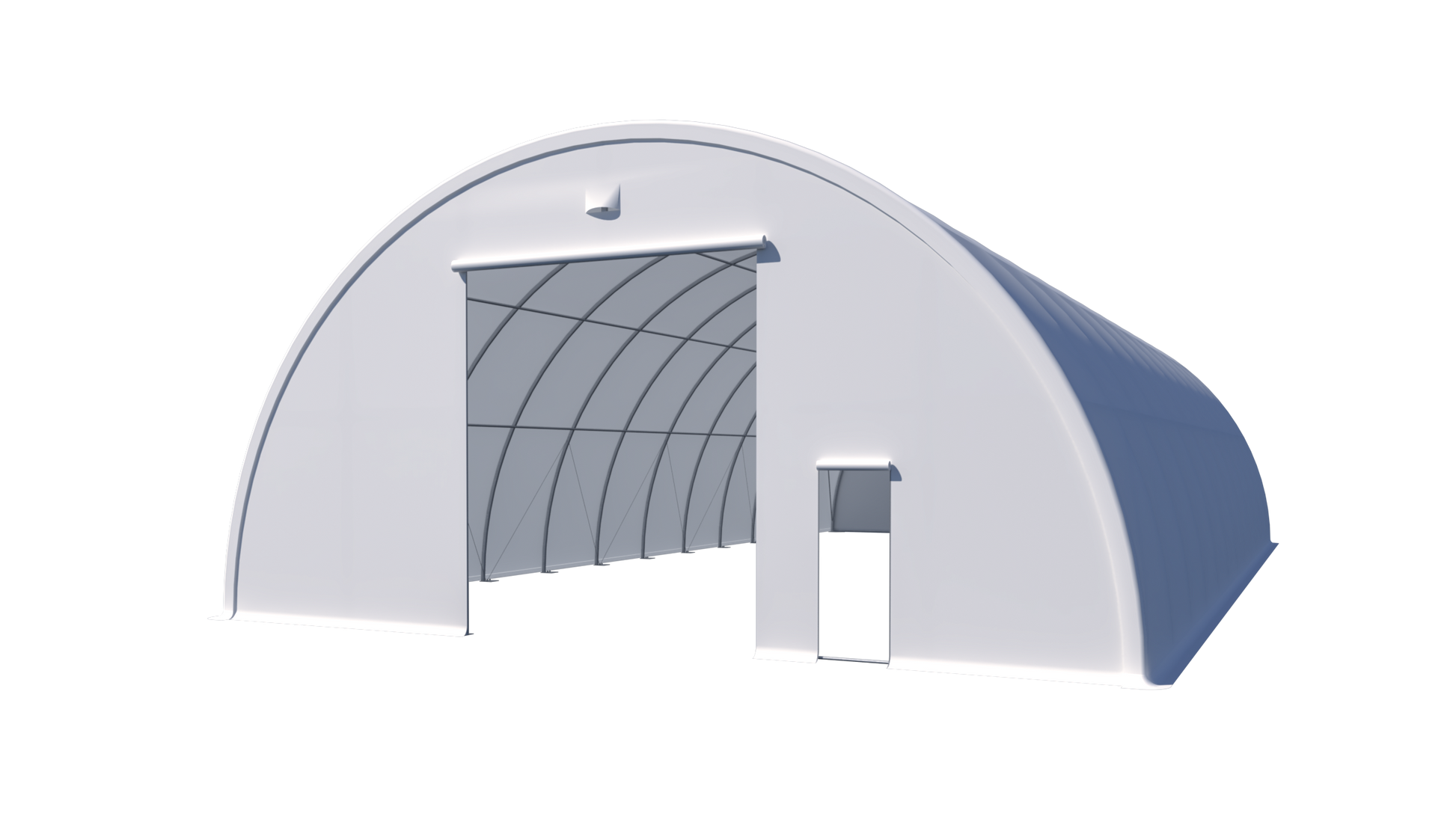

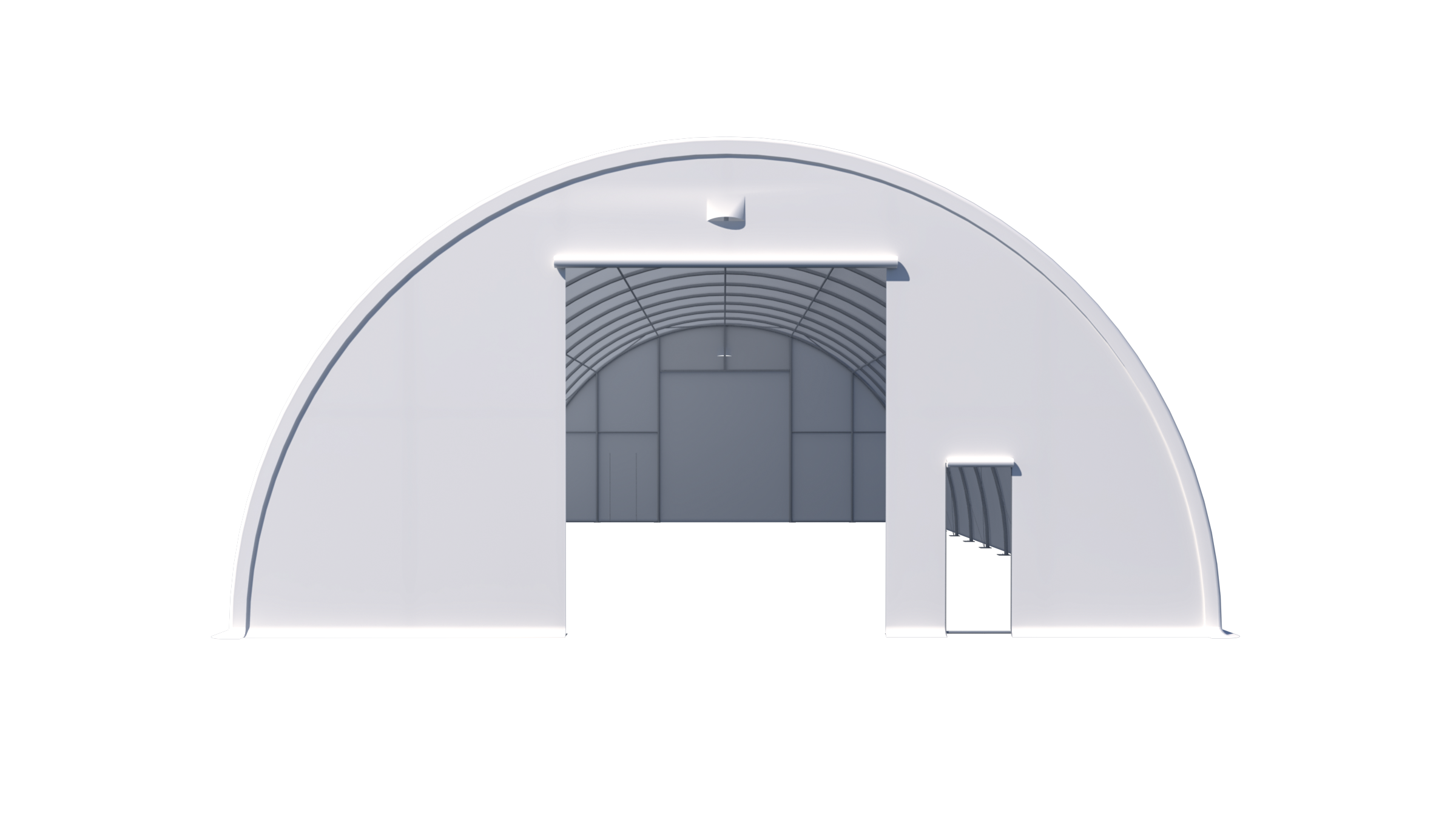

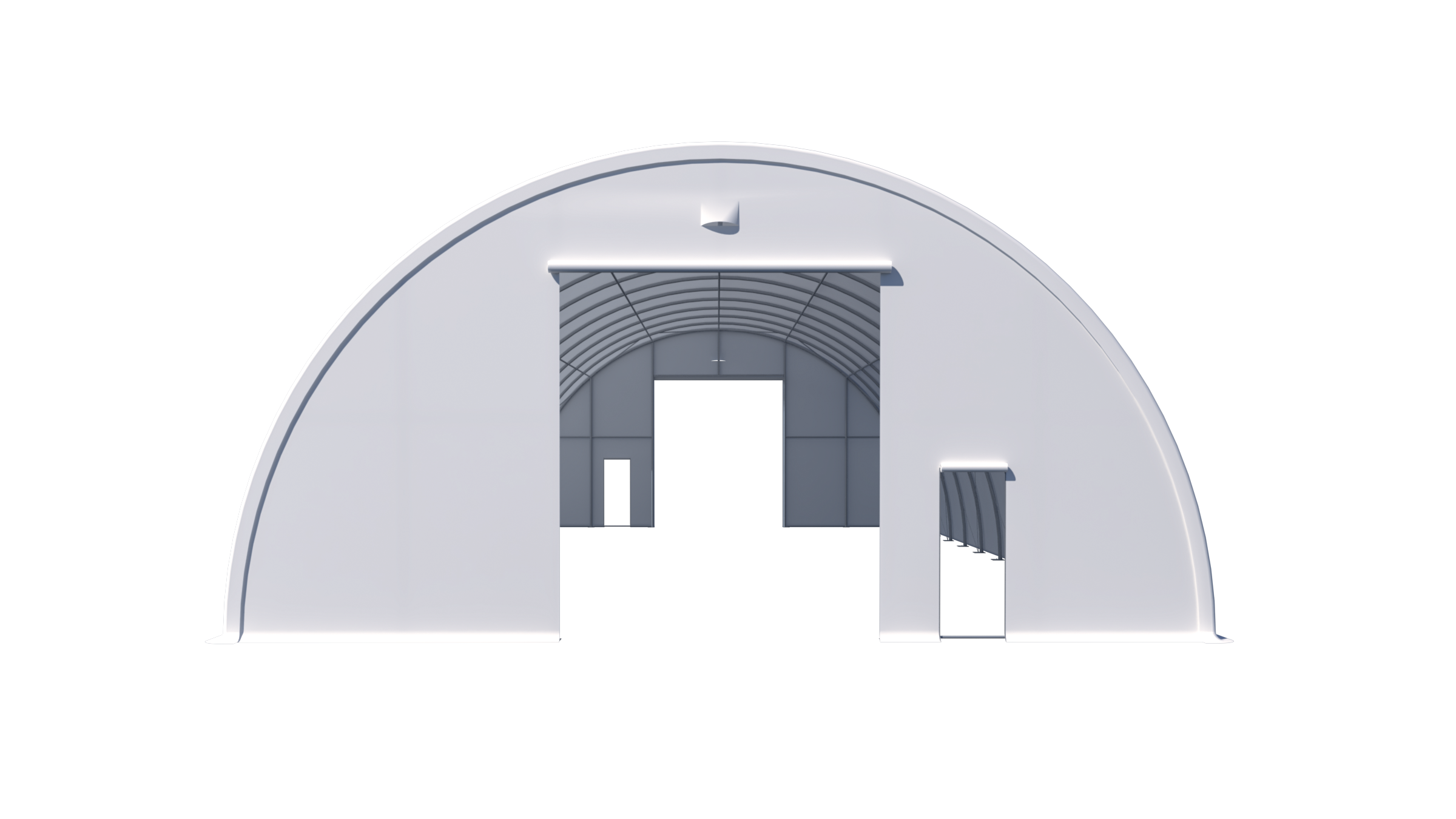

Door Size	4m4.5m/13.1'14.8'

Snow Rate Test Result:

408020R	Test Load		Deflection
408020R	Lb	Kpa	Point A (inch)	Point B (inch)	Point C (inch)
Step 1	0	0	0	0	0
Step 2	1005	1.52	1.4	1.6	1.2
Step 3	1507	2.28	2.2	2.3	1.6
Step 4	Keep the test load until 30 minutes
Step 5	Remove the test load		0.6	1.1	1.2
Step 6	The test sample can withstand the applied test load without damage.

Product manuals and documents

406020R_408020R_4010020R_2_EN.pdf

View Download

406020R_408020R_4010020R_FR.pdf

View Download

Product details

Dimensions: 40' × 80' × 20'
Structure: Single-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 500g PVC
Arch Configuration: 17 main arches at 5 ft spacing
Performance Level: Basic
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Dimension	12.2m24m6.1m/40'80'20'
Floor Footprint	297m²/3200ft²
Highest Height	6.1m/20’
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Main Arch Tube Diameter	56mm/2.2''
Main Arch Tube Thickness	2mm/0.08''
Main Arch Space	2m/6.56'
Purlin Tube Diameter	48mm/1.89''
Purlin Tube Thickness	1.5mm/0.06''
Door Size	4m4.5m/13.1'14.8'

Snow Rate Test Result:

408020R	Test Load		Deflection
408020R	Lb	Kpa	Point A (inch)	Point B (inch)	Point C (inch)
Step 1	0	0	0	0	0
Step 2	1005	1.52	1.4	1.6	1.2
Step 3	1507	2.28	2.2	2.3	1.6
Step 4	Keep the test load until 30 minutes
Step 5	Remove the test load		0.6	1.1	1.2
Step 6	The test sample can withstand the applied test load without damage.

Product manuals and documents

406020R_408020R_4010020R_2_EN.pdf

View Download

406020R_408020R_4010020R_FR.pdf

View Download

Comparison

Attribute	Current Basic 17 arches W40'xL80'xH20' $18,999.00	Heavy Duty 9 arches W40'xL80'xH22' $26,599.00	Heavy Duty 9 arches W40'xL80'xH22' $26,599.00	Heavy Duty 11 arches Wshelter-40'xL80'xH23' $26,599.00
Door size	W14.0' x H13.0'	W14.0' x H14.0'	W14.0' x H13.0'	W14.0' x H14.0'
Snow load	1.6 kPa	2.0 kPa	2.0 kPa	2.0 kPa
Wind load	0.3 kPa	0.37 kPa	0.37 kPa	0.37 kPa
Warranty	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.	Frame 5 years, Tarp 2 years + 3 year prorated protection.
