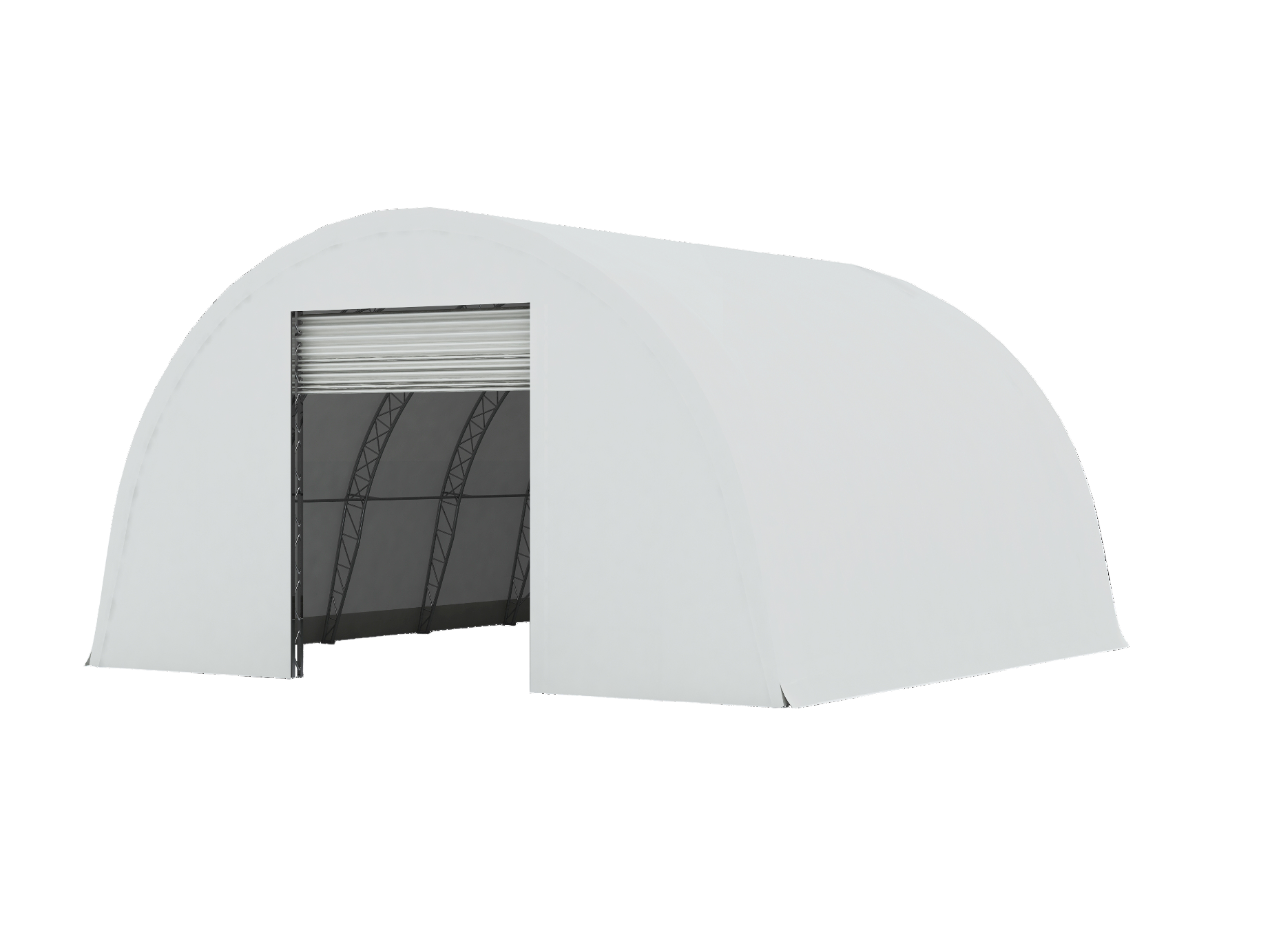

Double Truss Round M Model Storage Shelter W40'xL40'xH22'

Name: Double Truss Round M Model Storage Shelter W40'xL40'xH22'
Brand: Chery Industrial Canada
SKU: SS-DRM4040-500
Price: 16599.0 CAD
Availability: InStock

Only 1 left

SKU: SS-DRM4040-500

No reviews

$16,599.00

Material 500g PVC 750g PVC

Product variants

Warranty

Frame 8 years, Tarp 2 years + 6 year prorated protection.

View details

Replacements

Parts

Product details

Dimensions: 40' × 40' × 22'

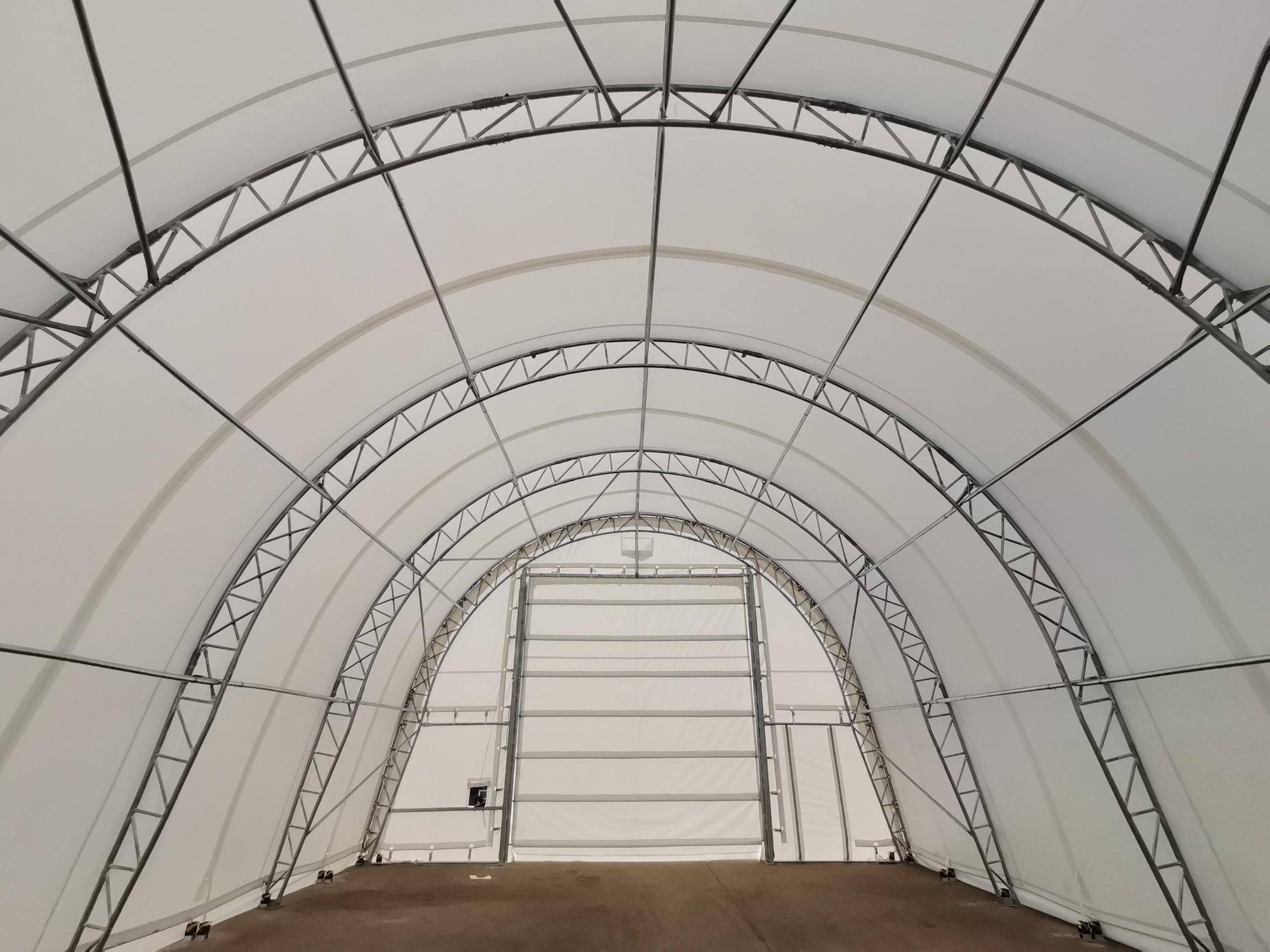

Structure: Double-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 500g PVC or 750g PVC
Arch Configuration: 5 main arch groups at 10 ft spacing
Performance Level: Heavy Duty
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

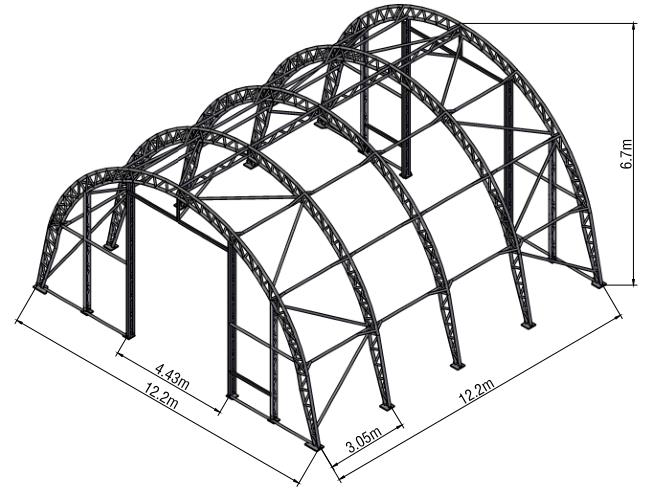

Product Size	12.2m × 12.2m × 6.7m / 40' × 40' × 22'
Maximum Height	6.7m / 22'
Frame Material	Galvanized Tube
Main Arch Space	3.05m / 10'
Arch	Φ60 × 1.5mm
Roll Up Door Size	W16' × H14'
Snow Resistance	1.8 kN/m²
Wind Resistance	0.2 kN/m²

Product manuals and documents

404022DR_M_10ft_1_EN.pdf

View Download

404022DR_M_10ft_1_FR.pdf

View Download

Product details

Dimensions: 40' × 40' × 22'
Structure: Double-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 500g PVC or 750g PVC
Arch Configuration: 5 main arch groups at 10 ft spacing
Performance Level: Heavy Duty
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Size	12.2m × 12.2m × 6.7m / 40' × 40' × 22'
Maximum Height	6.7m / 22'
Frame Material	Galvanized Tube
Main Arch Space	3.05m / 10'
Arch	Φ60 × 1.5mm
Roll Up Door Size	W16' × H14'
Snow Resistance	1.8 kN/m²
Wind Resistance	0.2 kN/m²

Product manuals and documents

404022DR_M_10ft_1_EN.pdf

View Download

404022DR_M_10ft_1_FR.pdf

View Download

Comparison

Attribute	Basic 7 arches W30'xL40'xH15' $5,299.00	Heavy Duty 5 arches W30'xL40'xH20' $14,999.00	Current Heavy Duty 5 arches W40'xL40'xH22' $16,599.00	Heavy Duty 5 arches W40'xL40'xH22' $17,599.00
Door size	W11.5' x H11.5'	W14.0' x H14.0'	W14.0' x H13.0'	W14.0' x H14.0'
Snow load	1.6 kPa	2.0 kPa	2.0 kPa	2.0 kPa
Wind load	0.3 kPa	0.37 kPa	0.37 kPa	0.37 kPa
Warranty	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.
