Single Truss Round M Model Storage Shelter W20'xL30'xH12' - Heavy Duty

Only 3 left
SKU: SS-SRM-2030-420
No reviews
$2,399.00
$2,999.00 -20% $2,399.00
Material
1-800-765-0877
Description Features Specifications Shipping Warranty Manual Reviews
Heavy-duty storage shelter engineered for demanding industrial and agricultural applications. This single truss round M model features a 20' width, 30' length, and 12' height, providing 600 square feet of protected space for equipment, materials, and inventory. Built with robust structural design, the rounded truss configuration maximizes interior headroom and distributes loads efficiently. Ideal for temporary or permanent storage solutions on job sites, farms, warehouses, and outdoor facilities. Weather-resistant construction protects contents from rain, snow, and UV exposure while maintaining accessibility for forklifts and machinery. Durable frame supports heavy snow and wind loads. Quick assembly and relocation capability make it a cost-effective alternative to permanent structures. Perfect for seasonal storage, equipment protection, and operational flexibility.
Heavy-duty storage shelter engineered for demanding industrial and agricultural applications. This single truss round M model features a 20' width, 30' length, and 12' height, providing 600 square feet of protected space for equipment, materials, and inventory. Built with robust structural design, the rounded truss configuration maximizes interior headroom and distributes loads efficiently. Ideal for temporary or permanent storage solutions on job sites, farms, warehouses, and outdoor facilities. Weather-resistant construction protects contents from rain, snow, and UV exposure while maintaining accessibility for forklifts and machinery. Durable frame supports heavy snow and wind loads. Quick assembly and relocation capability make it a cost-effective alternative to permanent structures. Perfect for seasonal storage, equipment protection, and operational flexibility.
  • Single Truss Construction: Engineered for enhanced stability and strength to withstand diverse weather conditions.
  • Durable 420g PVC Cover: Heavy-duty polyethylene offers excellent protection from rain, wind, and harmful UV rays.
  • Spacious Dimensions: With a footprint of 20' W × 30' L × 12' H, this shelter accommodates large vehicles, equipment, or bulk storage.
  • Round Roof Design: Promotes better wind resistance and prevents buildup of rain or snow, reducing maintenance and extending longevity.
  • Integrated Safety Features: Equipped with safety braces and an overload valve to support safe, reliable operation.
  • 5-Foot Arch Spacing: Reinforces structural integrity and improves accessibility within the shelter.
  • Multi-Purpose Use: Perfect for agricultural storage, industrial materials, equipment housing, or as a temporary workshop or garage.

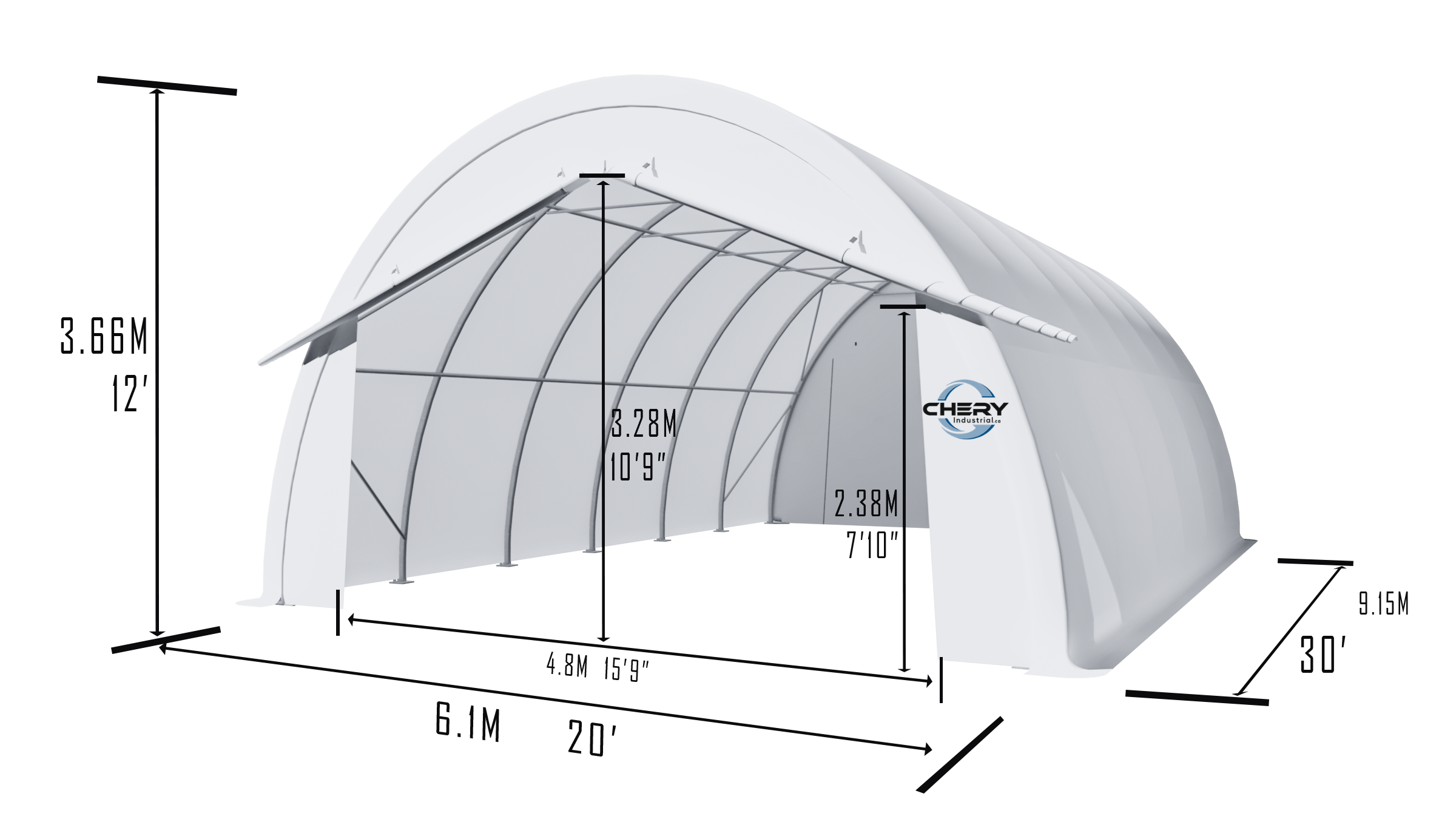

Product Dimension

6.1m*9.15m*3.66m/20'*30'*12'

Floor Footprint

55.74m2/600ft2

Highest Height

3.66m/12’

Frame Material

Galvanized Steel

Cover Material

PVC/PE

Main Arch Tube Diameter

42mm/1.65''

Main Arch Tube Thickness

1.5mm/0.06''

Main Arch Space

1.83m/6'

Purlin Tube Diameter

40mm/1.57''

Purlin Tube Thickness

1.5mm/0.06''

Door Size

4.3m*3.2m/14.1'*10.5'
Type Package Dimensions Package Weight

We've got you covered with comprehensive warranties for all our shelters:

  • All shelters include full coverage for the frame.
  • The tarpaulin material comes with a basic 2-year warranty, with some models offering prorated protection.

Single Truss (PE Material):
2-year warranty for both the frame and tarpaulin material.

Single Truss (PVC Material):
3-year warranty for the frame
2-year warranty for the tarpaulin material + 1-year prorated protection.

Double Truss:
5-year warranty for the frame
2-year warranty for the tarpaulin material + 3-year prorated protection.

Double Truss "M" Style:
8-year warranty for the frame
2-year warranty for the tarpaulin material + 6-year prorated protection.

No manual files available for this product.
