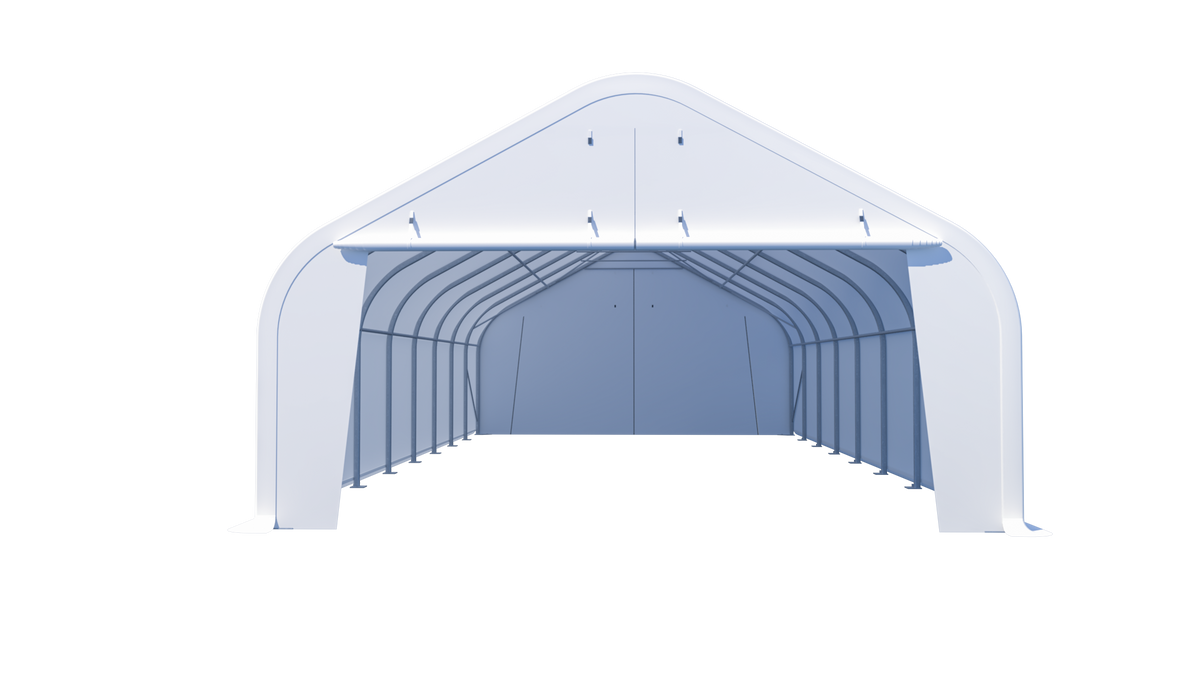

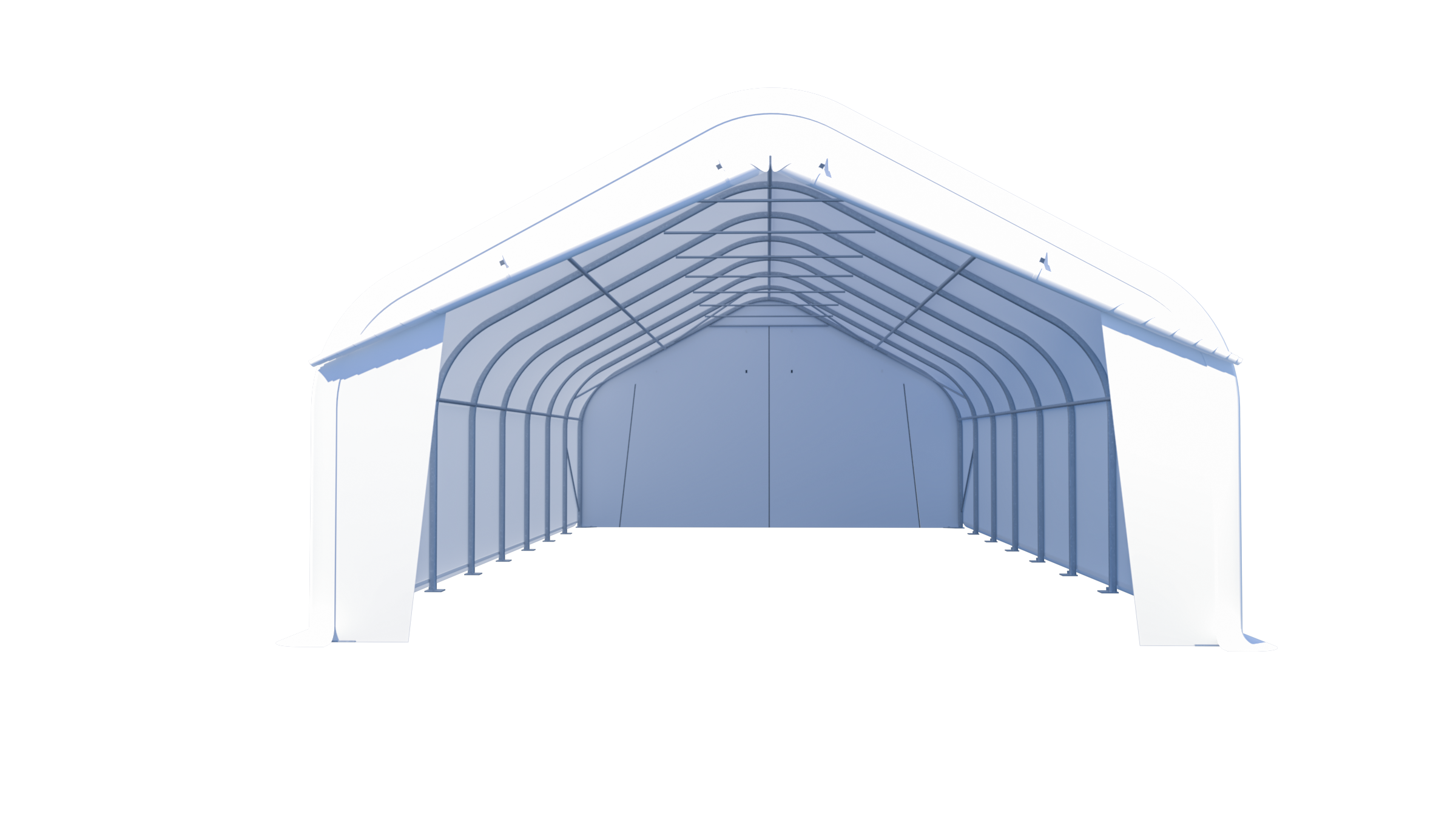

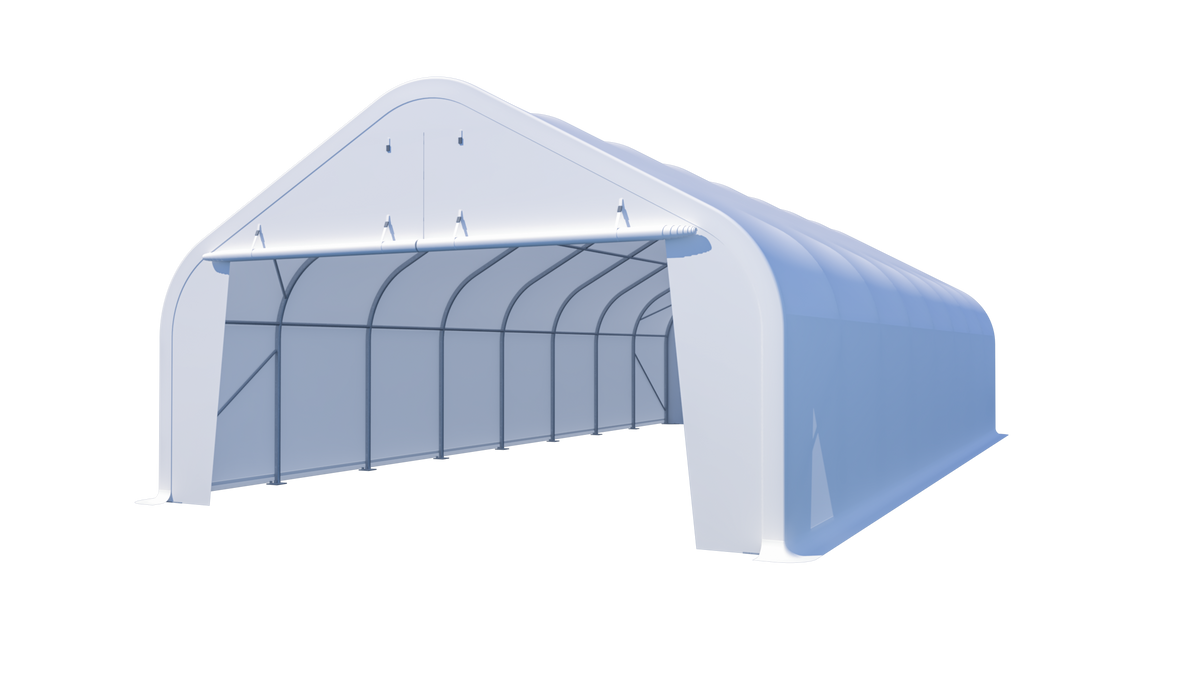

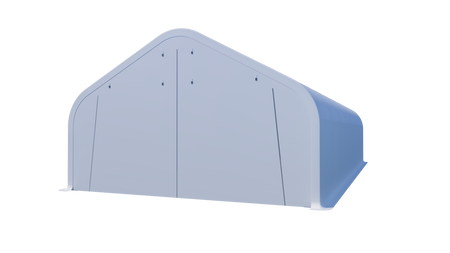

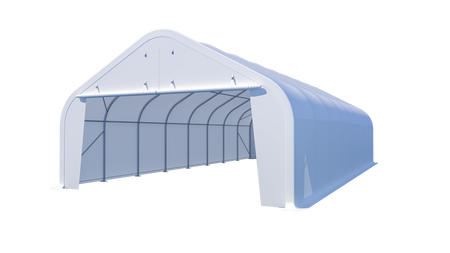

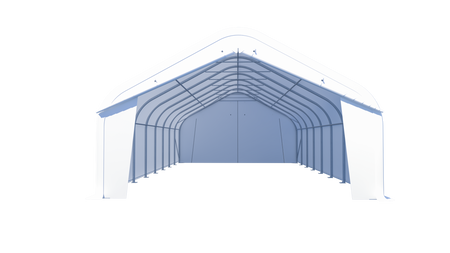

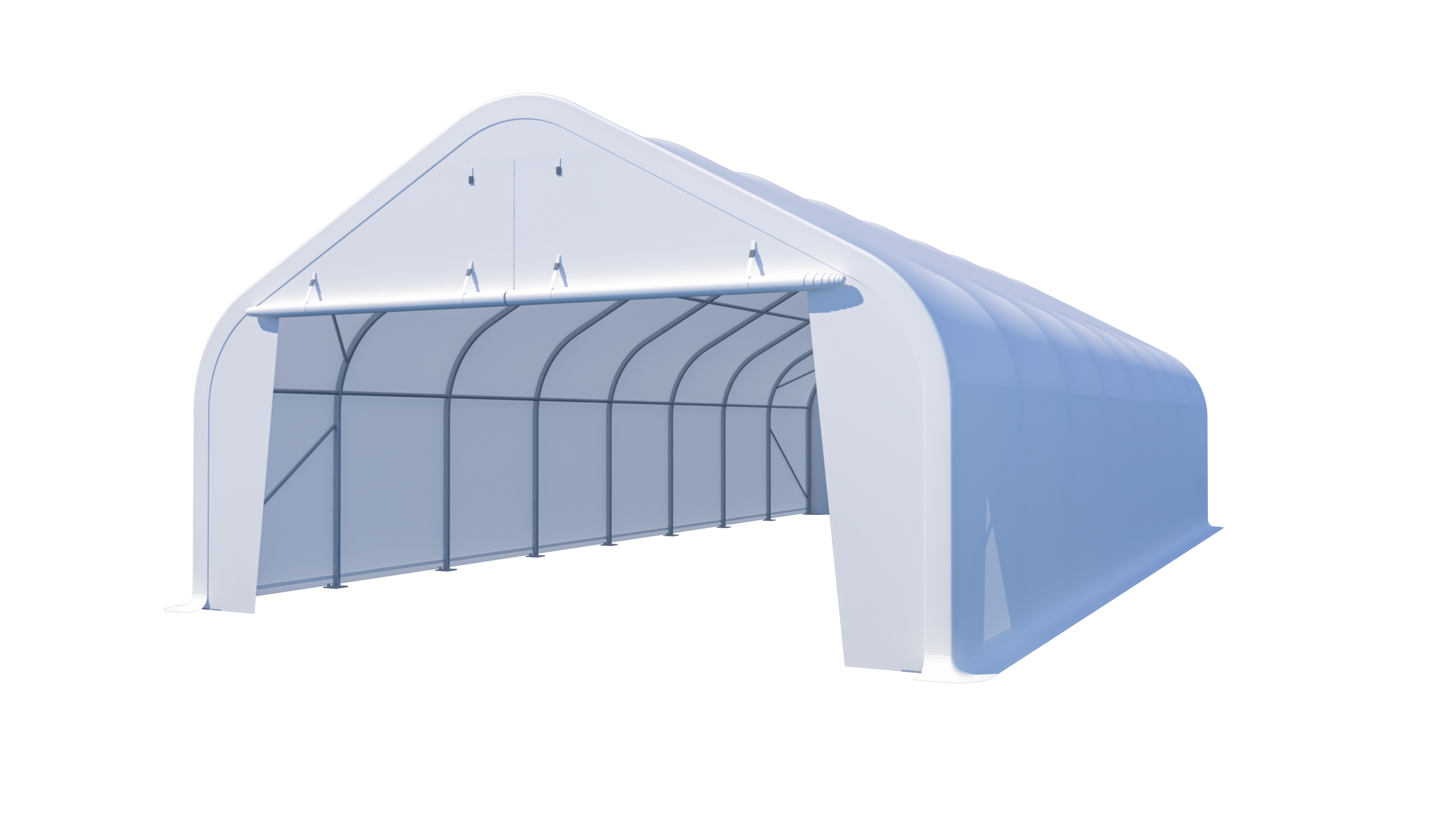

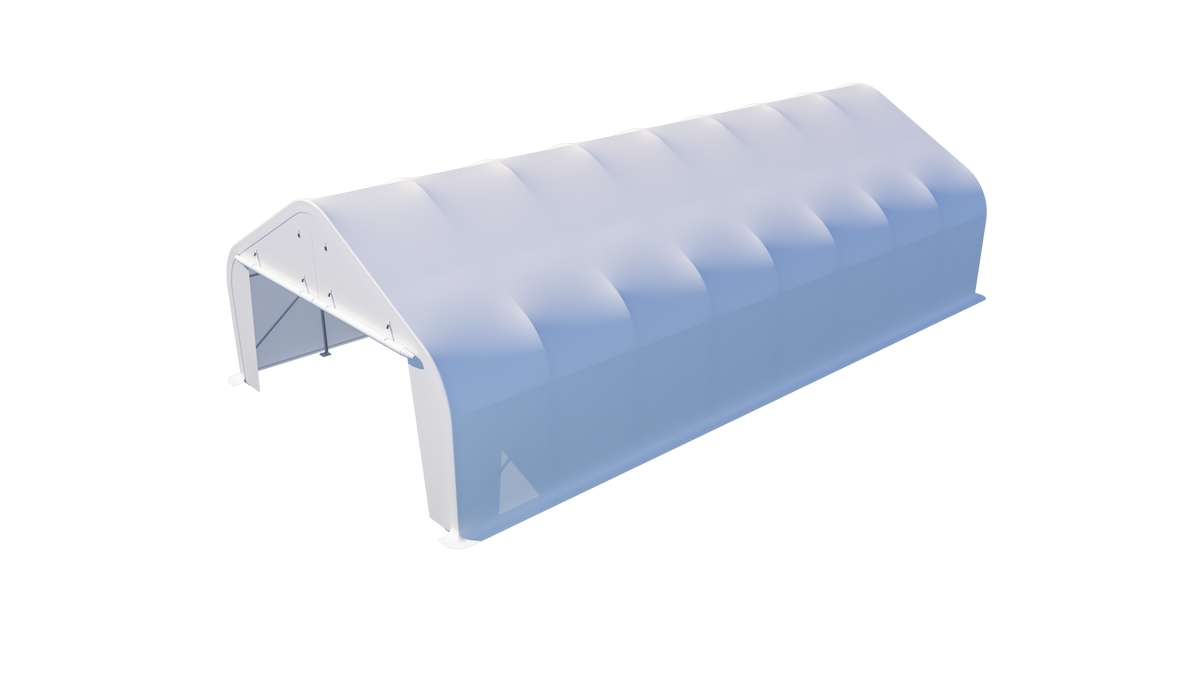

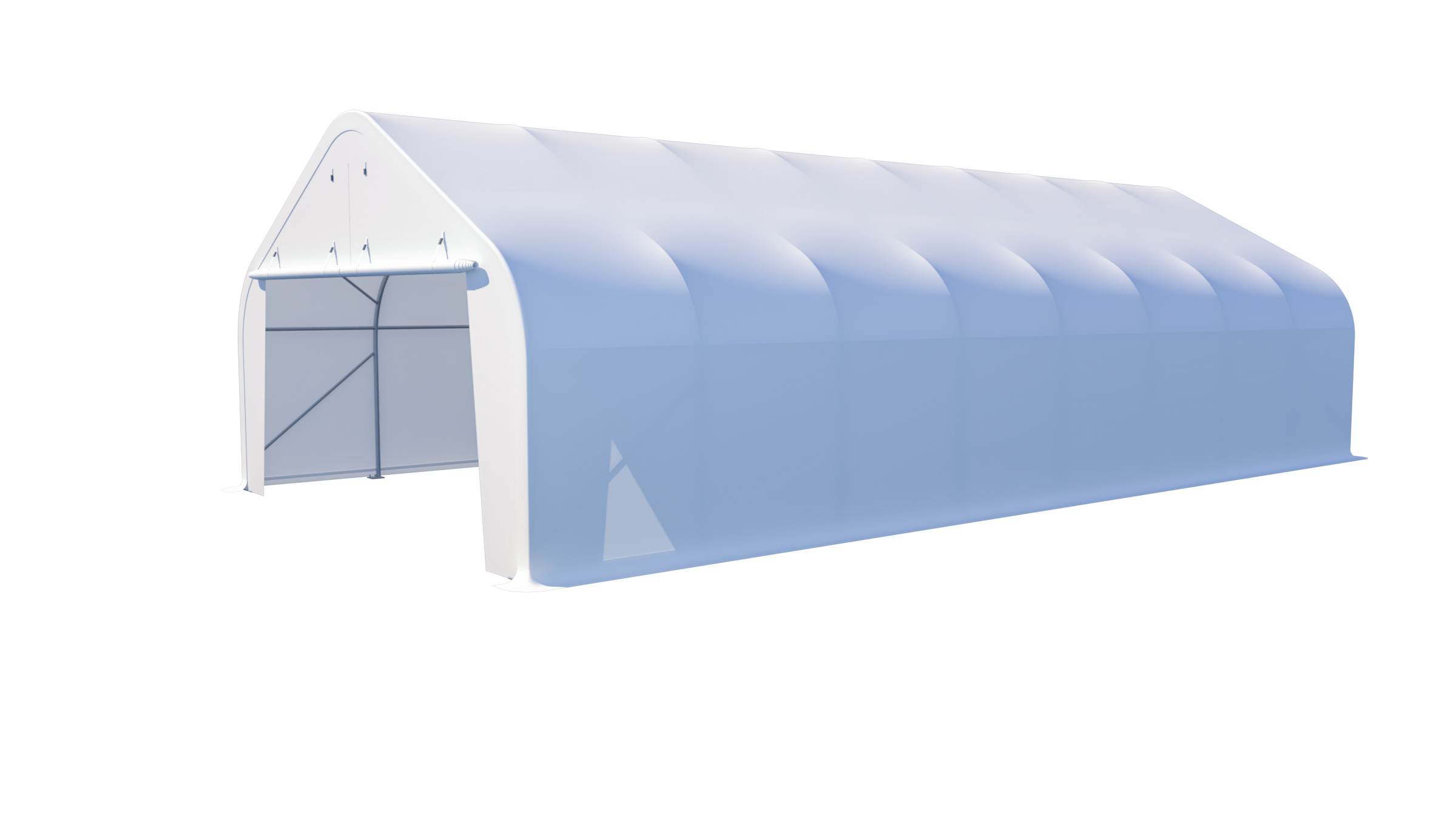

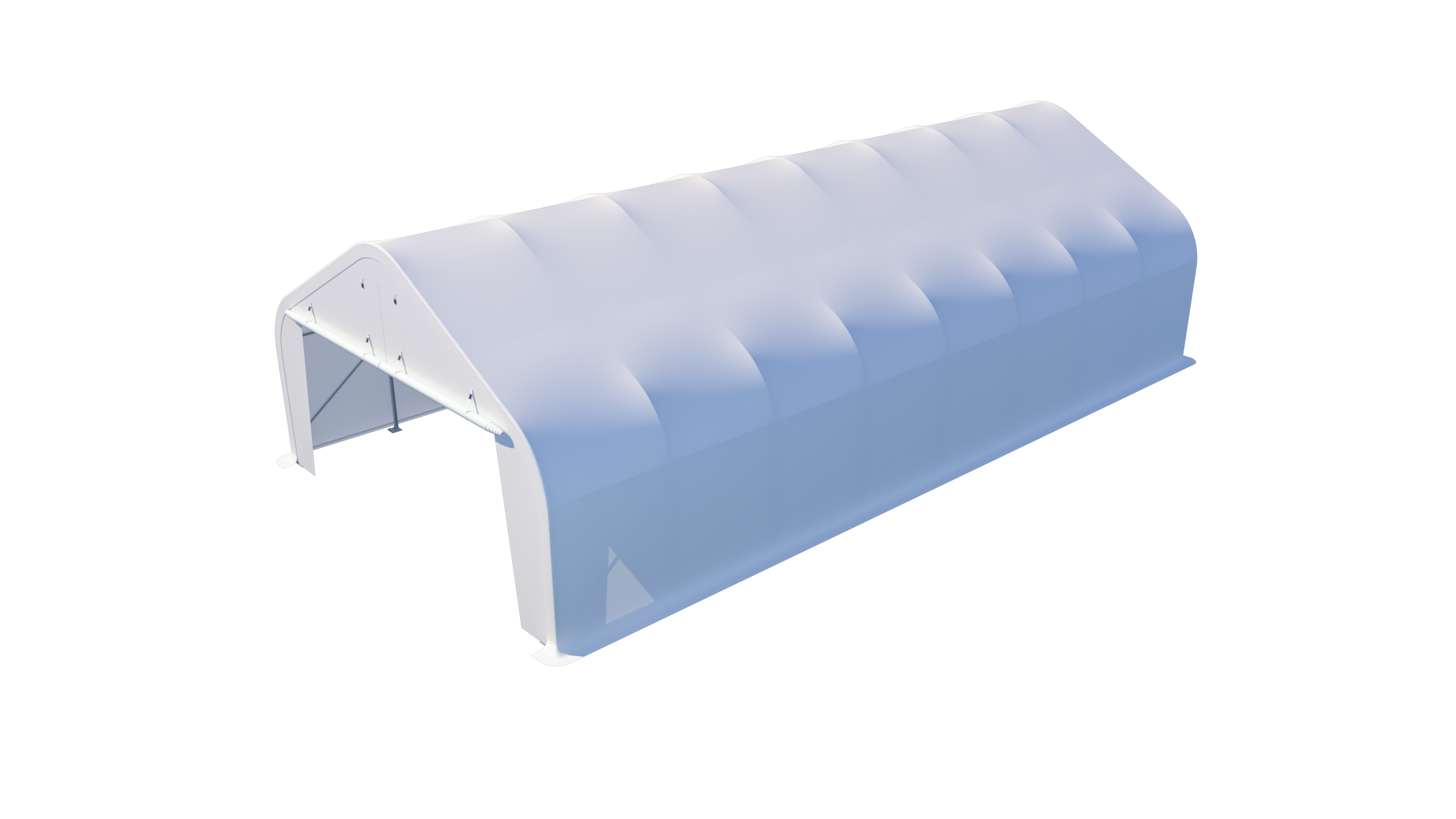

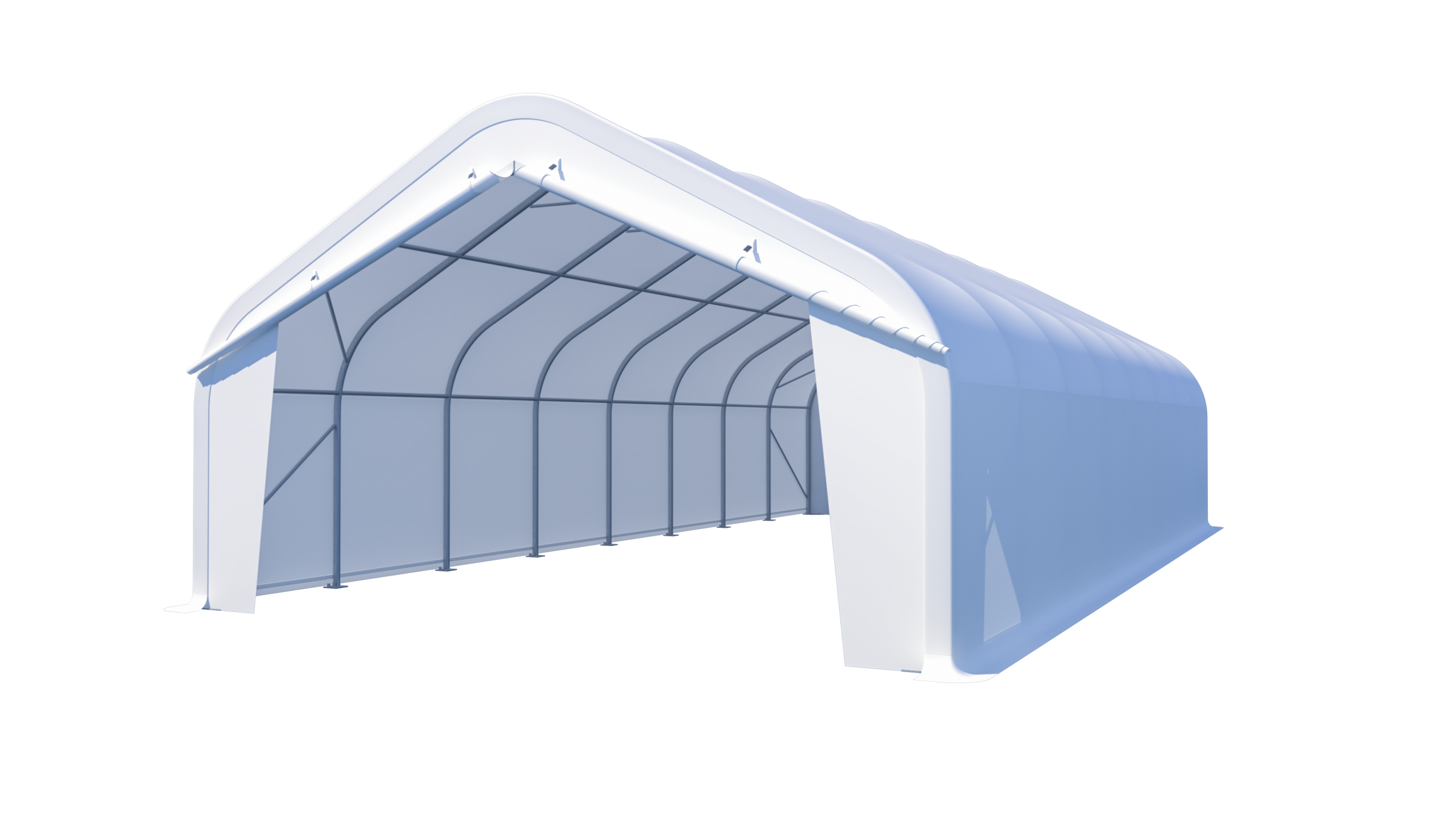

Gold Mountain Single Truss Peak Storage Shelter W20'xL40'xH12'

Name: Gold Mountain Single Truss Peak Storage Shelter W20'xL40'xH12'
Brand: Gold Mountain
SKU: SS-SP2040-420-5FT
Price: 4599.0 CAD
Availability: OutOfStock

Available soon

SKU: SS-SP2040-420-5FT

No reviews

$4,599.00

Material 420g PVC 5ft Arch space

Product variants

Preorder

Warranty

Frame 3 years, Tarp 2 years + 1 year prorated protection.

View details

Replacements

Parts

Product details

Usable Footprint: 800 ft² (74 m²) of covered floor with a 12' (3.66 m) peak height

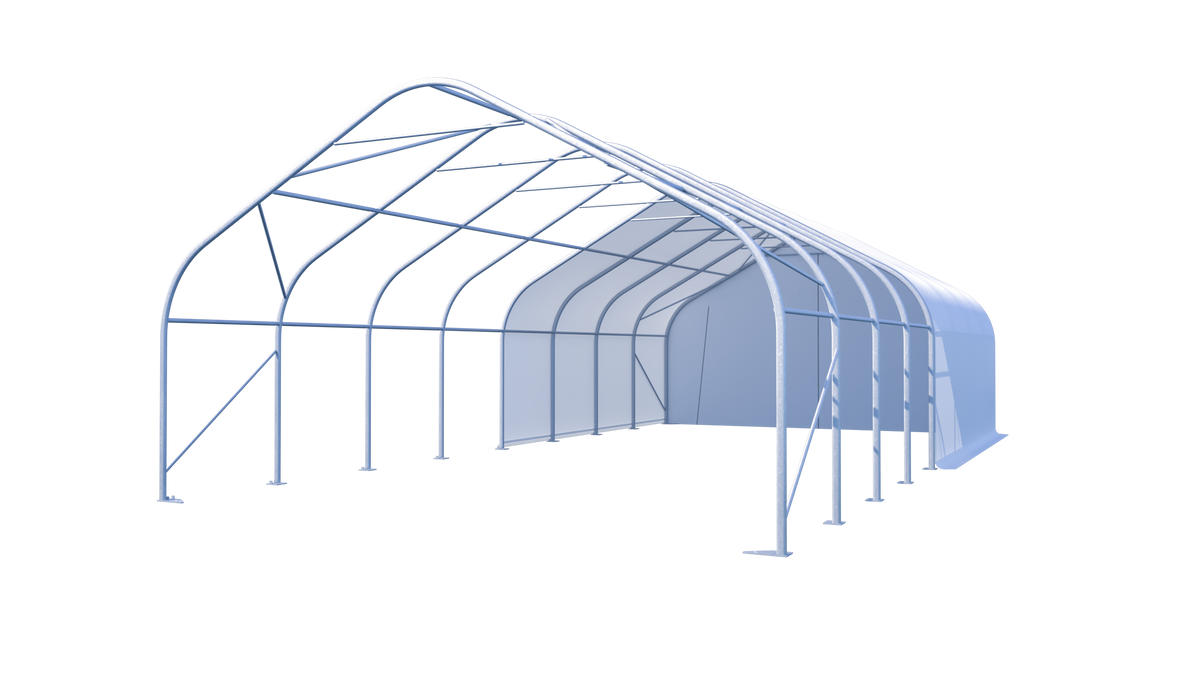

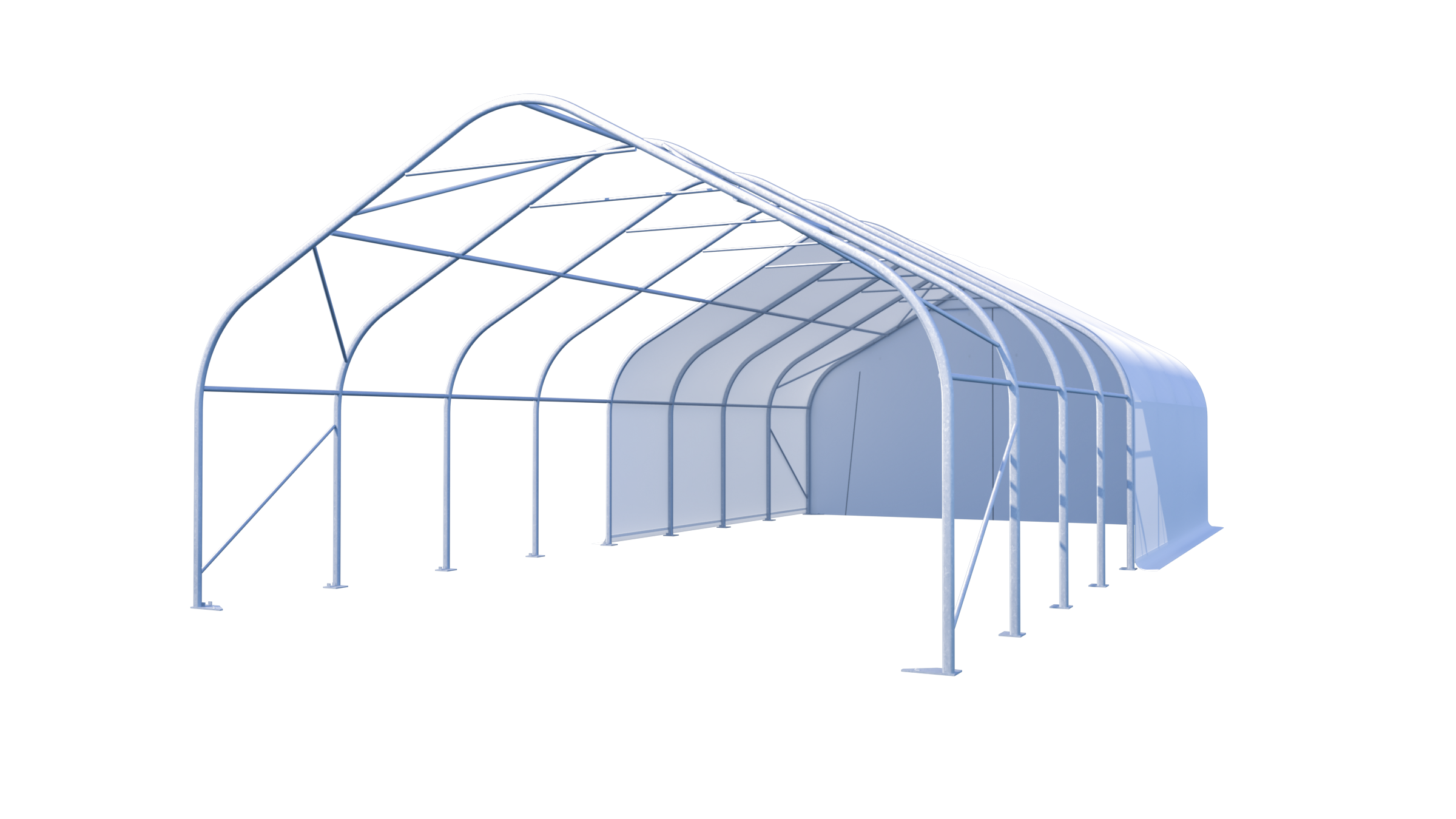

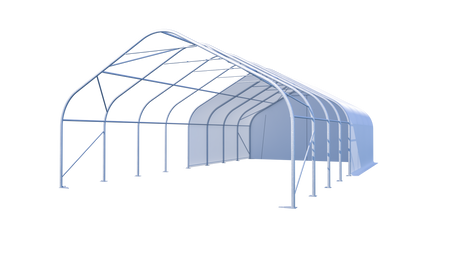

Galvanized Steel Frame: Single-truss frame with 9 main arches at 5' (1.52 m) spacing and 70 × 42 × 1.5 mm truss tube
Heavy-Duty PVC Cover: 420g PVC cover fabric protects stored equipment from rain, snow and sun
Snow and Wind Rated: Rated for a 37.6 psf (1.8 kN/m²) snow load and 7.1 psf (0.34 kN/m²) wind load

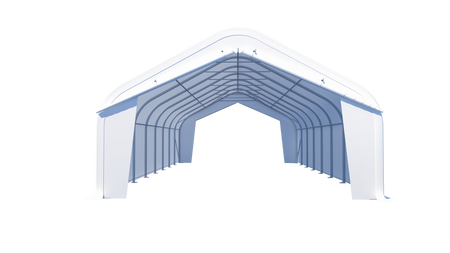

Large Door Opening: 15.9' × 10.8' (4.85 × 3.29 m) door opening for drive-in access

Overall Size (W × L × H)	20' × 40' × 12' (6.10 × 12.19 × 3.66 m)
Peak Height	12' (3.66 m)
Floor Area	800.83 ft² (74.4 m²)
Truss Spacing	5' / 6' (1.525 / 1.83 m)
Truss Tube	70 × 42 × 1.5 mm
Purlin Tube	Ø40 × 1.2 mm
Frame Material	Galvanized Steel
Cover Material	PE/PVC
Door Size (W × H)	15.9' × 10.8' (4.85 × 3.29 m)
Snow Load	1.8 kN/m² (37.6 psf)
Wind Load	0.34 kN/m² (7.1 psf)

Product manuals and documents

202012P_203012P_204012P_5ft_EN.pdf

View Download

Product details

Usable Footprint: 800 ft² (74 m²) of covered floor with a 12' (3.66 m) peak height
Galvanized Steel Frame: Single-truss frame with 9 main arches at 5' (1.52 m) spacing and 70 × 42 × 1.5 mm truss tube
Heavy-Duty PVC Cover: 420g PVC cover fabric protects stored equipment from rain, snow and sun
Snow and Wind Rated: Rated for a 37.6 psf (1.8 kN/m²) snow load and 7.1 psf (0.34 kN/m²) wind load
Large Door Opening: 15.9' × 10.8' (4.85 × 3.29 m) door opening for drive-in access

Overall Size (W × L × H)	20' × 40' × 12' (6.10 × 12.19 × 3.66 m)
Peak Height	12' (3.66 m)
Floor Area	800.83 ft² (74.4 m²)
Truss Spacing	5' / 6' (1.525 / 1.83 m)
Truss Tube	70 × 42 × 1.5 mm
Purlin Tube	Ø40 × 1.2 mm
Frame Material	Galvanized Steel
Cover Material	PE/PVC
Door Size (W × H)	15.9' × 10.8' (4.85 × 3.29 m)
Snow Load	1.8 kN/m² (37.6 psf)
Wind Load	0.34 kN/m² (7.1 psf)

Product manuals and documents

202012P_203012P_204012P_5ft_EN.pdf

View Download

Comparison

Attribute	Current Heavy Duty 9 arches W20'xL40'xH12' $4,599.00	Heavy Duty 9 arches W20'xL40'xH12' $4,599.00	Heavy Duty 5 arches W20'xL40'xH16' $8,199.00	Heavy Duty 5 arches W20'xL40'xH16' $8,199.00
Door size	W15.9' x H10.8'	W14.4' x H10.7'	W12.0' x H8.2'	W12.0' x H9.3'
Snow load	1.8 kPa	1.8 kPa	2.0 kPa	2.0 kPa
Wind load	0.34 kPa	0.34 kPa	0.37 kPa	0.37 kPa
Warranty	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.
