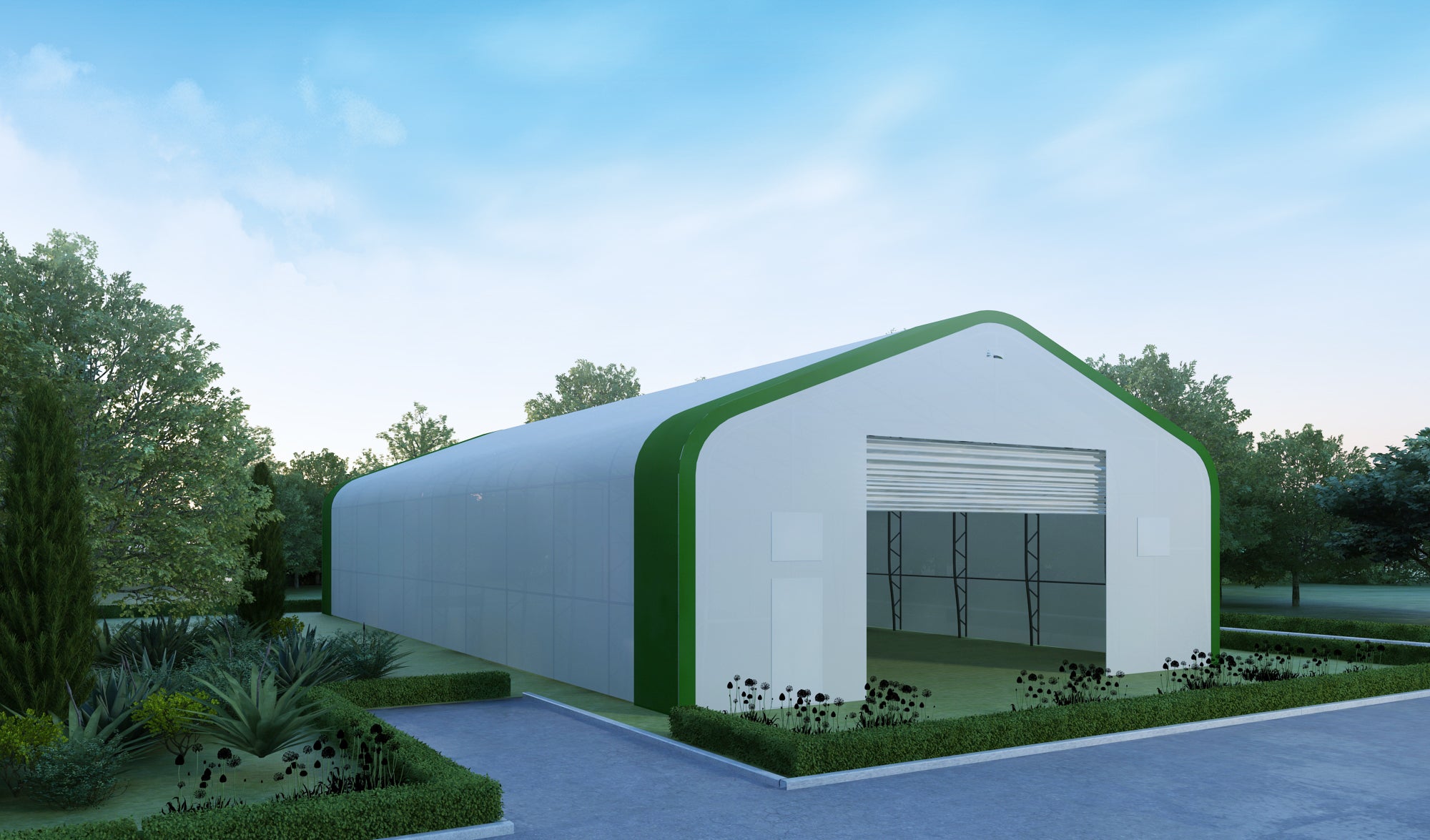

Double Truss Peak M Model Storage Shelter W50'xL100'xH23'

Name: Double Truss Peak M Model Storage Shelter W50'xL100'xH23'
Brand: Chery Industrial Canada
SKU: SS-DPM50100-750
Price: 49999.0 CAD
Availability: OutOfStock

Available soon

SKU: SS-DPM50100-750

No reviews

$49,999.00

Material 750g PVC

Product variants

Preorder

Warranty

Frame 8 years, Tarp 2 years + 6 year prorated protection.

View details

Replacements

Parts

Product details

Usable Footprint: 5,000 ft² (465 m²) of covered floor with a 23' (7.01 m) peak height

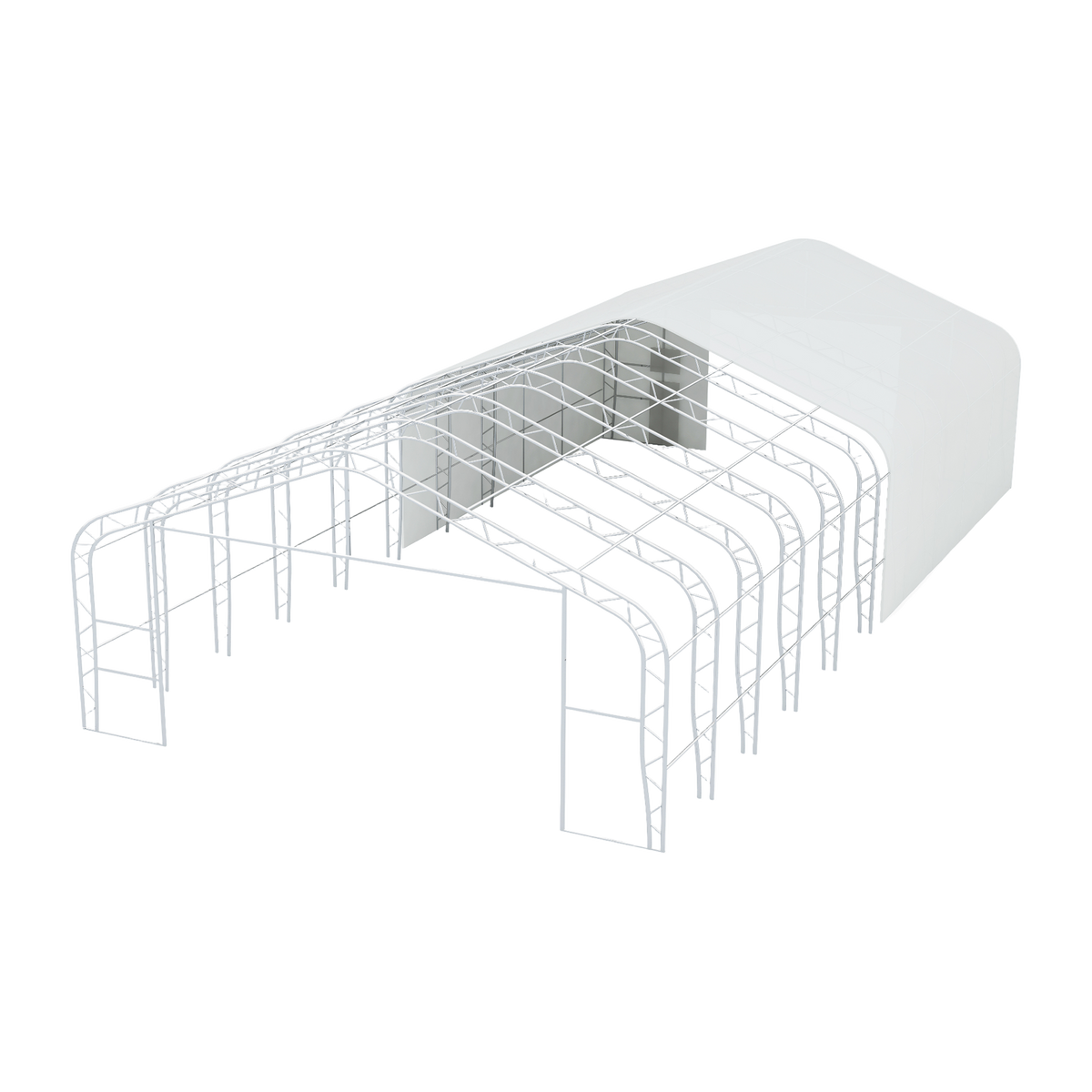

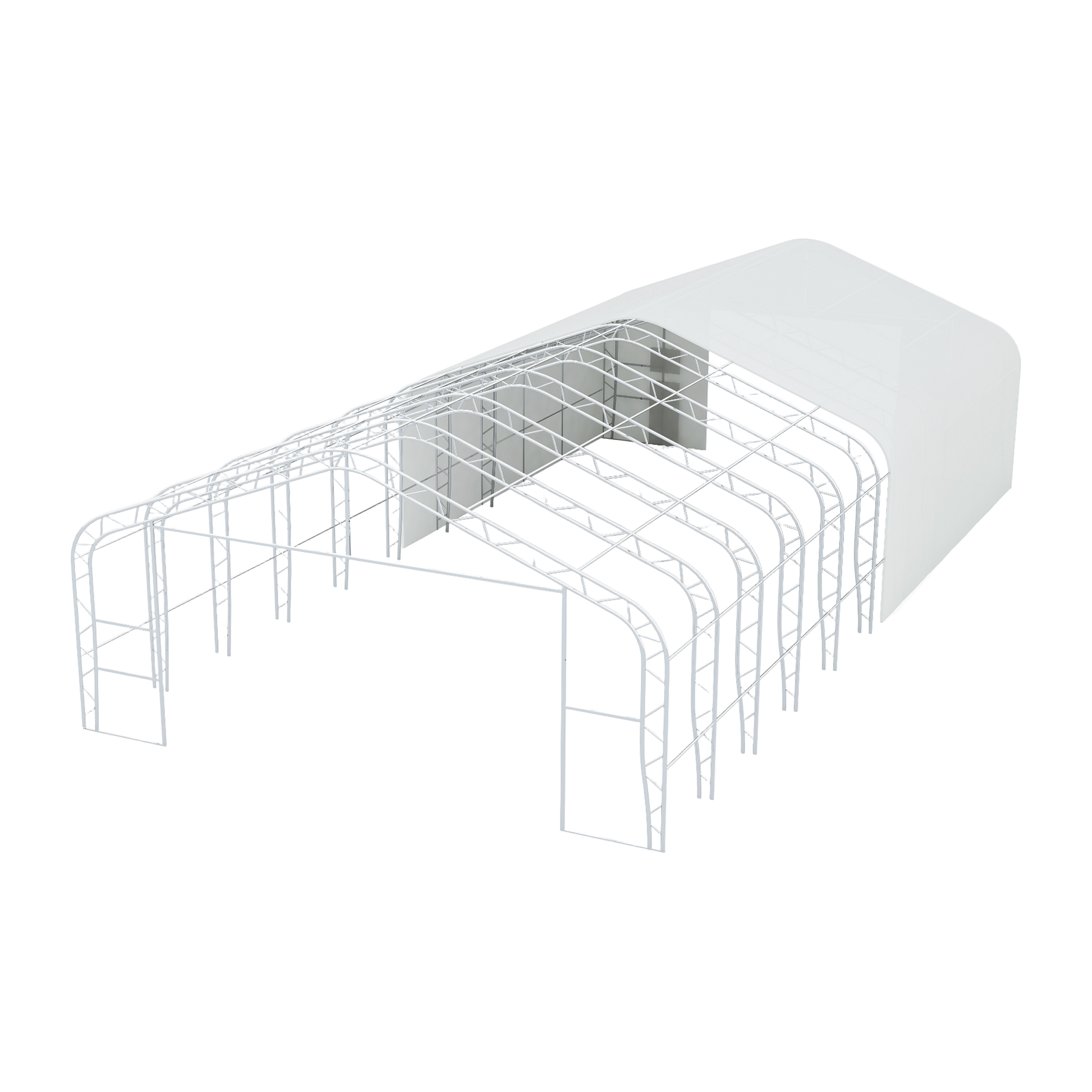

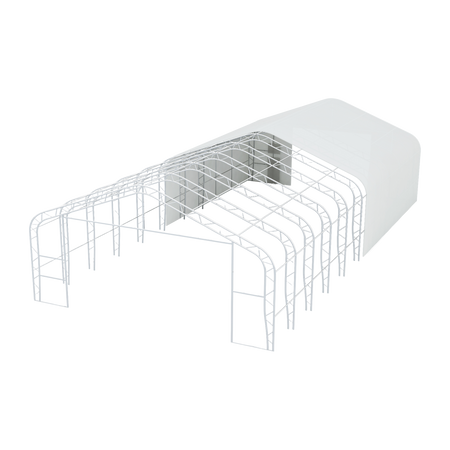

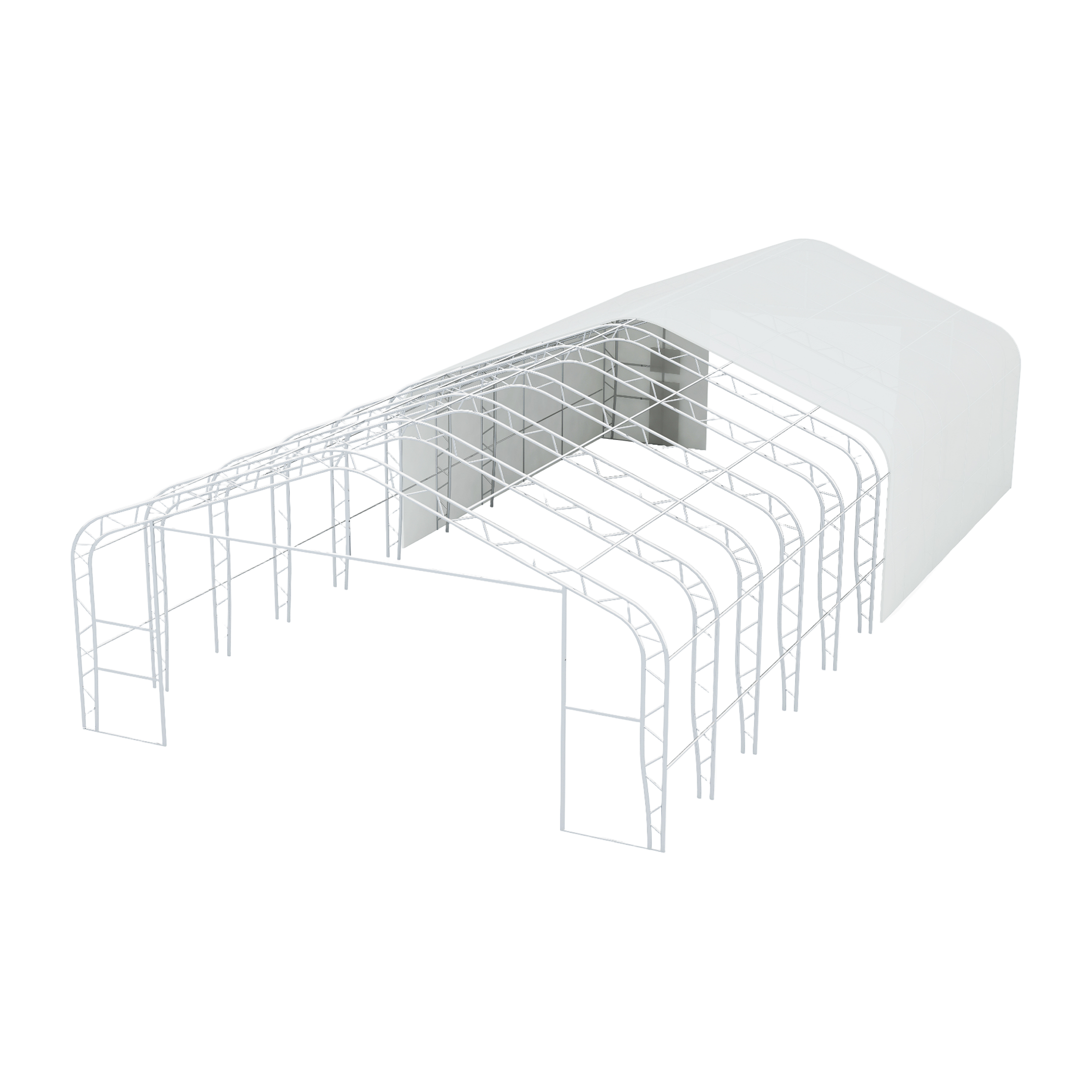

Galvanized Steel Frame: Double-truss frame with 11 main arch groups at 10' (3.05 m) spacing and Ø60 × 1.5 mm truss tube

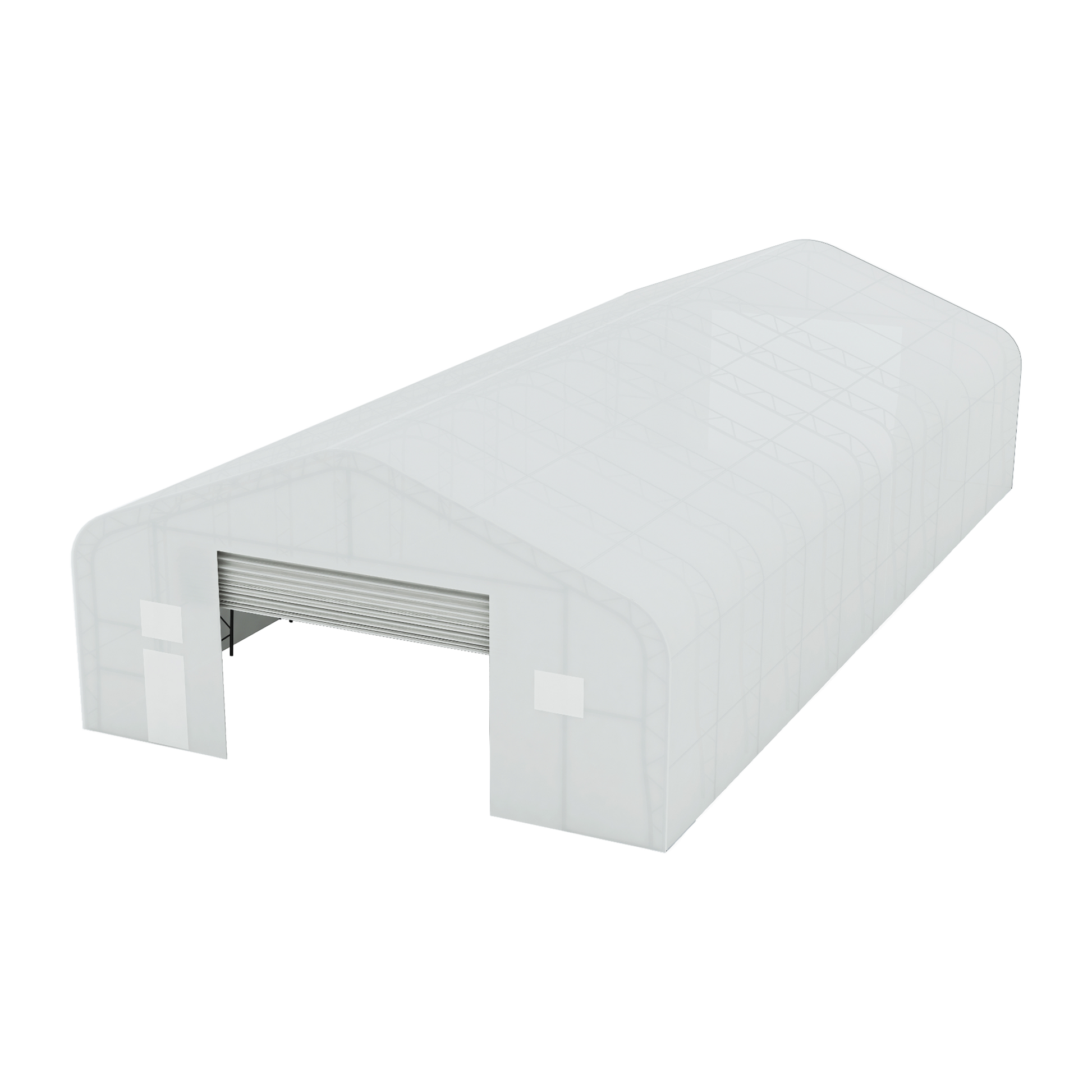

Heavy-Duty PVC Cover: 750g PVC cover fabric protects stored equipment from rain, snow and sun
Snow and Wind Rated: Rated for a 41.8 psf (2 kN/m²) snow load and 7.7 psf (0.37 kN/m²) wind load
Large Door Opening: 18' × 16' (5.49 × 4.88 m) door opening for drive-in access

Overall Size (W × L × H)	50' × 100' × 23' (15.24 × 30.48 × 7.01 m)
Peak Height	23' (7.01 m)
Truss Spacing	10' (3.05 m)
Truss Tube	Ø60 × 1.5 mm
Frame Material	Galvanized Tube
Door Size (W × H)	18' × 16' (5.49 × 4.88 m)
Snow Load	2 kN/m² (41.8 psf)
Wind Load	0.37 kN/m² (7.7 psf)

Product details

Usable Footprint: 5,000 ft² (465 m²) of covered floor with a 23' (7.01 m) peak height
Galvanized Steel Frame: Double-truss frame with 11 main arch groups at 10' (3.05 m) spacing and Ø60 × 1.5 mm truss tube
Heavy-Duty PVC Cover: 750g PVC cover fabric protects stored equipment from rain, snow and sun
Snow and Wind Rated: Rated for a 41.8 psf (2 kN/m²) snow load and 7.7 psf (0.37 kN/m²) wind load
Large Door Opening: 18' × 16' (5.49 × 4.88 m) door opening for drive-in access

Overall Size (W × L × H)	50' × 100' × 23' (15.24 × 30.48 × 7.01 m)
Peak Height	23' (7.01 m)
Truss Spacing	10' (3.05 m)
Truss Tube	Ø60 × 1.5 mm
Frame Material	Galvanized Tube
Door Size (W × H)	18' × 16' (5.49 × 4.88 m)
Snow Load	2 kN/m² (41.8 psf)
Wind Load	0.37 kN/m² (7.7 psf)

No manuals or documents are available for this product.

Comparison

Attribute	Basic 11 arches Wshelter-50'xL100'xH23' $29,999.00	Heavy Duty 9 arches W50'xL80'xH25' $39,999.00	Heavy Duty 11 arches W50'xL100'xH25' $48,999.00	Current Heavy Duty 11 arches W50'xL100'xH23' $49,999.00
Door size	W18.0' x H16.0'	W18.0' x H16.0'	W18.0' x H16.0'	W18.0' x H16.0'
Snow load	2.0 kPa	2.0 kPa	2.0 kPa	2.0 kPa
Wind load	0.37 kPa	0.37 kPa	0.37 kPa	0.37 kPa
Warranty	Frame 5 years, Tarp 2 years + 3 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.	Frame 8 years, Tarp 2 years + 6 year prorated protection.
