Home / Shelter / Gold Mountain Single Truss Round Storage Shelter W30'xL64'xH15' 4FT - 500g PVC
Gold Mountain

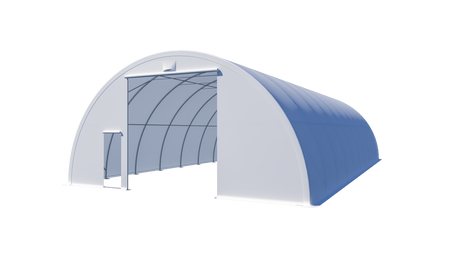

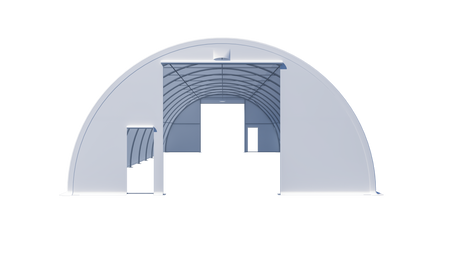

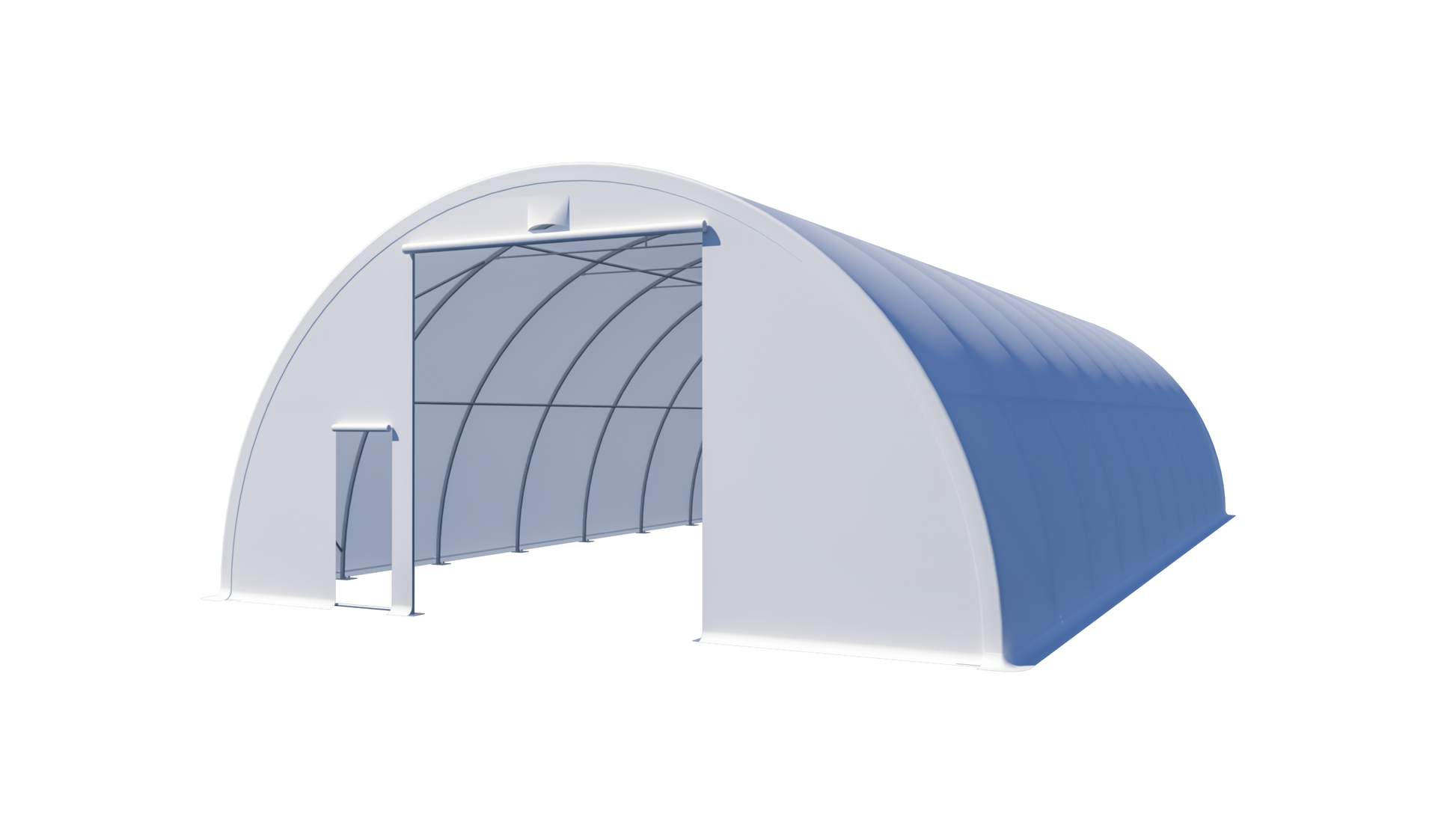

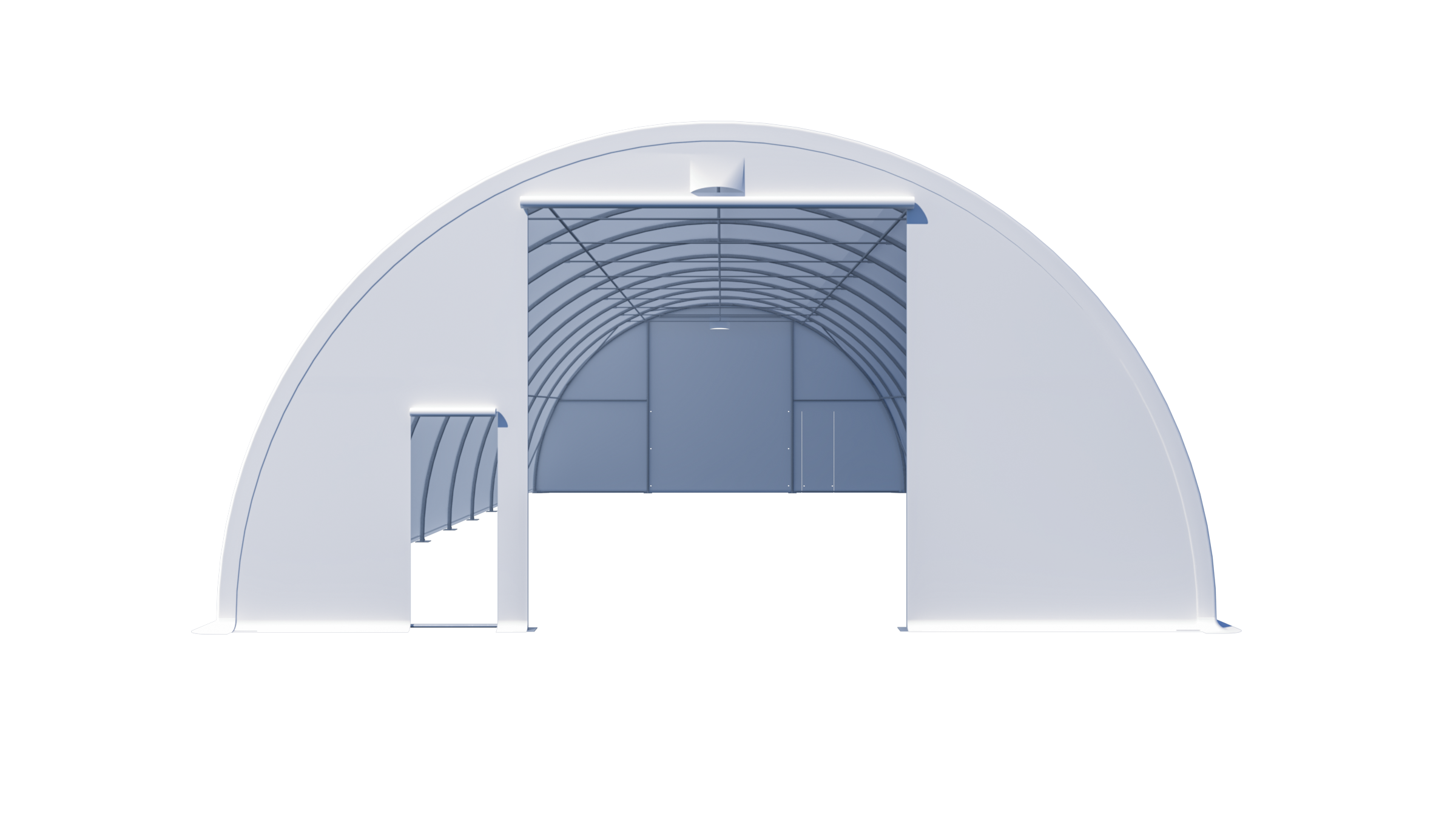

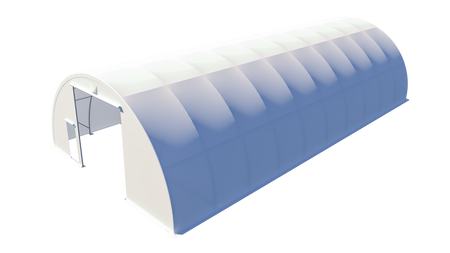

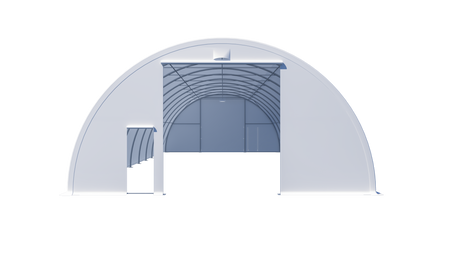

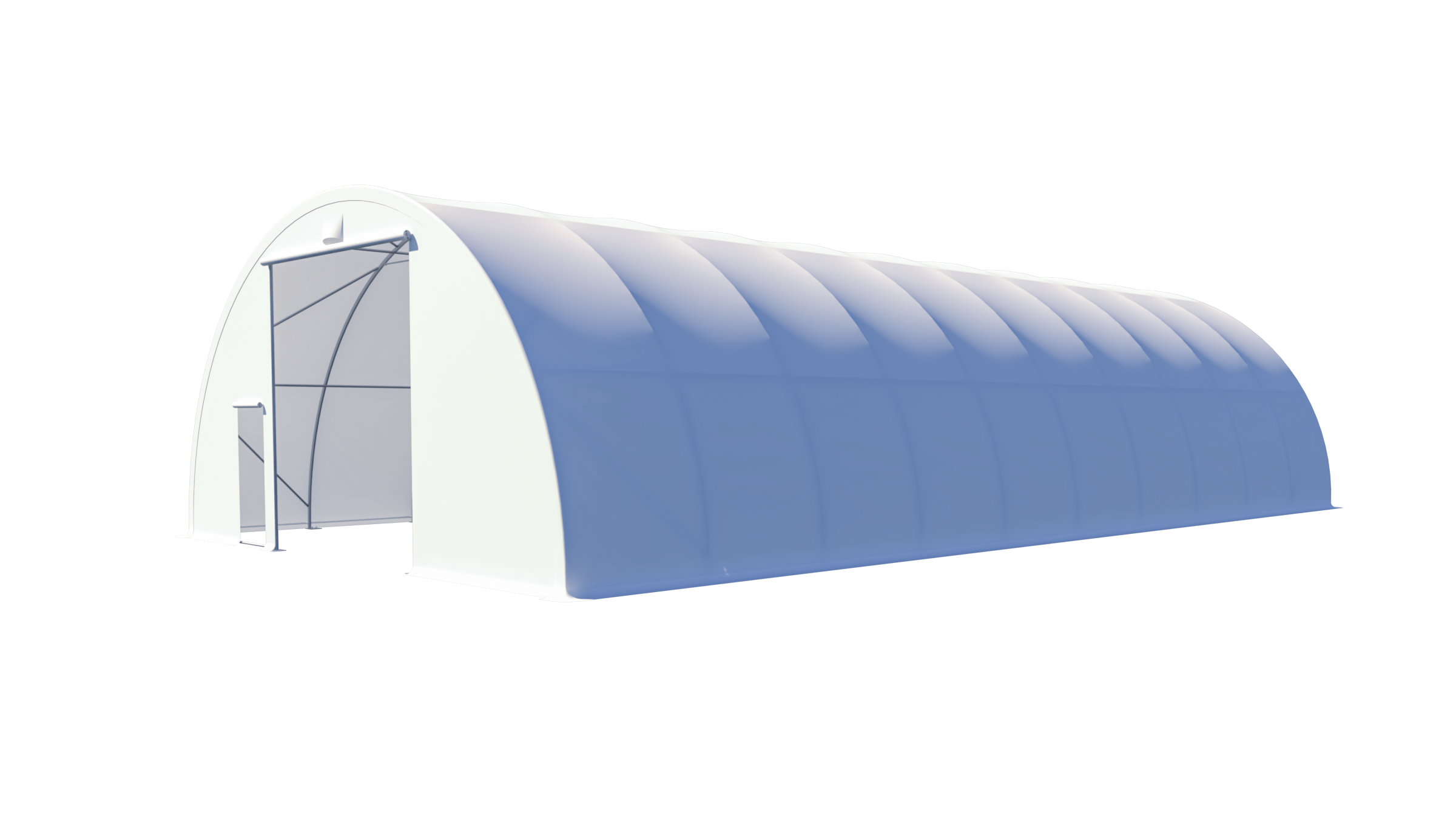

Gold Mountain Single Truss Round Storage Shelter W30'xL64'xH15' 4FT - 500g PVC

Available soon
SKU: SS-SR3064-500
No reviews
$11,000.00
1-800-765-0877
Description Features Specifications Shipping Warranty Manual Reviews

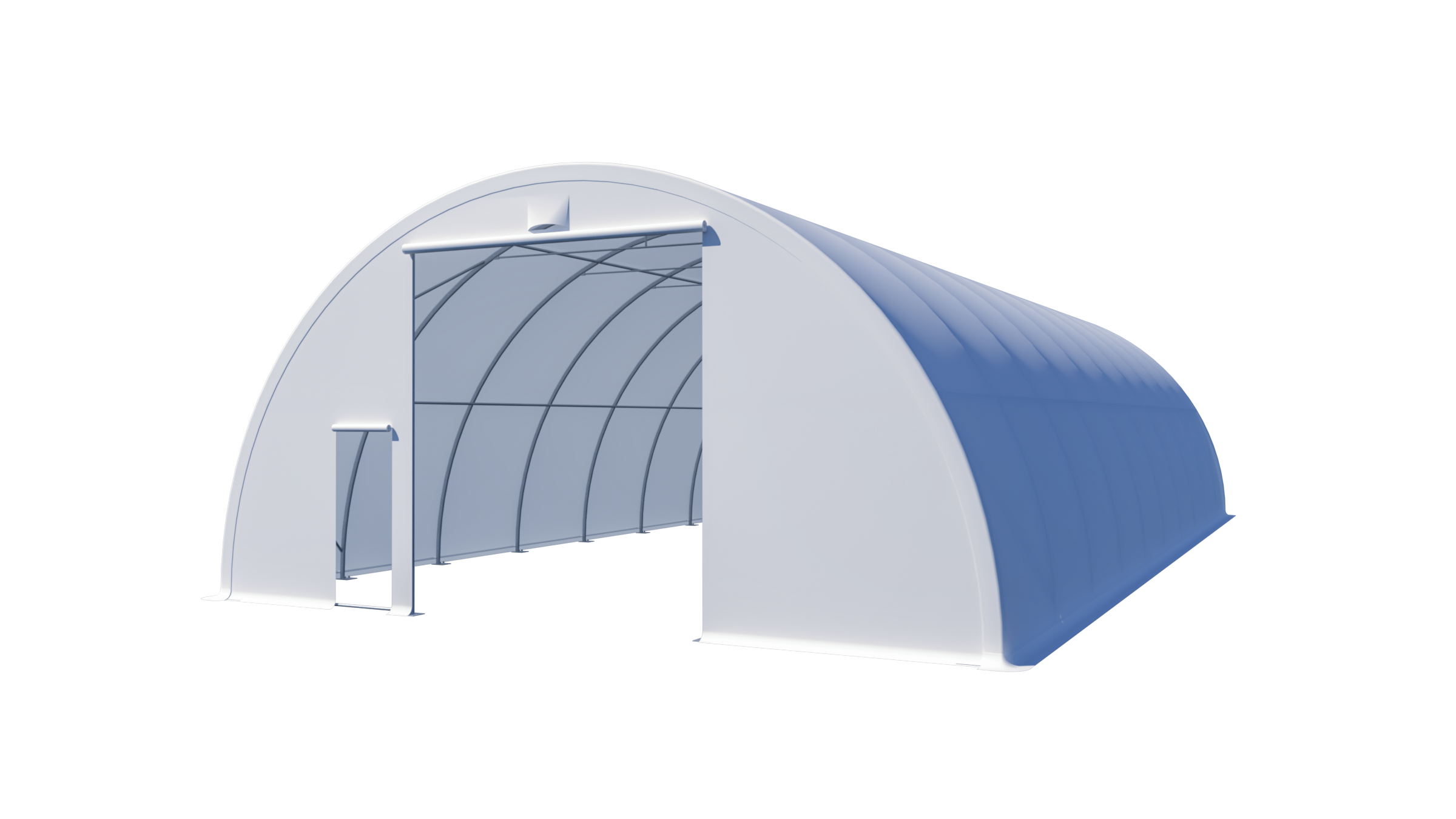

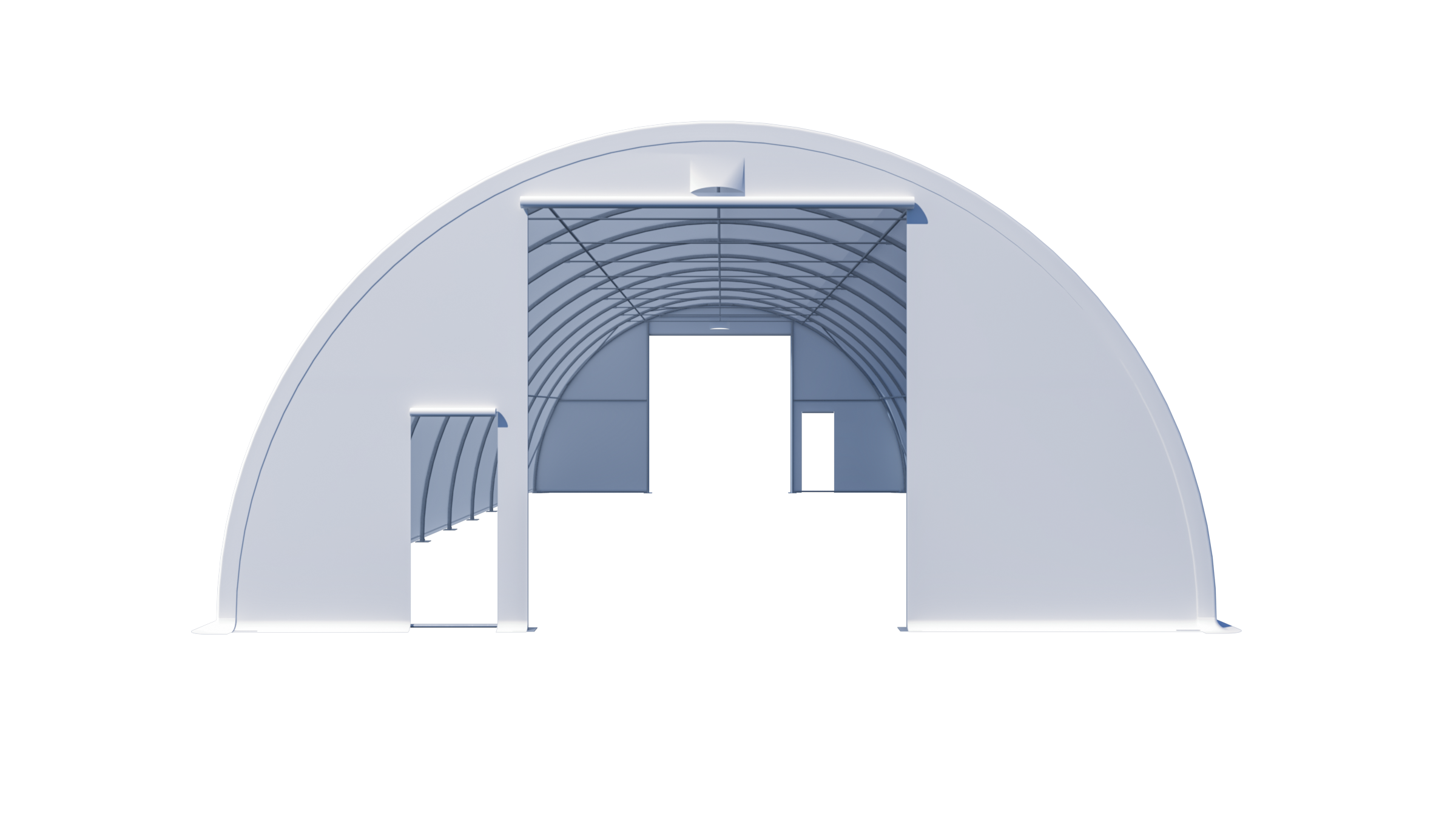

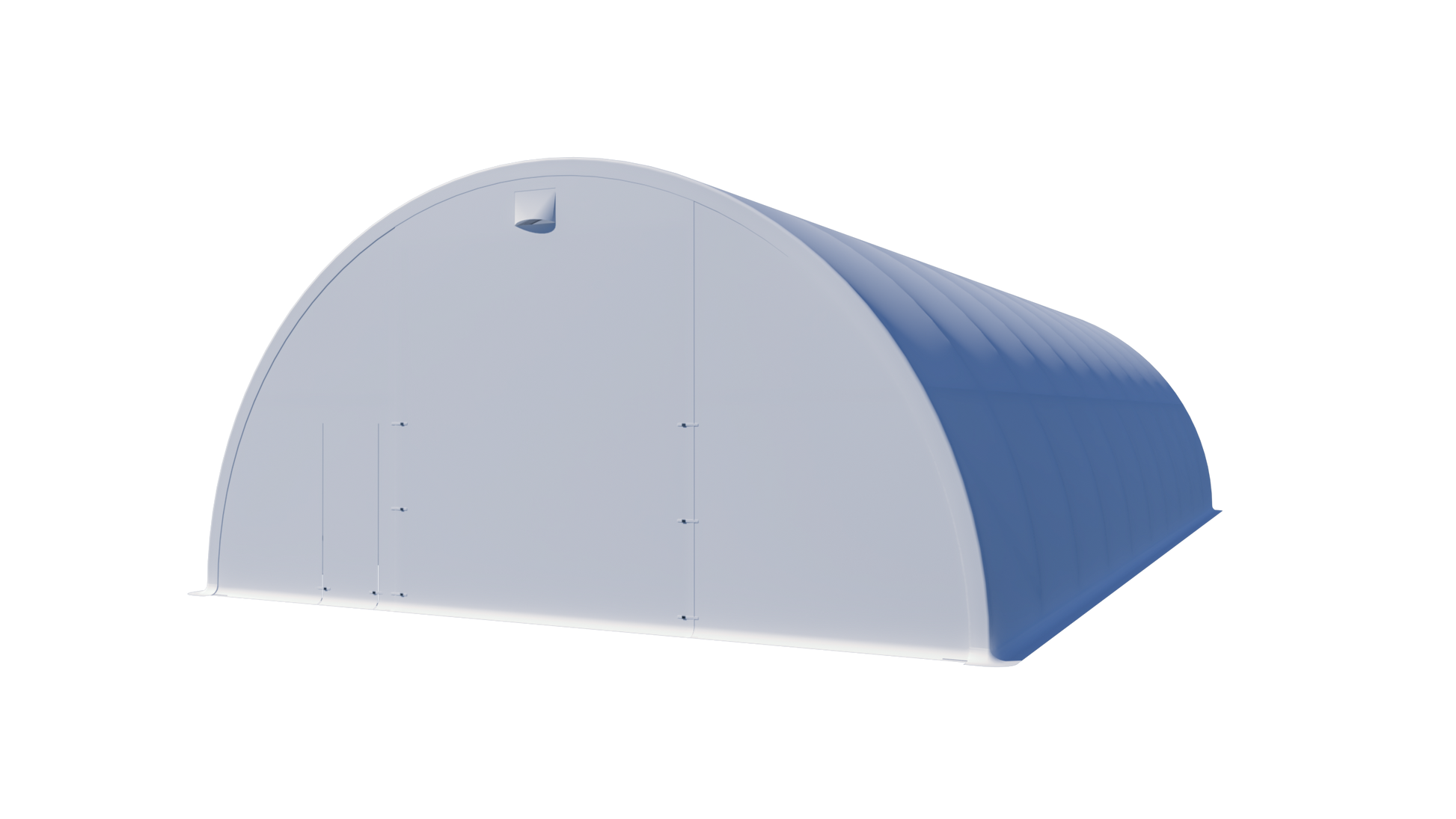

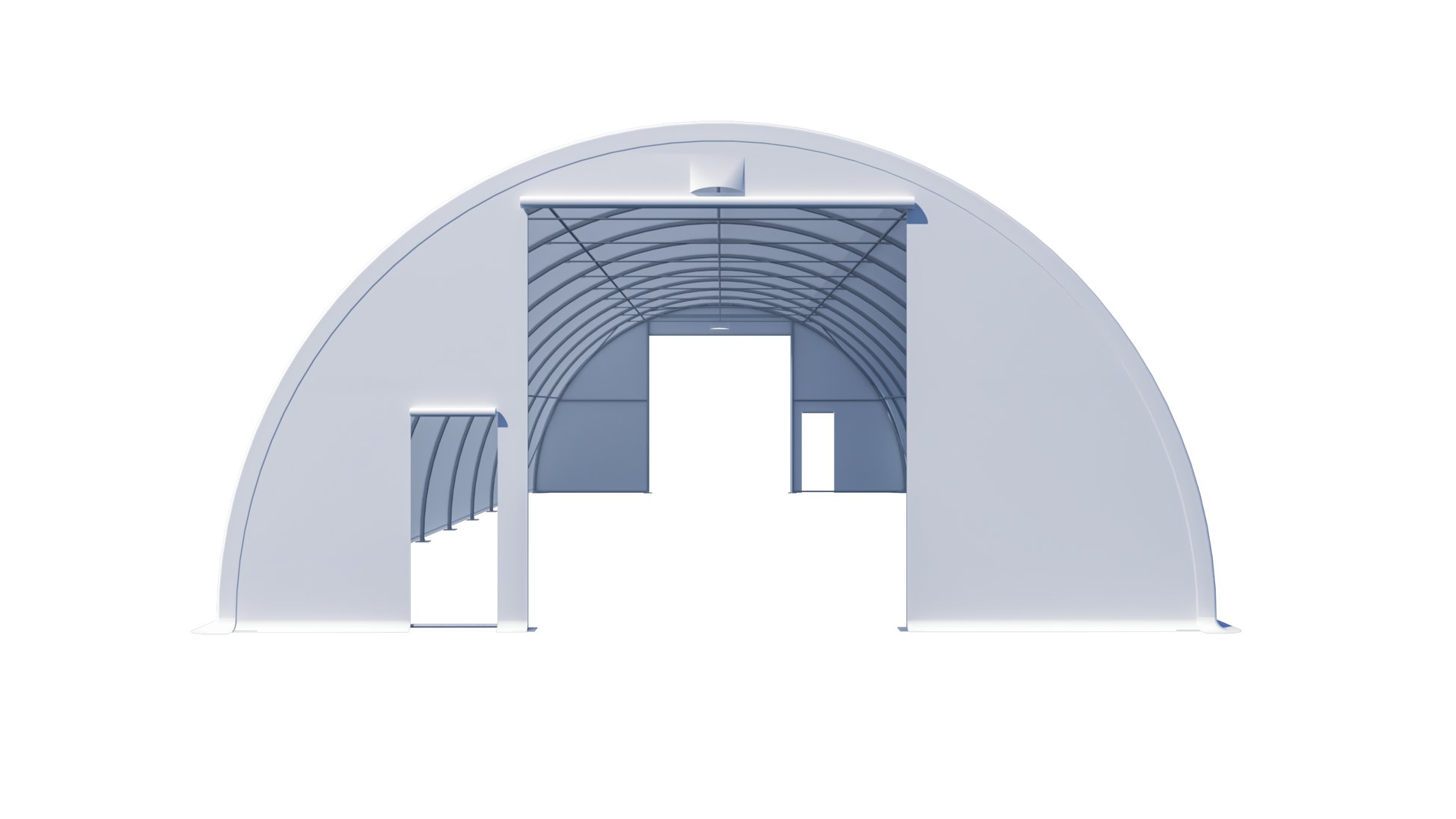

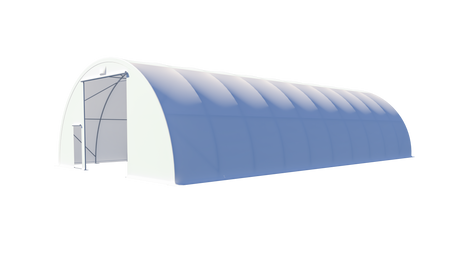

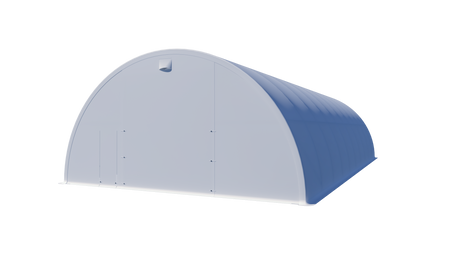

The Gold Mountain Single Truss Arch Storage Shelter W30’xL64’xH15’ (306415) is the perfect choice for anyone looking for a reliable and durable storage solution. This truss construction storage shelter is designed to be resistant towards water, UV, and fading, and can last up to 7-10 years under the right conditions. It features a freestanding style, mechanical doors at both ends, and a huge capacity for trucks, automobiles, and more bulk storage. This storage shelter will protect your belongings from wind, snow, and rain, and has a CSA/TUV Snow Rating Test Report and SGS fabric Certificate to guarantee its quality. Whether you need to store equipment, materials, or recreational items, the Gold Mountain Single Truss Arch Storage Shelter W30’xL64’xH15’ is the perfect choice.

It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tighten before next winter.

Parts

  • Cover replacement
  • Front panel
  • Rear Panel

The Gold Mountain Single Truss Arch Storage Shelter W30’xL64’xH15’ (306415) is the perfect choice for anyone looking for a reliable and durable storage solution. This truss construction storage shelter is designed to be resistant towards water, UV, and fading, and can last up to 7-10 years under the right conditions. It features a freestanding style, mechanical doors at both ends, and a huge capacity for trucks, automobiles, and more bulk storage. This storage shelter will protect your belongings from wind, snow, and rain, and has a CSA/TUV Snow Rating Test Report and SGS fabric Certificate to guarantee its quality. Whether you need to store equipment, materials, or recreational items, the Gold Mountain Single Truss Arch Storage Shelter W30’xL64’xH15’ is the perfect choice.

It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tighten before next winter.

Parts

  • Cover replacement
  • Front panel
  • Rear Panel
No feature content found.

Product Dimension

9.15m*20m*4.5m/30'*65'*15'

Floor Footprint

181m2/1950ft2

Highest Height

4.5m/15’

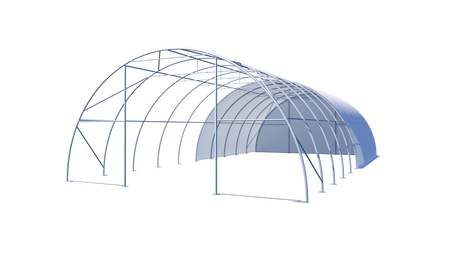

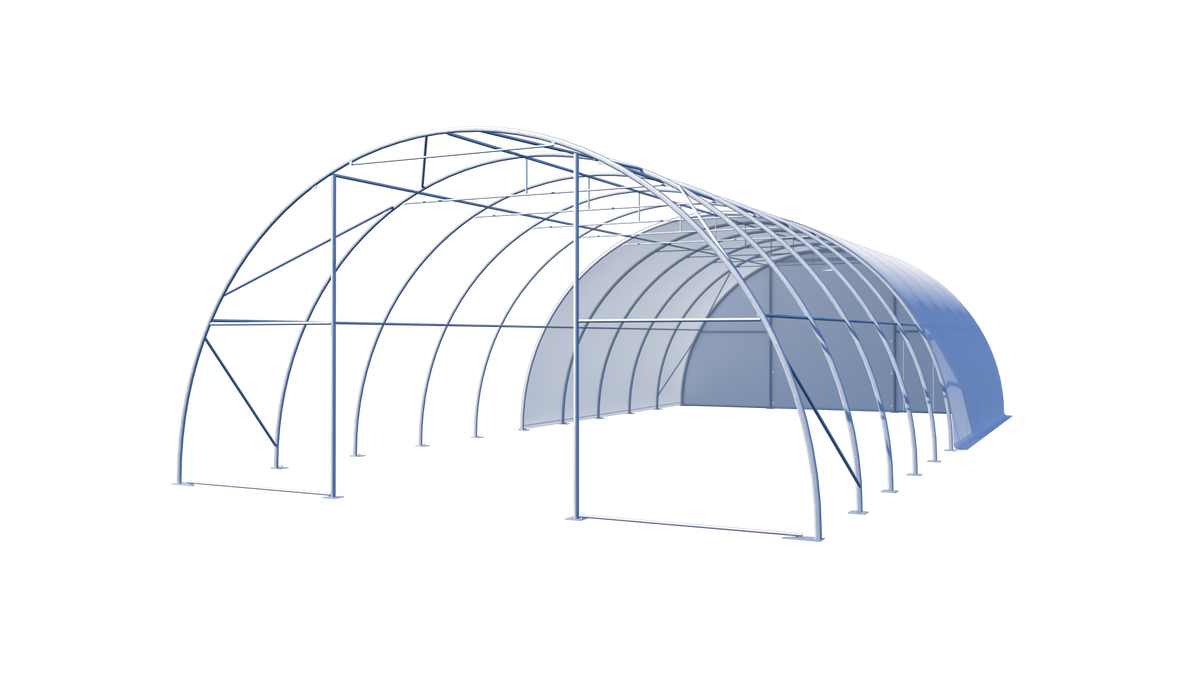

Frame Material

Galvanized Steel

Cover Material

PVC/PE

Main Arch Tube Diameter

42mm/1.65''

Main Arch Tube Thickness

2mm/0.08''

Main Arch Space

2m/6.56'

Purlin Tube Diameter

40mm/1.57''

Purlin Tube Thickness

1.5mm/0.06''

Door Size

3.5m*3.5m/11.4'*11.4'

 Snow Rate Test Result:

306515R

Test Load

Deflection

Lb

Kpa

Point A (inch)

Point B (inch)

Point C (inch)

Step 1

0

0

0

0

0

Step 2

1005

1.52

1.4

1.6

1.2

Step 3

1507

2.28

2.2

2.3

1.6

Step 4

Keep the test load until 30 minutes

Step 5

Remove the test load

0.6

1.1

1.2

Step 6

The test sample can withstand the applied test load without damage.

Material

Package Size

Package Weight

300gPE

2.95m*0.75m*0.98m/116.14"*29.53"*38.58"

1120kg/2464lbs

450gPVC

2.95m*0.75m*0.98m/116.14"*29.53"*38.58"

1245kg/2739lbs

500gPVC

2.95m*0.75m*0.98m/116.14"*29.53"*38.58"

1185kg/2607lbs

  • Please have a forklift or equivalent ready for unloading

We've got you covered with comprehensive warranties for all our shelters:

  • All shelters include full coverage for the frame.
  • The tarpaulin material comes with a basic 2-year warranty, with some models offering prorated protection.

Single Truss (PE Material):
2-year warranty for both the frame and tarpaulin material.

Single Truss (PVC Material):
3-year warranty for the frame
2-year warranty for the tarpaulin material + 1-year prorated protection.

Double Truss:
5-year warranty for the frame
2-year warranty for the tarpaulin material + 3-year prorated protection.

Double Truss "M" Style:
8-year warranty for the frame
2-year warranty for the tarpaulin material + 6-year prorated protection.

Product Manuals & Documents (Manuels et documents sur les produits)

304015R_306415R_308415R.pdf

View Download

304015R_306415R_308415R_FR.pdf

View Download
