Gold Mountain Single Truss Round Storage Shelter W30'xL85'xH15'

Name: Gold Mountain Single Truss Round Storage Shelter W30'xL85'xH15'
Brand: Gold Mountain
SKU: SS-SR3085-500
Price: 8999.0 CAD
Availability: InStock

Only 2 left

SKU: SS-SR3085-500

No reviews

$8,999.00

~~$11,000.00~~ -18% $8,999.00

Material 500g PVC

Product variants

Warranty

Frame 3 years, Tarp 2 years + 1 year prorated protection.

View details

Replacements

Accessories Parts

Product details

Usable Footprint: 2,550 ft² (237 m²) of covered floor with a 15' (4.5 m) peak height

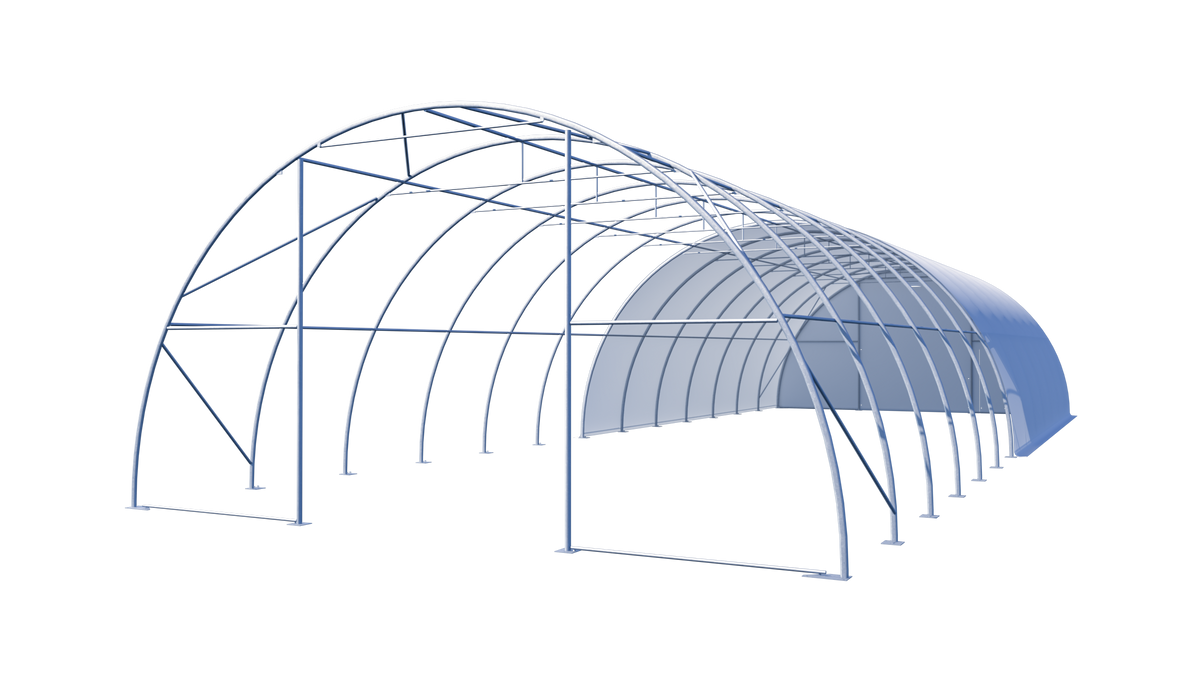

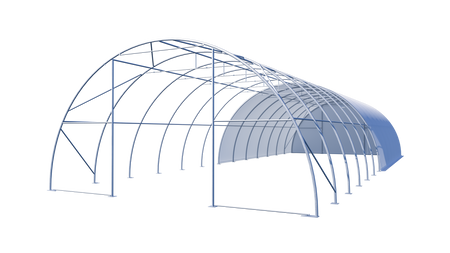

Galvanized Steel Frame: Single-truss frame with 14 main arches at 6.56' (2 m) spacing and Ø42 × 2 mm truss tube
Fire-Retardant Fabric: Water- and UV-resistant 500g PVC; a tested sample met DIN 4102-1 Class B2
Snow and Wind Rated: Rated for a 33.4 psf (1.6 kN/m²) snow load and 6.3 psf (0.3 kN/m²) wind load
Large Door Opening: 11.5' × 11.5' (3.51 × 3.51 m) rope pull-up door for drive-in access
Load Tested: Test sample held 1,507 lb (2.28 kPa) for 30 minutes without damage
Long Service Life: Tarp and frame lifespan of 7–10 years with proper care

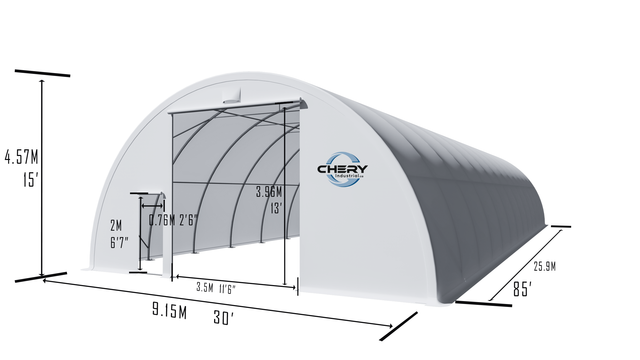

Overall Size (W × L × H)	30' × 85' × 15' (9.15 × 26 × 4.5 m)
Peak Height	15' (4.5 m)
Floor Area	2550 ft² (237 m²)
Truss Spacing	6.56' (2 m)
Truss Tube	Ø42 × 2 mm
Purlin Tube	Ø40 × 1.5 mm
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Door Size (W × H)	11.5' × 11.5' (3.51 × 3.51 m)
Door Type	Rope Pullup Door
Snow Load	1.6 kN/m² (33.4 psf)
Wind Load	0.3 kN/m² (6.3 psf)
Package Size	115 × 29 × 44 in
Shipping Weight	3,080 lbs (1,397 kg)
Tarp / Frame Lifespan	7-10 years*

Snow Rate Test Result (Model 308515R): tested up to 1507 lb / 2.28 kPa. The test sample withstood the applied test load without damage.

Product details

Usable Footprint: 2,550 ft² (237 m²) of covered floor with a 15' (4.5 m) peak height
Galvanized Steel Frame: Single-truss frame with 14 main arches at 6.56' (2 m) spacing and Ø42 × 2 mm truss tube
Fire-Retardant Fabric: Water- and UV-resistant 500g PVC; a tested sample met DIN 4102-1 Class B2
Snow and Wind Rated: Rated for a 33.4 psf (1.6 kN/m²) snow load and 6.3 psf (0.3 kN/m²) wind load
Large Door Opening: 11.5' × 11.5' (3.51 × 3.51 m) rope pull-up door for drive-in access
Load Tested: Test sample held 1,507 lb (2.28 kPa) for 30 minutes without damage
Long Service Life: Tarp and frame lifespan of 7–10 years with proper care

Overall Size (W × L × H)	30' × 85' × 15' (9.15 × 26 × 4.5 m)
Peak Height	15' (4.5 m)
Floor Area	2550 ft² (237 m²)
Truss Spacing	6.56' (2 m)
Truss Tube	Ø42 × 2 mm
Purlin Tube	Ø40 × 1.5 mm
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Door Size (W × H)	11.5' × 11.5' (3.51 × 3.51 m)
Door Type	Rope Pullup Door
Snow Load	1.6 kN/m² (33.4 psf)
Wind Load	0.3 kN/m² (6.3 psf)
Package Size	115 × 29 × 44 in
Shipping Weight	3,080 lbs (1,397 kg)
Tarp / Frame Lifespan	7-10 years*
