2200lbs Counterbalanced Electric Stacker
Regular price
$10,812.00
Couldn't load pickup availability

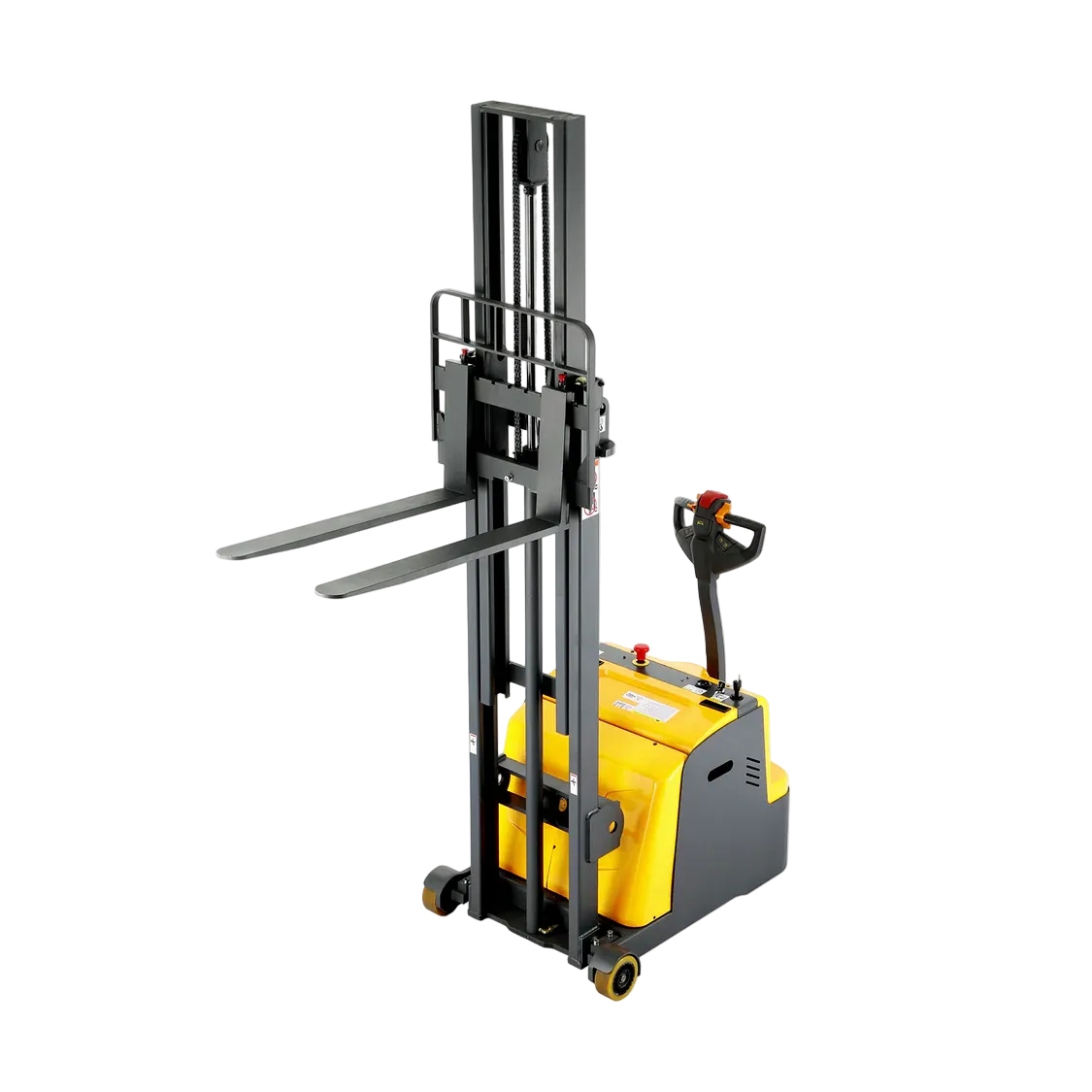

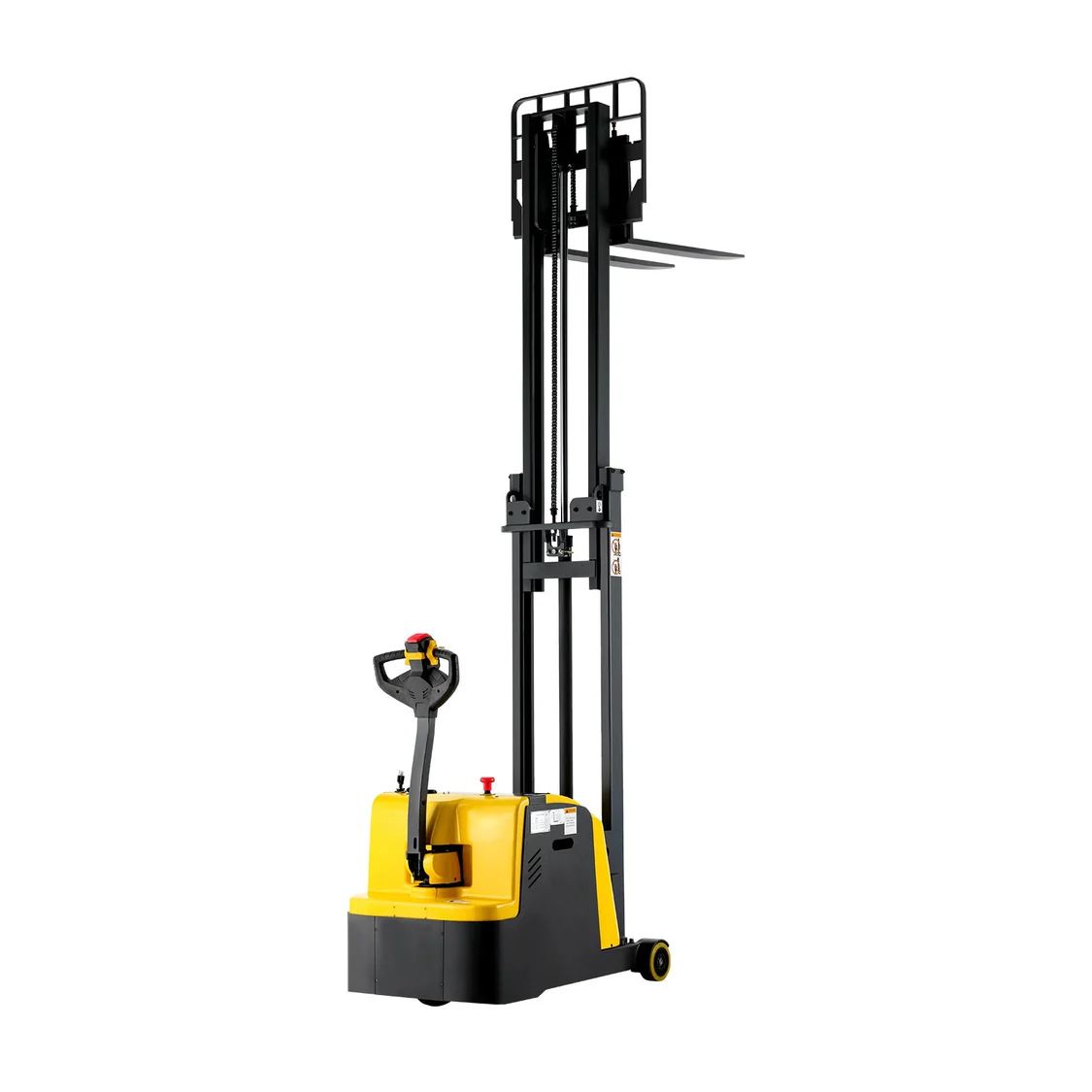

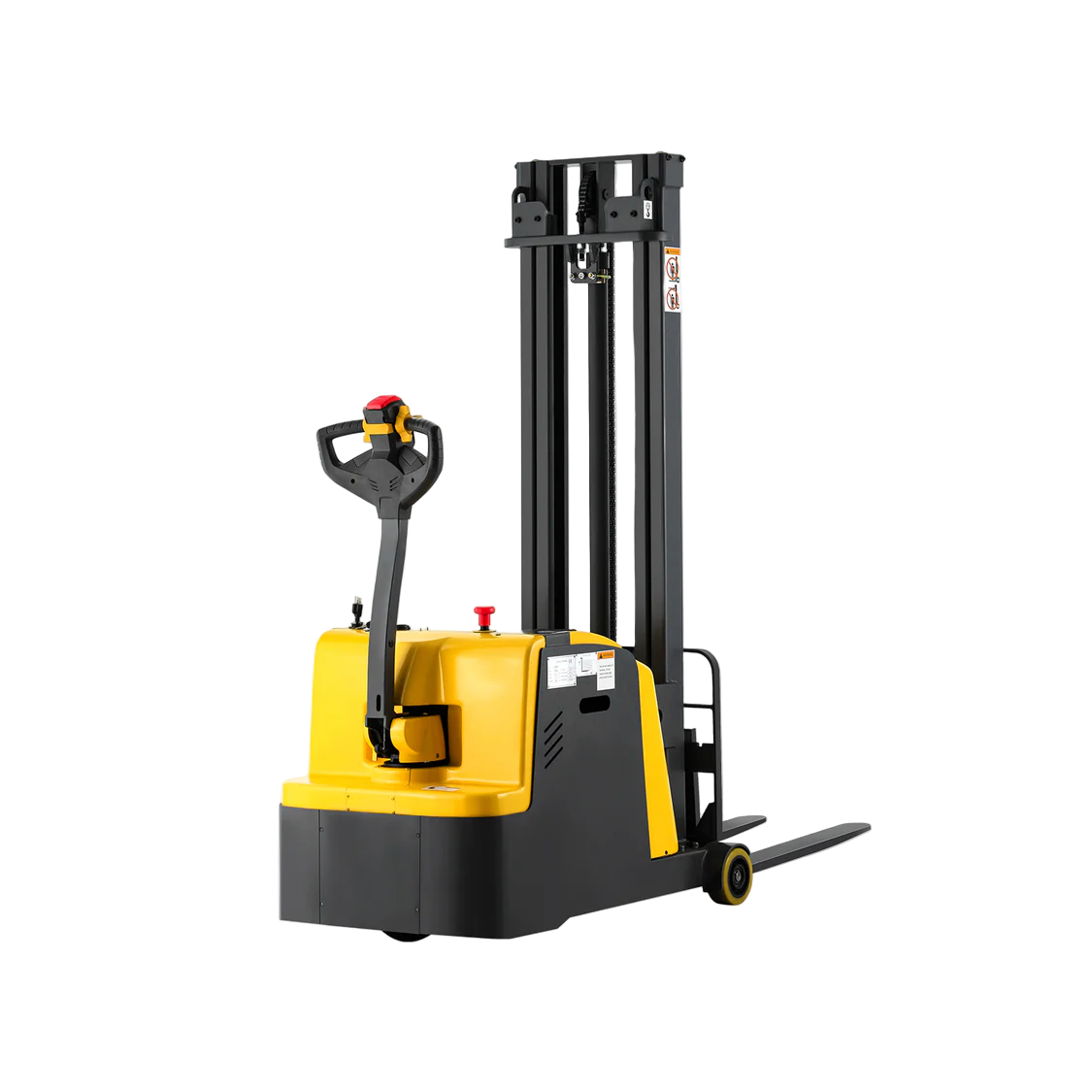

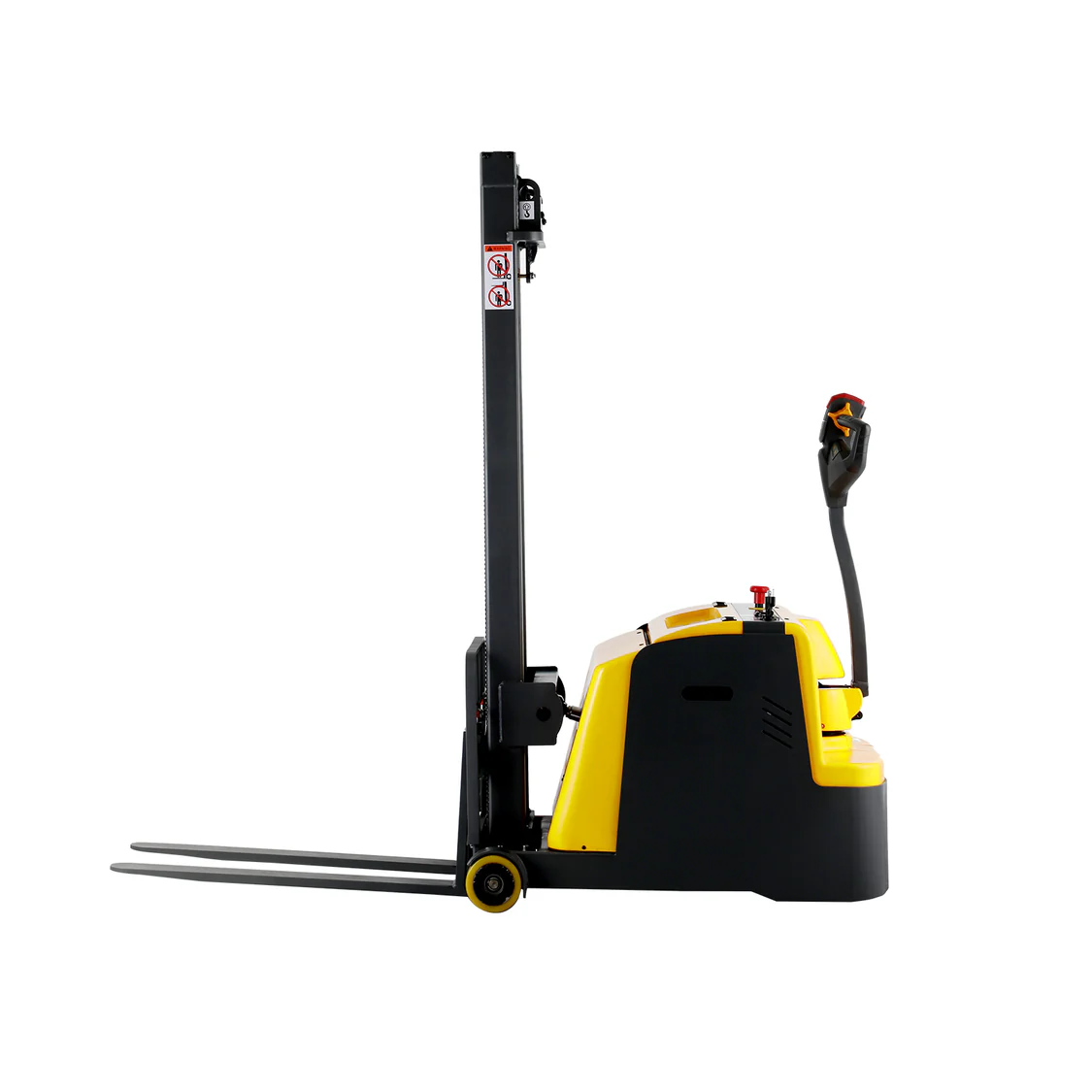

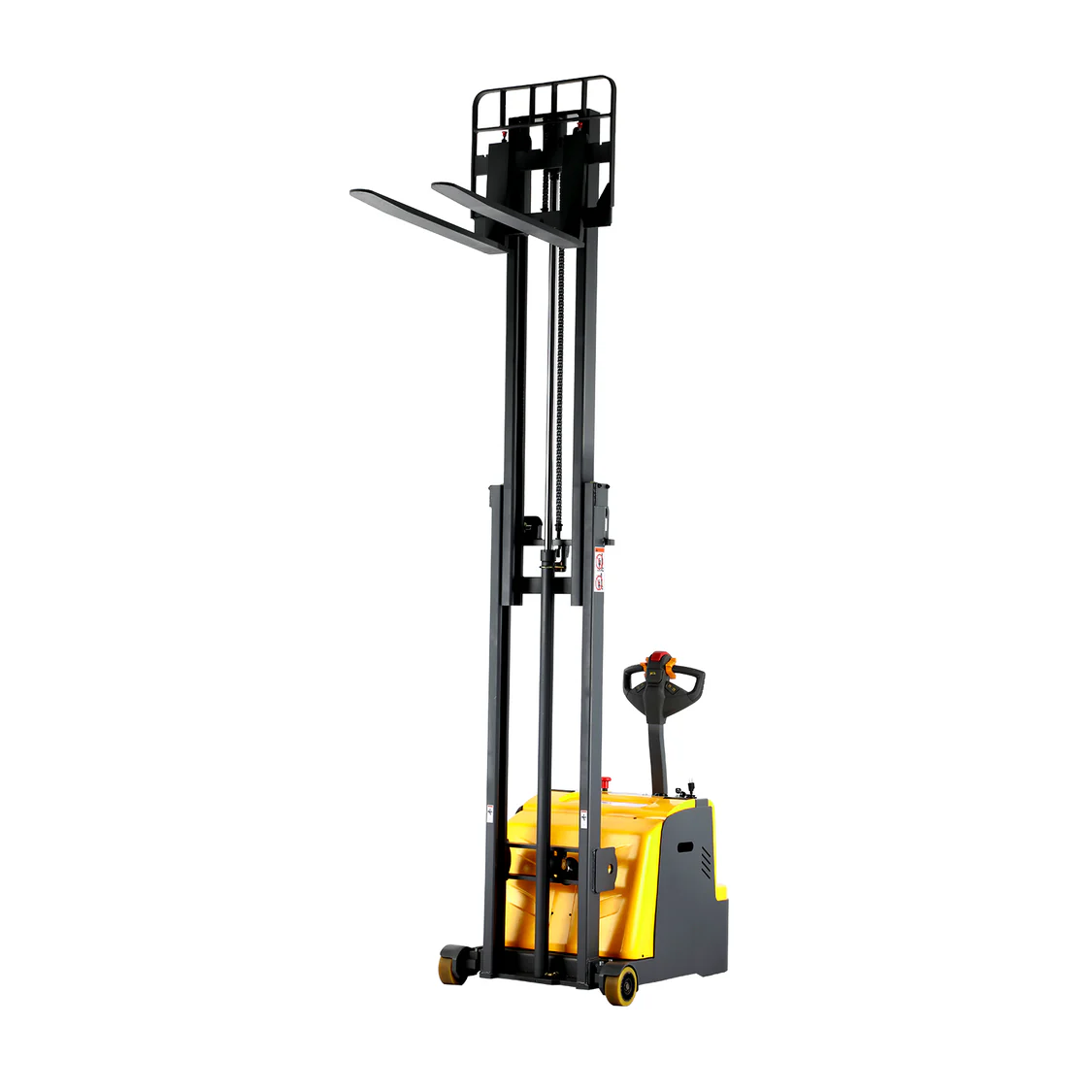

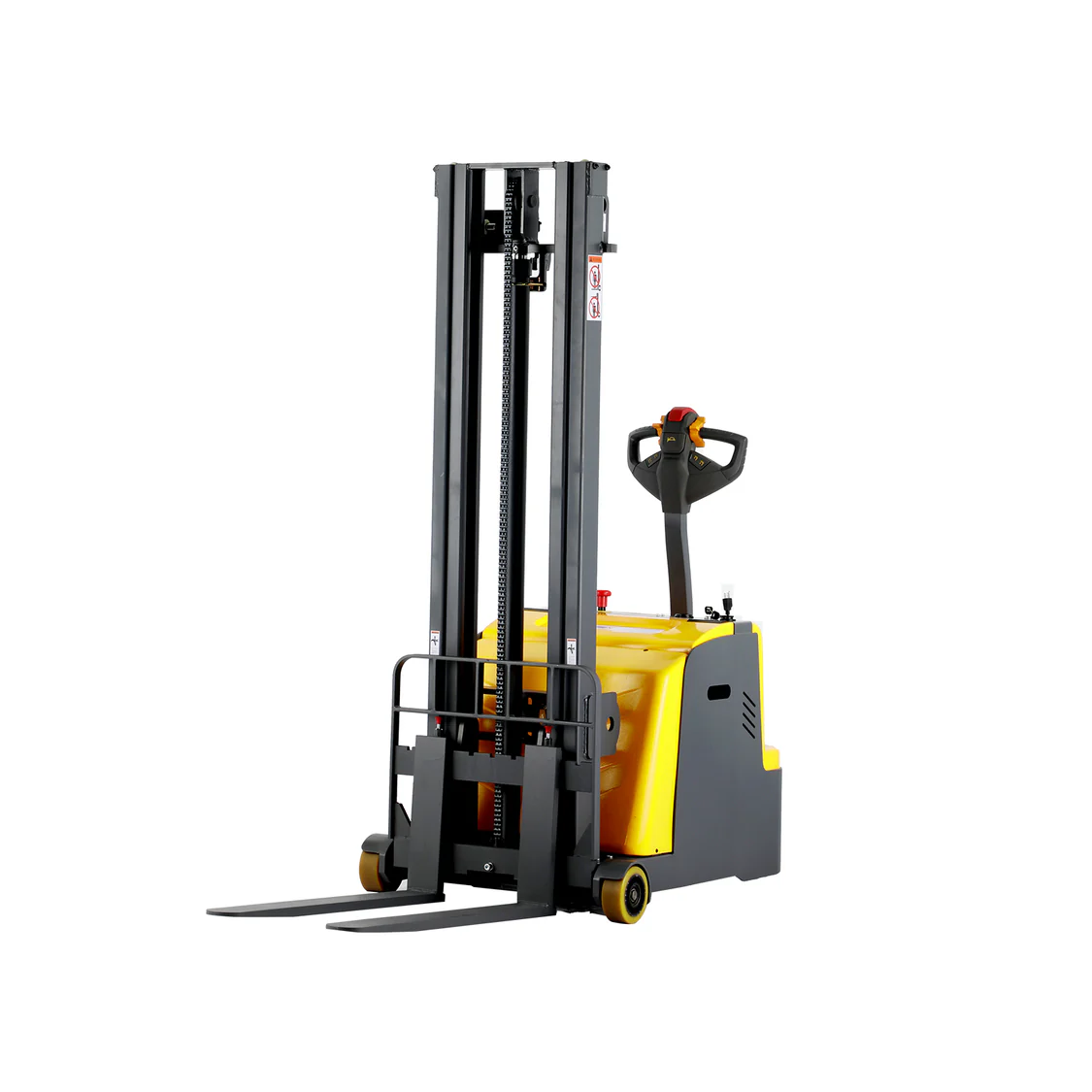

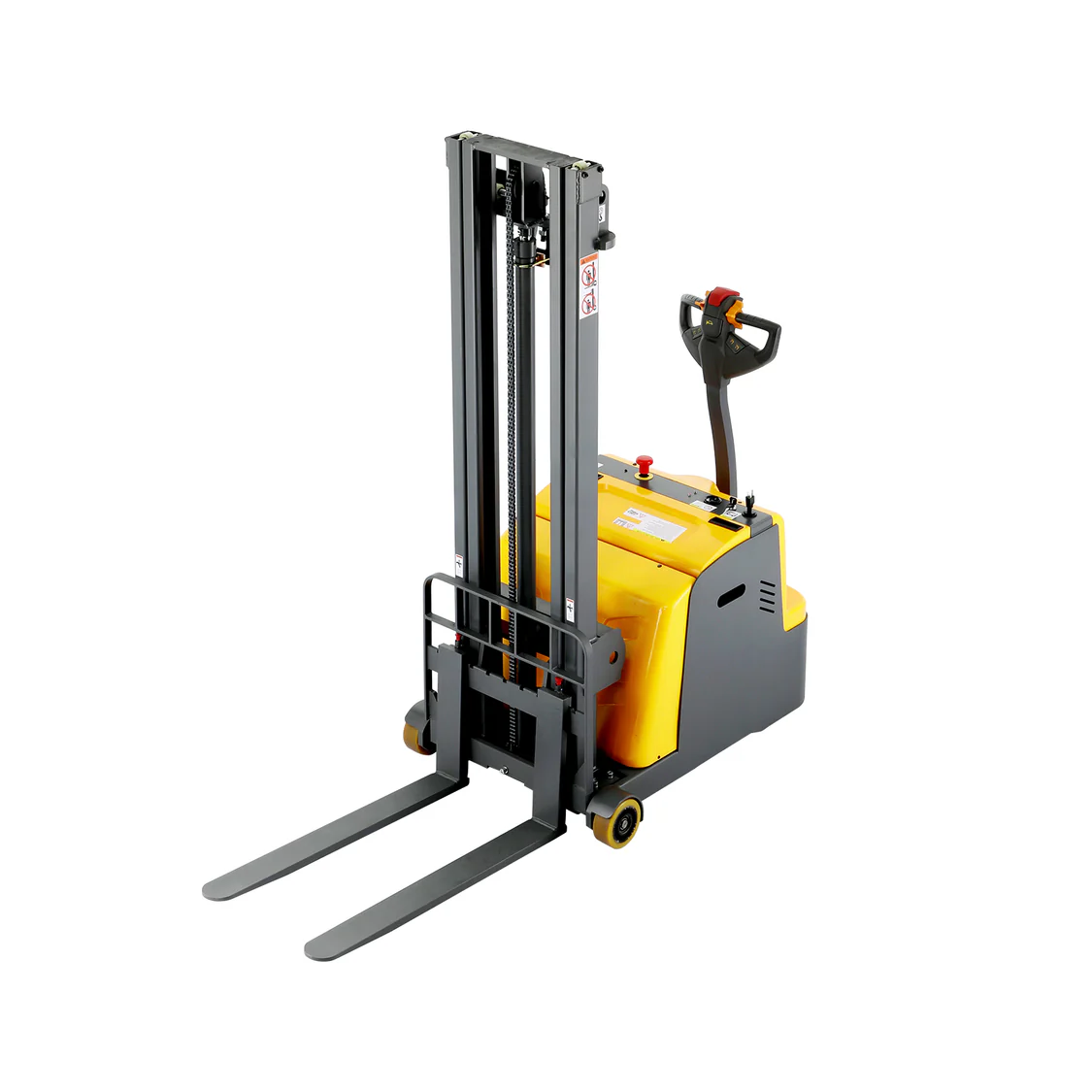

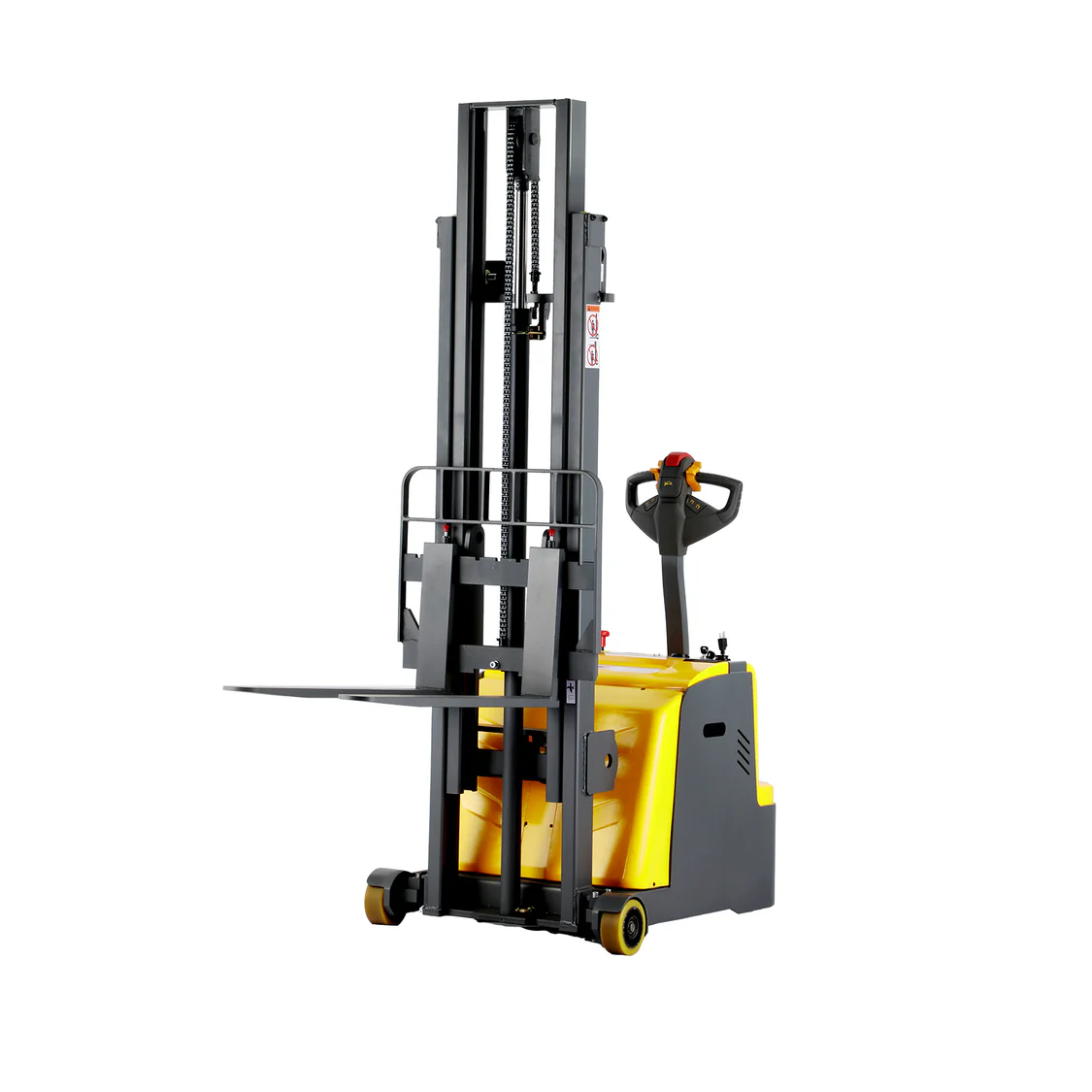

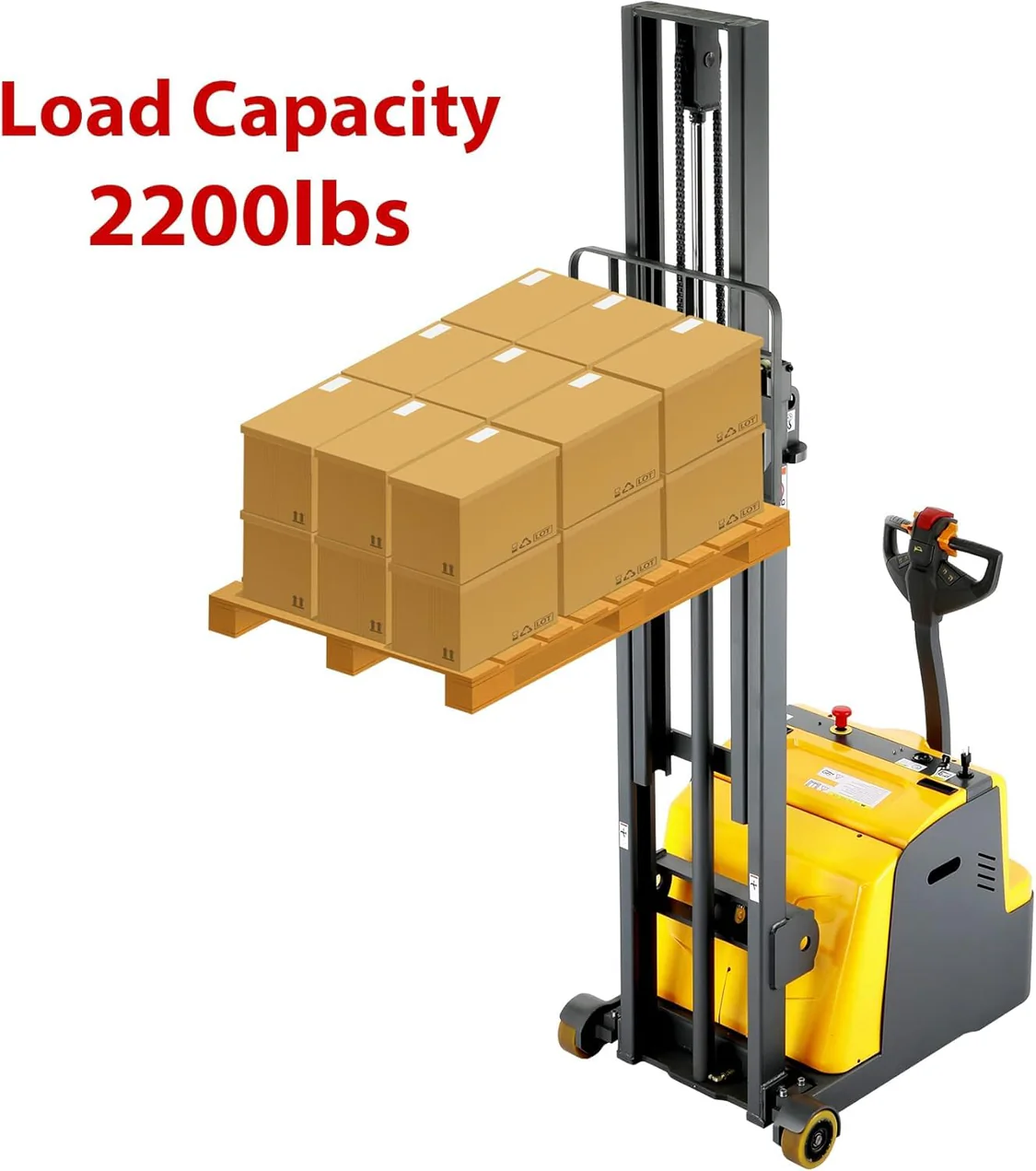

The CPD10W-118 Counterbalanced Electric Stacker is a compact and powerful solution designed for efficient material handling in tight warehouse environments. With a robust lifting capacity of 2,200 lbs and a maximum lift height of 118 inches, this stacker combines performance, safety, and ease of maintenance.
The CPD10W-118 Counterbalanced Electric Stacker is a compact and powerful solution designed for efficient material handling in tight warehouse environments. With a robust lifting capacity of 2,200 lbs and a maximum lift height of 118 inches, this stacker combines performance, safety, and ease of maintenance.
| Item | Code/Unit | Value |
|---|---|---|
| Drive | - | Electric |
| Operator type | - | Pedestrian |
| Rated capacity | Q (kg) | 1500 |
| Load center distance | c (mm) | 500 |
| Load distance, center of drive axle to fork | x (mm) | 140 |
| Wheelbase | y (mm) | 1530 |
| Service weight | kg | 1530 |
| Axle loading, laden front/rear | kg | 380/2650 |
| Axle loading, unladen front/rear | kg | 970/560 |
| Tyres | - | Polyurethane |
| Tyre size, front | - | Φ195×70 |
| Tyre size, rear | - | Φ150×73 |
| Additional wheels | - | Φ114×60 |
| Wheels, number front/rear | - | 1×+2/2 |
| Tread, front | b10 (mm) | 796 |
| Tread, rear | b11 (mm) | 508 |

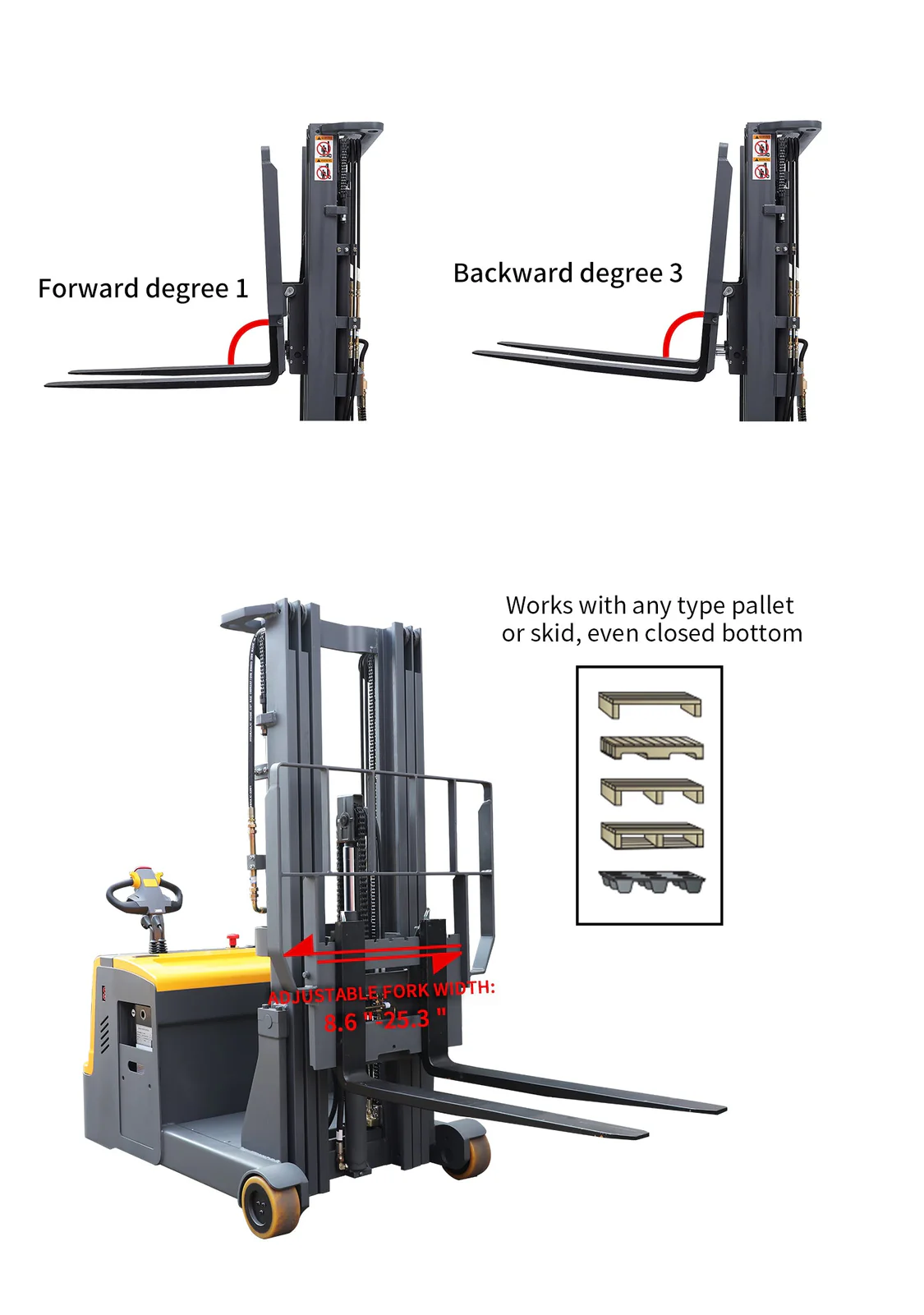

| Tilt of mast/fork carriage forward/backward | a/b (°) | 1/3 |

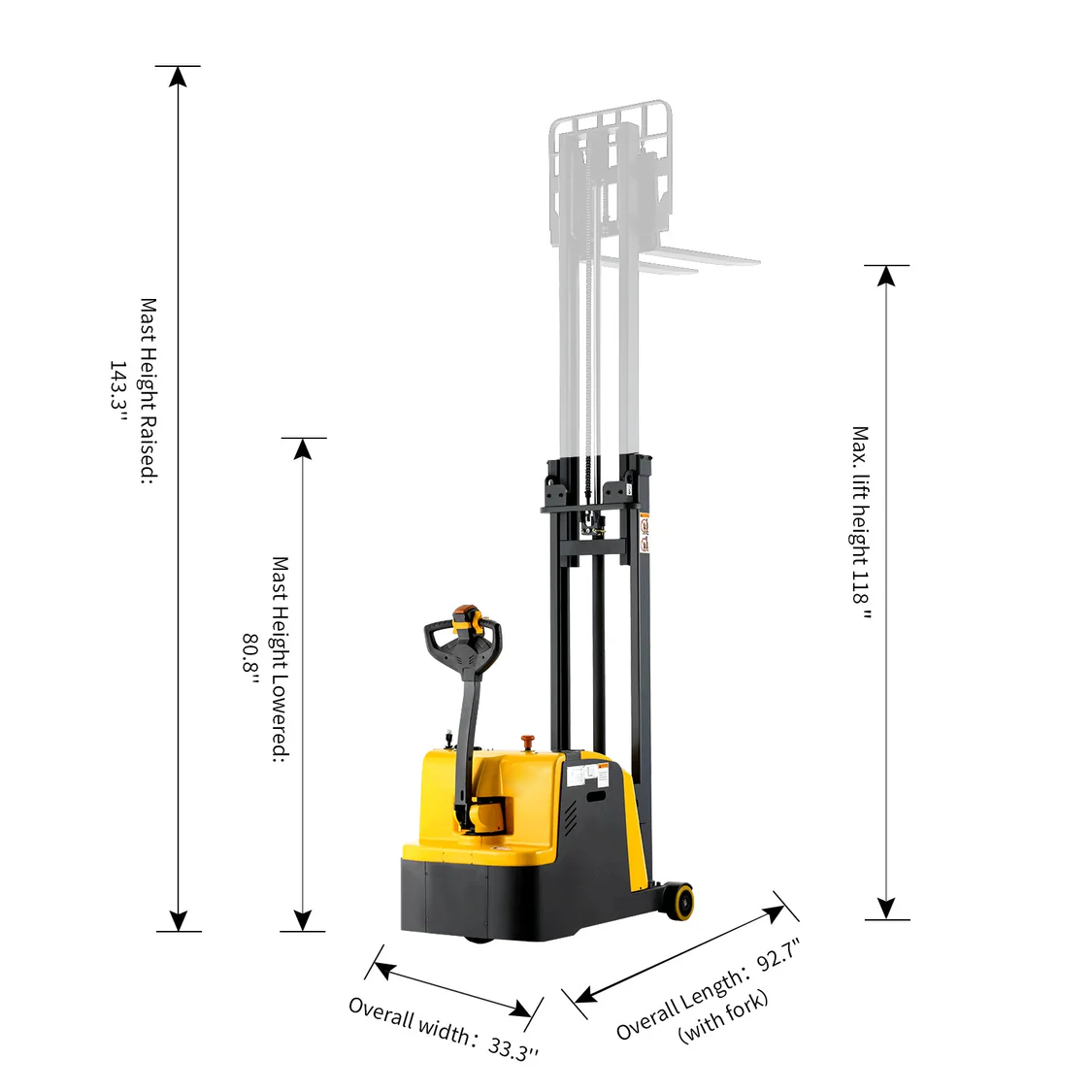

| Height, mast lowered | h1 (mm) | 2065/1565/1815/2065 |
| Lift height | h3 (mm) | 1600/2000/2500/3000 |
| Height, mast extended | h4 (mm) | 2310/2710/3210/3710 |
| Height drawbar in driving position min./max. | h14 (mm) | 670/1300 |
| Overall length | l1 (mm) | 2729 |
| Length to face of forks | l2 (mm) | 1779 |
| Overall width | b1/b2 (mm) | 878 |

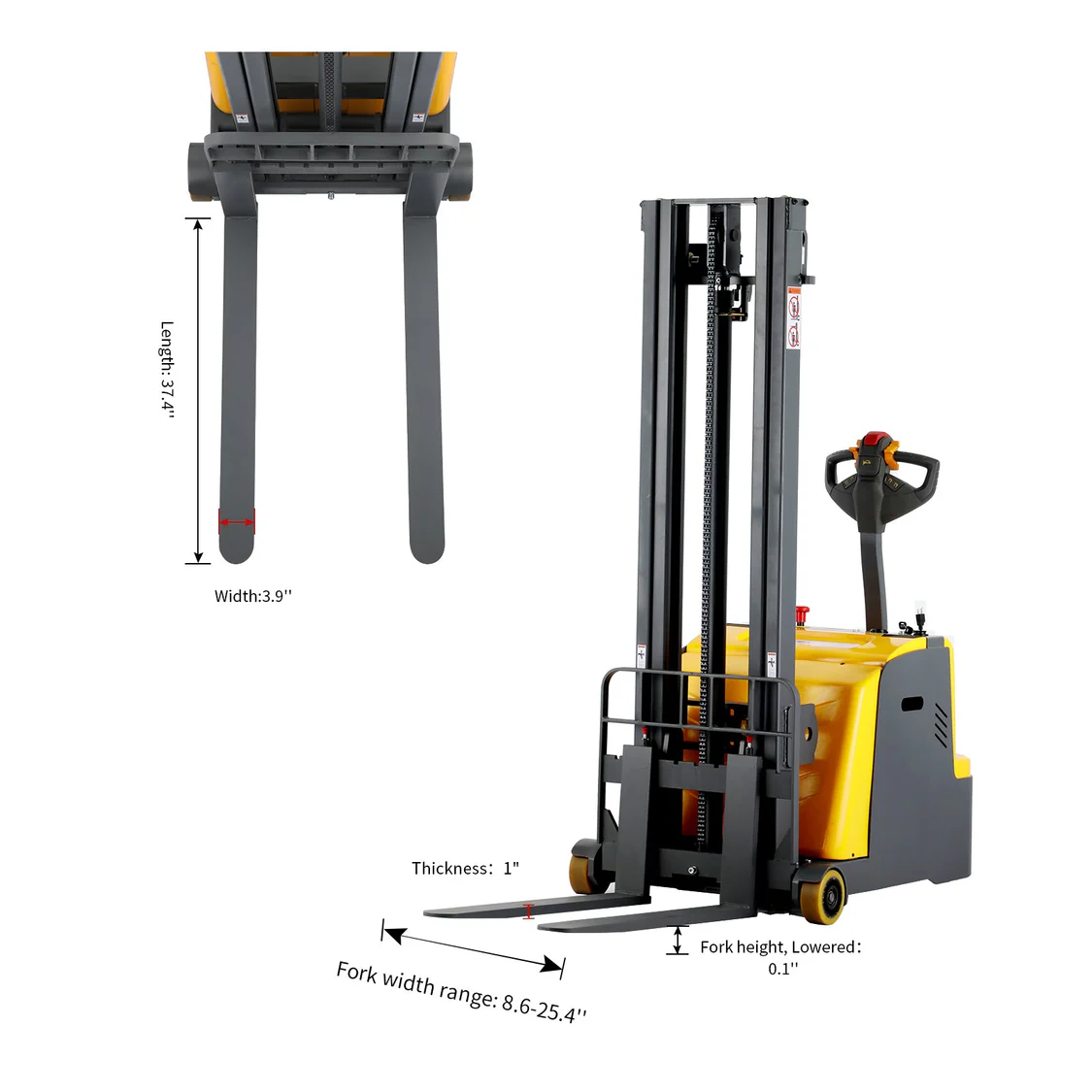

| Fork dimensions DIN ISO 2331 | s/e/l (mm) | 35/100/950 |
| Ground clearance, center of wheelbase | m2 (mm) | 55 |
| Aisle width for pallets 1000 × 1200 crossways | Ast (mm) | 3100 |
| Aisle width for pallets 800 × 1200 lengthways | Ast (mm) | 3250 |
| Turning radius | Wa (mm) | 1700 |
| Travel speed, laden/unladen | km/h | 3.5/4.0 |
| Lift speed, laden/unladen | m/s | 0.08/0.12 |
| Lowering speed, laden/unladen | m/s | 0.12/0.10 |
| Max. gradeability, laden/unladen | % | 5/10 |
| Service brake | - | Electromagnetic |
| Drive motor rating S2 60 min | kW | 0.75 (AC) |
| Lift motor rating at S3 15% | kW | 2.2 (DC) |

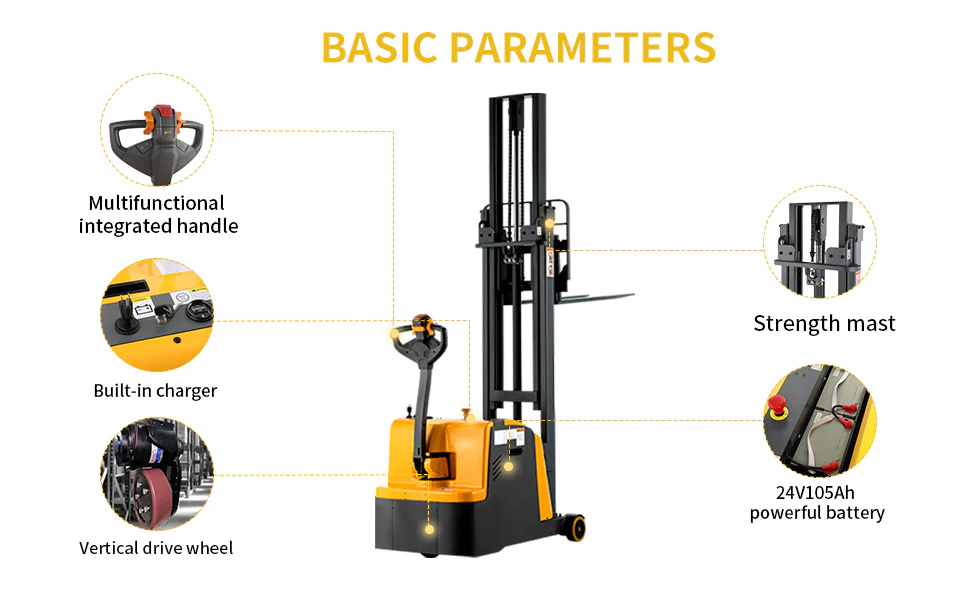

| Battery voltage/nominal capacity | V/Ah | 24/125 |
| Battery weight | kg | 60.8 |
| Sound pressure level at the driver’s seat | dB (A) | 65 |
| Package Dimensions | Package Weight |
|---|
